Home > Products > SUK series terminal blocks > SUK-50 Phoenix Contact Electrical Connector Terminal Block
SUK-50 Phoenix Contact Electrical Connector Terminal Block
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sipun | |
| Model Number | SUK-50 | Type | Screw Terminal |
Product Description
SUK-50 phoenix contact electrical connector terminal block
Descruotion:
1.General specifications SUK-50 terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 16-50mm, flexibility wire : 25-50mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-50 |

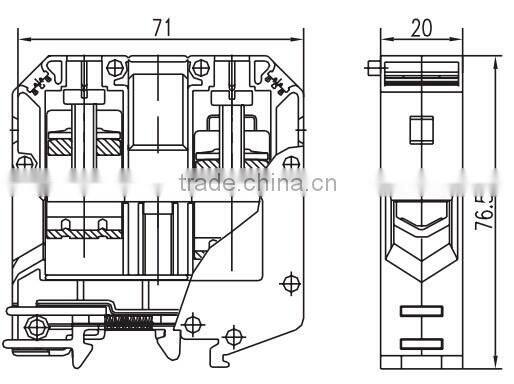

| T/W/H(mm) | 20*71*76.5 |
| Clamping screw | M6 |
| Torque | 6-8NM |
| Stripping Length | 24mm |
| Rated Voltage | 1000V |
| Reted Current | 150A |
| Cross Section | 50mm2 |
| Wire cross section, solid core | 16-50mm2 |
| Wire cross section, stranded | 25-50mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

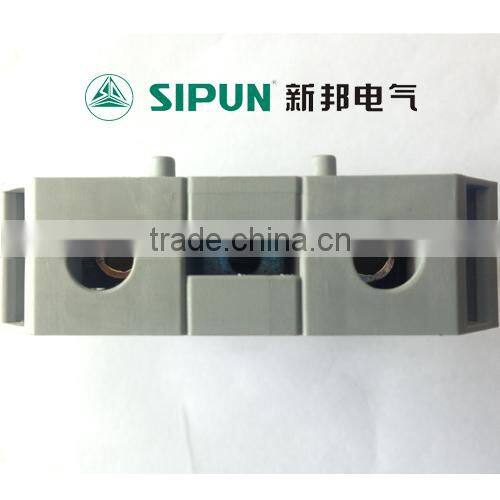

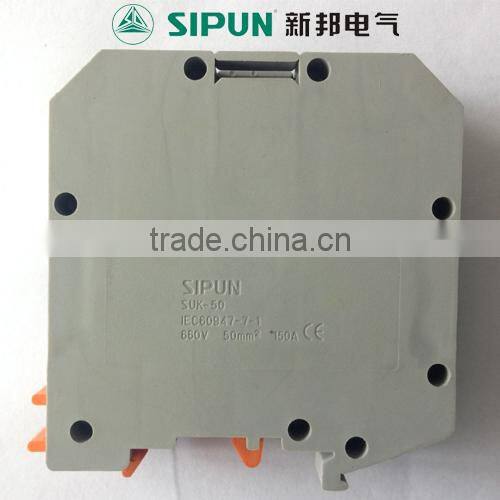

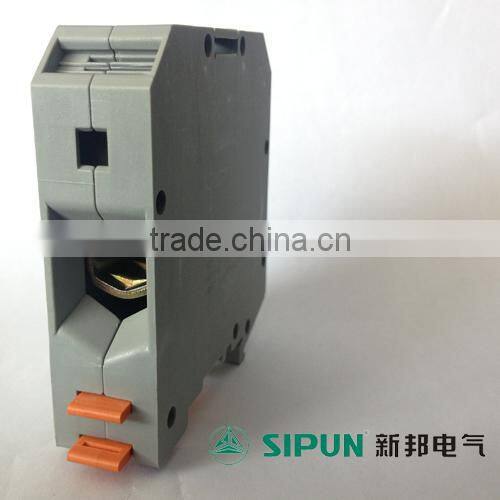

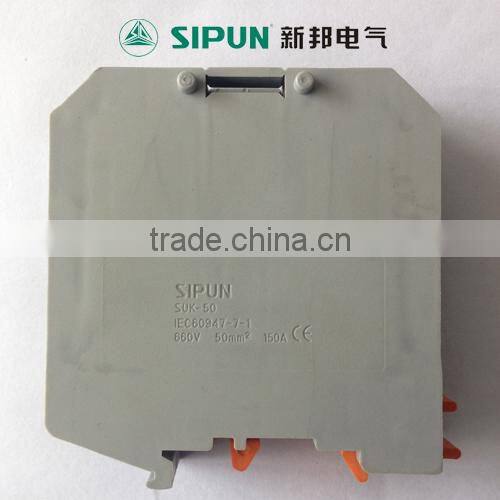

Product shows ( taken in kind ):
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
