Home > Products > SUK series terminal blocks > Phoenix Contact SUK-2.5 Din Rail Terminal Block
Phoenix Contact SUK-2.5 Din Rail Terminal Block
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sipun | |
| Model Number | SUK-2.5 | Type | Screw Terminal |
Product Description
phoenix contact SUK-2.5 din rail terminal block
Descruotion:
1.General specifications SUK-2.5 terminal blocks Compliance with international standards : IEC60947-7-1 and VDE.
2.Wire range : rigidity wire : 0.2-0.4mm, flexibility wire : 0.2-2.5mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-2.5 |

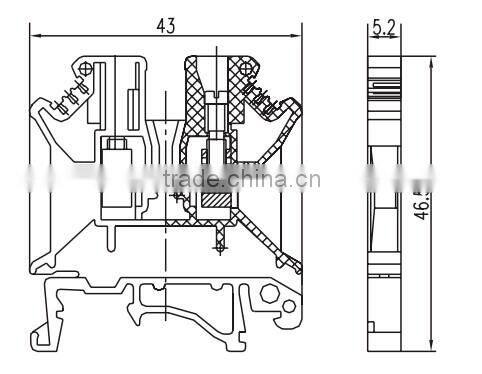

| T/W/H(mm) | 5.2*43*46.5 |
| Clamping screw | M3 |
| Torque | 0.5-0.8NM |
| Stripping Length | 8mm |
| Rated Voltage | 800V |
| Reted Current | 24A |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | VDE/CE/RoHS/EX |

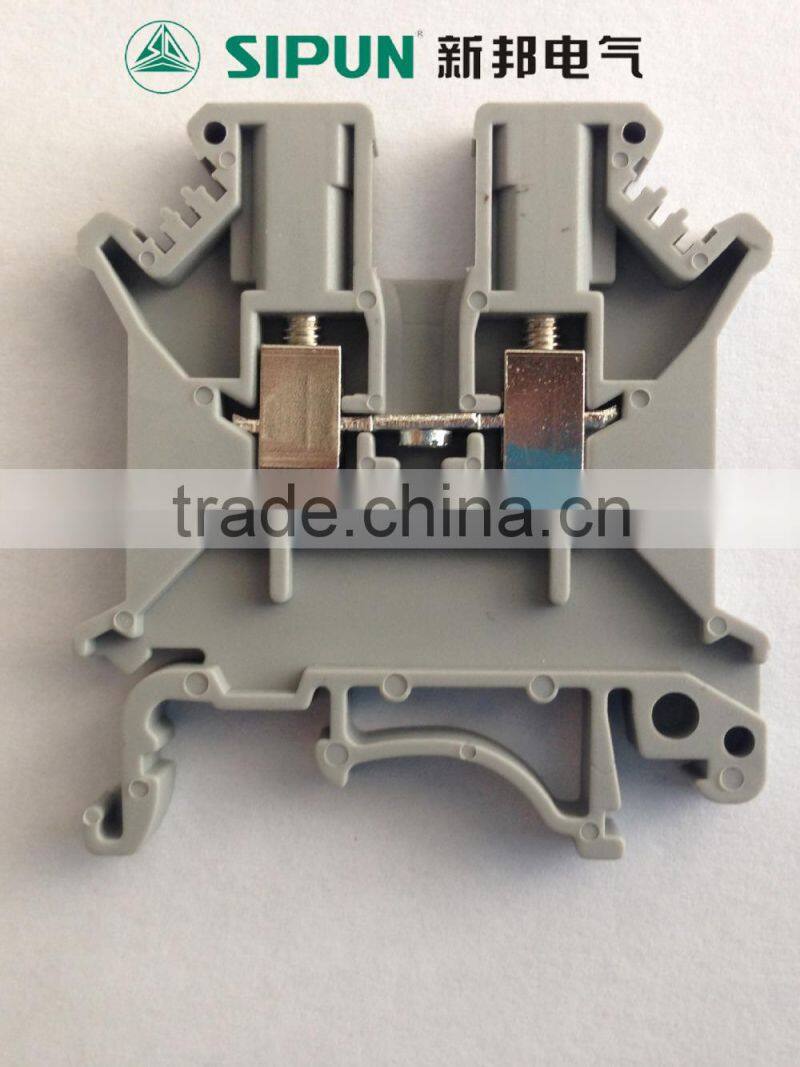

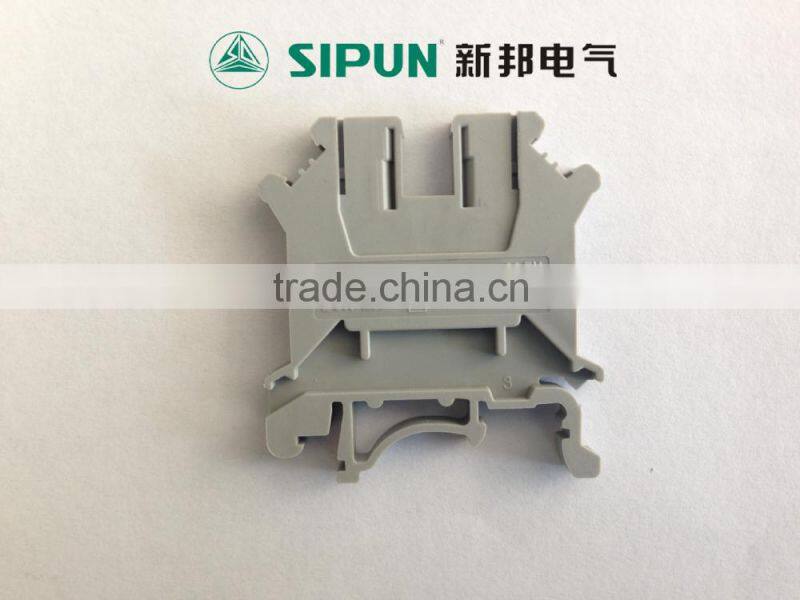

Product shows:
we can customize your color:

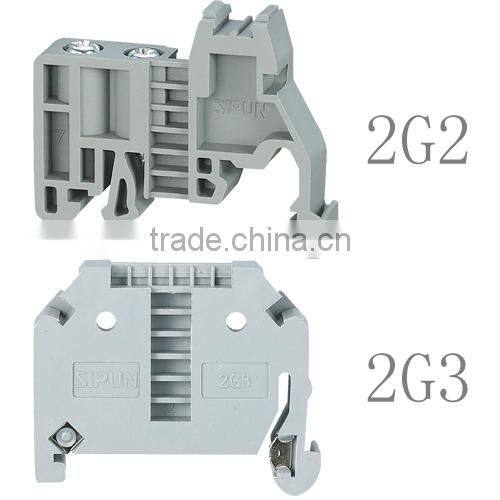

Parts:
Compare with others:
Wiring diagram:
Installation:

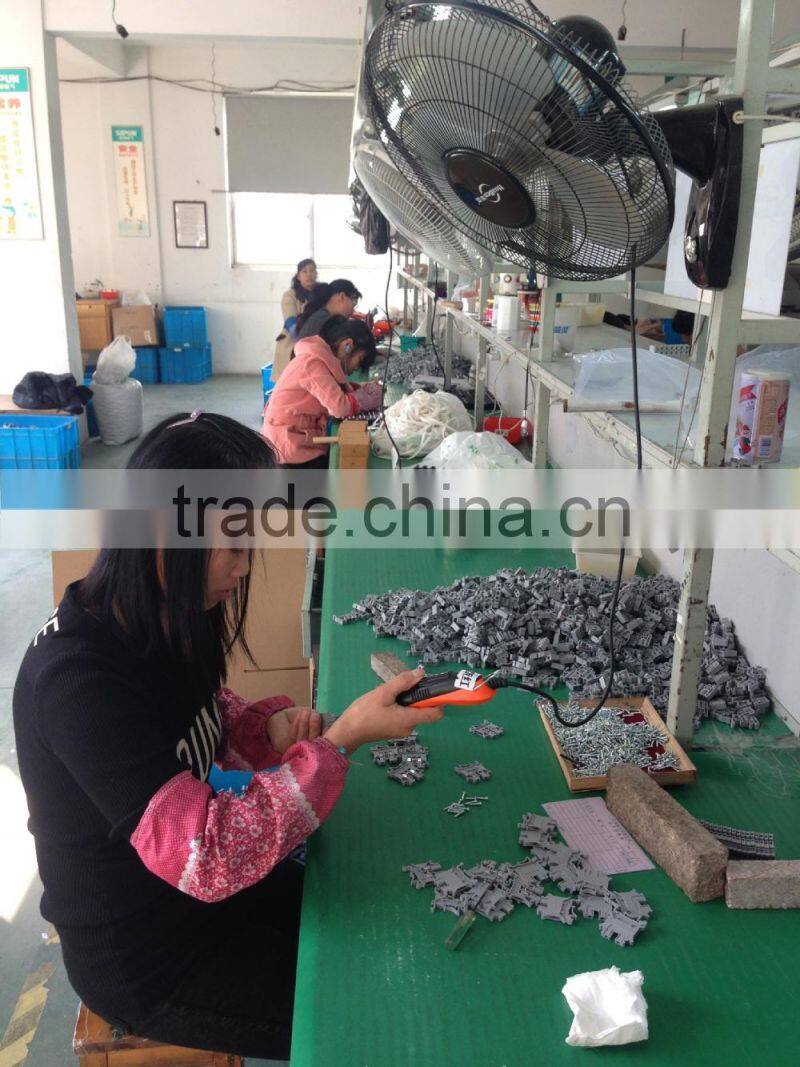

Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
