Automotive relay Wiper Relay for car 12V WM WR19
- Ningbo Shanghai
- T/T Credit Card
You May Like
-
Automotive relays auto relay glow plug relay 12V 24V 80A GCU782
-
Automotive relays for horn with 2 fuse 12V 30A WM688
-
Subminiature Relay 6V 5A 10A of PCB type JZC11FA
-
Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)
-
Automotive Relays 4 pin 5 pin mini relay 12V 24V 40A WM630
-
Hot selling start relay 12V 200A with great price
Product Details
| Voltage | Other, 12V,24V | Rated Current | Other | |
| Car Make | Car | Place of Origin | Zhejiang, China | |
| Brand Name | SM | Model Number | WM WR19 | |
| Warranty | 1 Years |
Product Description
P1 Features
1. Miniature;
2. Terminal types as inserting;
3. Surface mount advanced technology;
4. Suitable for automobile wiper.
P2 Ordering Information
WM WR19 | - 12 | - M | - B |
|
|
|
1 | 2 | 3 | 4 |
|
|
|
1 Part number:WM WR19(L*W*H:30*30*39); WM WR1930(L*W*H:30*30*30) 2 Rated Voltage(VDC):12: 12V; 24: 24V 3 Cover:M: Metal Bracket;Nil: No Bracket
| ||||||
P3 Contact Data
Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Load (W) | Dimensions (mm) |
WM WR19-12 | 12 | 10~15 | 50 | 30×30×39 |
WM WR19-24 | 24 | 20~30 | 50 | 30×30×39 |
WM WR1930-12 | 12 | 10~15 | 50 | 30×30×30 |
WM WR1930-24 | 24 | 20~30 | 50 | 30×30×30 |
P4 Operation condition
Cleaning Wiper Time | 4~6s |
Intermittent Wiper Time | 4~6s |
Electrical durability | 1×105@ 50W |
Voltage drop | ≤150mV (5A) |
Shock resistance | 196m/s2 |
Vibration resistance | 10~200Hz 49m/s2 |
Terminals strength | 100N |
Ambient Temperature | -40℃~85℃ |
|
|

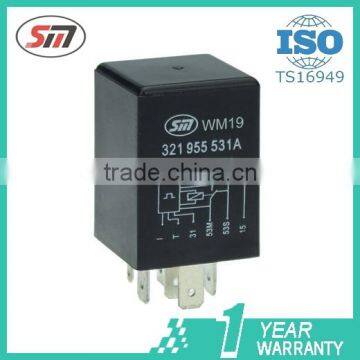

P5 Wiper Relay Photo
| |
P6 Layout (Bottom views, Unit: mm)
Dimensions / Wiring diagram (Bottom views) |
|
P7 Application Wiring Diagram
M1:Cleaning pump,M2:Wiper motor,K2:Combined switch,K1:Cleaning switch
|
P8 Packing
20 pcs / inner box, 500 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
