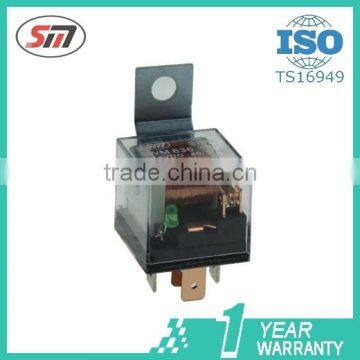

Automotive Relays small relay 12V 40A 60A WM636
- 2000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card
You May Like
-
Automotive relays auto relay 12V 24V 40A 4 pin WM734
-
Automotive Relays small relay 12V 24V 40A 60A 4 PIN 5 PIN WM633
-
General relay mini electrical relay 12V 24V 10A 250VAC NT74(HF118F)
-
Power relay mini electrical relay 12V 24V 8A 10A 250VAC NT75(HF115)
-
Automotive Relays 4 pin 5pin 12V 24V 60A 40AWM634-Y
-
Automotive relays miniature relay 4 pin 5pin 12V 40A 24V WM680
Product Details
| Voltage | Other, 12V,24V | Rated Current | Other, 60A/40A | |
| Car Make | General | Place of Origin | Zhejiang, China | |
| Brand Name | SM | Model Number | WM636 | |
| Warranty | 1 Years |
Product Description
P1 Features
1. Miniature;
2. Contact load capacity up to 60A;
3. Terminal types as inserting;
4. Suitable for automobile;
5. With LED light;
6. transparent cover;
7. Sealed type available.
P2 Ordering Information
WM636 | - 12 | - A | - M | R | L | S | 60 |
|
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
1 Part number:WM636 2 Coil rated Voltage(VDC):6: 6V;12: 12V;24: 24V;48: 48V 3 Contact Form: A: 1A;B: 1B;C: 1C;U: 1U;2A: 2A 4 Cover:M: Metal Bracket;Nil: No Bracket
| 5 Coil transient suppression: D: with diode.; R: with resistance; Nil: standard 6 LED light:L: with LED light; Nil: without LED light 7 Enclosure:S: Sealed;Nil: unsealed 8 Contact load: 60:60A;40:40A | |||||||
P3 Contact Data
Contact Form | 1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)),1U(SPSTNODM),2A | ||||
Contact Material | Ag Alloy | ||||
Contact Rating (resistive) |
| 1A | 1B | 1C | 2A,1U |
60 | 60A/14VDC | 40A/14VDC | NO: 60A/14VDC NC: 40A/14VDC | 2×30A/14VDC | |
40 | 40A/14VDC | 30A/14VDC | NO: 40A/14VDC NC: 30A/14VDC | 2×20A/14VDC | |
Max. Switching Voltage | 75VDC | ||||
Max. Switching Current | 60A/40A | ||||
Max. Switching Power | 840W/560W | ||||
Contact Resistance or Voltage drop | ≤100mΩ | ||||
Electrical Life | 1×105 cycles | ||||
Mechanical Life | 1×107 cycles | ||||
P4 Operation condition
Insulation Resistance | 100MΩ Min.(at 500VDC) | |
Dielectric Strength | Between Contacts | 50Hz 500VAC / 1 minute |
Between Coil and Contacts | 50Hz 750VAC / 1 minute | |
Terminals strength | 100N 50N( for PCB type) | |
Ambient Temperature | -40℃ ~ +85℃ | |
| Relative Humidity | 85% (at 40℃) | |
P5 Relay Photo
| |
P6 Terminal Layout (Bottom views)
|
P7 Wiring diagram (Bottom views)
|
P8 Packing
20 pcs / inner box, 20 inner box / carton, 400 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
