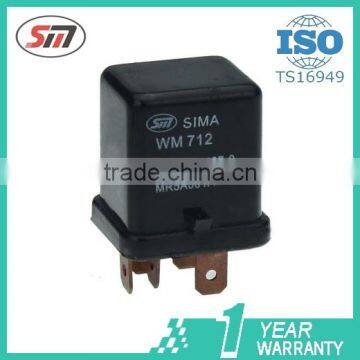

Automotive relays mini relay12V 30A 24V 4 pin WM712
- Ningbo Shanghai
- T/T Credit Card
You May Like
Product Details
| Voltage | Other, 6V,12V,24V | Rated Current | Other, 30A | |
| OE NO. | 8-94116-390-0 | Car Make | ISUZU | |
| Place of Origin | Zhejiang, China | Brand Name | SM | |
| Model Number | WM712 | Warranty | 1 Years |
Product Description
P1 Features
1. Miniature;
2. Contact load capacity up to 30A;
3. Terminal types as inserting;
4. Suitable for automobile system and automobile auxiliary etc.
P2 Ordering Information
WM714 | - 12 | - A |
|
|
| |
1 | 2 | 3 |
|
|
| |
1 Part number:WM710 2 Coil rated Voltage(VDC):6: 6V;12: 12V;24: 24V 3 Contact Form: A: 1A | ||||||
P3 Contact Data
Contact Form | 1A(SPSTNO) |
Contact Material | Ag Alloy |
Contact Rating (resistive) | 1A |
30A/14VDC | |
Max. Switching Voltage | 75VDC |
Max. Switching Current | 30A |
Max. Switching Power | 420W |
Contact Resistance or Voltage drop | ≤100mΩ |
Electrical Life | 1×105 cycles |
Mechanical Life | 1×107cycles |
P4 Operation condition
Insulation Resistance | 100MΩ Min.(at 500VDC) | |
Dielectric Strength | Between Contacts | 50Hz 500VAC / 1 minute |
Between Coil and Contacts | 50Hz 750VAC / 1 minute | |
Terminals strength | 10N | |
Ambient Temperature | -40℃ ~ +85℃ | |
| Relative Humidity | 85% (at 40℃) | |
P5 Relay Photo
P6 Terminal Layout (Bottom views)
|
P7 Wiring diagram (Bottom views)
| |
P8 Packing
25 pcs / inner box, 500 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
