Automotive relays auto relay 12V 24V 40A 4 pin WM734
- 3000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card
You May Like
-
Automotive Relays small relay 12V 24V 40A 60A 4 PIN 5 PIN WM633
-
General relay mini electrical relay 12V 24V 10A 250VAC NT74(HF118F)
-
Power relay mini electrical relay 12V 24V 8A 10A 250VAC NT75(HF115)
-
Automotive Relays 4 pin 5pin 12V 24V 60A 40AWM634-Y
-
Automotive relays miniature relay 4 pin 5pin 12V 40A 24V WM680
-
Automotive relays miniature relay 12V 30A 5 pin WM716
Product Details
| Voltage | Other, 6V,12V,24V | Rated Current | 40A | |
| Car Make | General | Place of Origin | Zhejiang, China | |
| Brand Name | SM | Model Number | WM734 | |
| Warranty | 1 Years |
Product Description
P1 Features
1. Miniature;
2. Contact load capacity up to 40A;
3. Terminal types as inserting;
4. Suitable for automobile system and automobile auxiliary etc.
P2 Ordering Information
WM734 | - 12 | - A | - R |
|
|
|
1 | 2 | 3 | 4 |
|
|
|
1 Part number:WM734 2 Coil rated Voltage(VDC): 6: 6V;12: 12V;24: 24V;36:36V 3 Contact Form: A: 1A 4 Coil transient suppression:D: with diode; R: with resistance; Nil: standard | ||||||
P3 Contact Data
Contact Form | 1A(SPSTNO) | |
Contact Material | Ag Alloy | |
Contact Rating (resistive) | 1A |
|
40A/14VDC |
| |
Max. Switching Voltage | 75VDC | |
Max. Switching Current | 40 | |
Max. Switching Power | 560W | |
Contact Resistance or Voltage drop | ≤100mΩ | |
Electrical Life | 1×105 cycles | |
Mechanical Life | 1×107 cycles | |
P4 Operation condition
Insulation Resistance | 100MΩ Min.(at 500VDC) | |
Dielectric Strength | Between Contacts | 50Hz 500VAC / 1 minute |
Between Coil and Contacts | 50Hz 750VAC / 1 minute | |
Terminals strength | 100N | |
Ambient Temperature | -40℃ ~ +85℃ | |
| Relative Humidity | 85% (at 40℃) | |

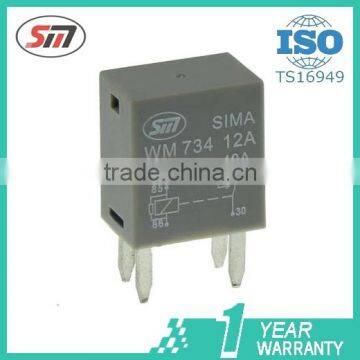

P5 Relay Photo
| |
P6 Terminal Layout (Bottom views)
|
P7 Wiring diagram (Bottom views)
| |
P8 Packing
25 pcs / inner box, 500 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
