Home > Products > Relay > Automotive Relays heavy relay 12V 24V 100A 4 pin 5 pin WM648 Quality Choice
Automotive Relays heavy relay 12V 24V 100A 4 pin 5 pin WM648 Quality Choice
- Ningbo Shanghai
- T/T Credit Card
You May Like
-
Automotive relays miniature relay 4 pin 5pin 12V 35A 24V WM650
-
Automotive relays mini PCB relay 6 pin 7pin12V 40A WM656
-
Automotive relays miniature relay 12V 20A WM660
-
Automotive relays mini relay12V 30A 24V 4 pin WM714
-
Automotive relays miniature relay 12V 24V 60A 4 pin 5 pin WM718
-
Automotive relays miniature relay 4 pin 12V 30A WM720
Product Details
| Voltage | Other, 6V,12V,24V | Rated Current | Other, 100A | |
| Car Make | General | Place of Origin | Zhejiang, China | |
| Brand Name | SM | Model Number | WM648 | |
| Warranty | 1 Years |
Product Description
P1 Features
1.Miniature.
2.Contact load capacity up to 100A.
3.Terminal types as inserting.
4.Suitable for automobile.
P2 Ordering Information
WM648 | - 12 | - A | - R |
|
|
1 | 2 | 3 | 4 |
|
|
1 Part numbe:WM648 2 Coil rated Voltage(VDC):6: 6V;12: 12V;24: 24V 3 Contact Form: A: 1A;B: 1B;C: 1C 4 Coil transient suppression:D: with diode; R: with resistance; Nil: standard | |||||
P3 Contact Data
Contact Form | 1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)) | ||
Contact Material | Ag Alloy | ||
Contact Rating (resistive)
| 1A | 1B | 1C |
100A/14VDC | 80A/14VDC | NO: 100A/14VDC, NC:80A/14VDC | |
Max. Switching Voltage | 75VDC | ||
Max. Switching Current | 100A | ||
Max. Switching Power | 1400W | ||
Contact Resistance or Voltage drop | ≤100mΩ | ||
Electrical Life | 1×105 | ||
Mechanical Life | 1×107 | ||
P4 Operation condition
Insulation Resistance | 100MΩ Min.(at 500VDC) | |
Dielectric Strength | Between Contacts | 50Hz 500VAC / 1 minute |
Between Coil and Contacts | 50Hz 750VAC / 1 minute | |
Terminals strength | 100N 50N( for PCB type) | |
Ambient Temperature | -40℃ ~ +85℃ | |
| Relative Humidity | 85% (at 40℃) | |

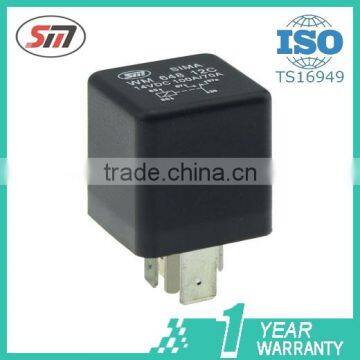

P5 Relay Photo
| |
P6 Terminal Layout (Bottom views)
|
P7 Wiring diagram (Bottom views)
|
P8 Packing
20 pcs / inner box, 100 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
