Automotive Relays 12V 40A WM620
- 2000 Piece / Pieces per Month
- NINBGO SHANGHAI
- T/T Credit Card
You May Like
-
Automotive Relay high power for truck starter relay 100A 200A WM686 Quality Choice
-
Electronic Magnetic Latching Relay 12V 24V 120A WM830
-
Auto Delay-On Timer Relays for Release time 12V 40A 5 PINWM YSF010
-
Telecom Relay electric PCB relay WM4078
-
Delay-On Timer Relays for Operate time 12V 40A 5 PINWM YSX010
-
Electronic Magnetic Latching Relay 12V 24V 120A 250VAC WM831
Product Details
Voltage | Other, 12V,24V | Rated Current | 40A | |
OE NO. | JD1912 | Car Make | Car | |
Place of Origin | Zhejiang, China | Brand Name | SM | |
Model Number | WM620 | Warranty | 1 Years |
Product Description
P1 Features
1. Miniature;
2. Contact load capacity up to 40A;
3. Terminal types as inserting;
4. Sealed type available, only for without bracket version.
P2 Ordering Information
WM620 | - 12 | - A | - B | - R | - P | - S |
1 | 2 | 3 | 4 | 5 | 6 | 7 |
1 Part number:WM620 2 Coil rated Voltage(VDC): 6: 6V;12: 12V;24: 24V 3 Contact Form: A: 1A;B: 1B;C: 1C;U: 1U 4 Cover:B: Insulation Bracket;M: Metal Bracket;Nil: No Bracket;S:Shrouded type with Metal Bracket(only plug in type) 5 Coil transient suppression:D: with diode; R: with resistance; Nil: standard 6 Terminals:P: PCB type;Nil: plug in type 7 Enclosure:S: Sealed(only for without bracket version); Nil: unsealed |
P3 Contact Data
Contact Form | 1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)),1U(SPSTNODM) | |||
Contact Material | Ag Alloy | |||
Contact Rating (resistive) | 1A | 1B | 1C | 1U |
40A/14VDC | 30A/14VDC | NO: 40A/14VDC NC: 30A/14VDC | 2×20A/14VDC | |
Max. Switching Voltage | 75VDC | |||
Max. Switching Current | 40A | |||
Max. Switching Power | 560W | |||
Contact Resistance or Voltage drop | ≤100mΩ | |||
Electrical Life | 1×105 cycles | |||
Mechanical Life | 1×107 cycles |
P4 Operation condition
Insulation Resistance | 100MΩ Min.(at 500VDC) | |
Dielectric Strength | Between Contacts | 50Hz 500VAC / 1 minute |
Between Coil and Contacts | 50Hz 750VAC / 1 minute | |
Shock resistance | 147m/s2 11ms | |
Vibration resistance | 10~40Hz double amplitude 1.5mm | |
Terminals strength | 100N 50N( for PCB type) | |
Solderability | 235℃±2℃ 3±0.5s | |
Ambient Temperature | -40℃ ~ +85℃ | |
Relative Humidity | 85% (at 40℃) | |
Weight(Approx.) | 28g, 30g(Insulation Bracket), 31g(Metal Bracket) |
P5 Layout (Bottom views, Unit: mm)

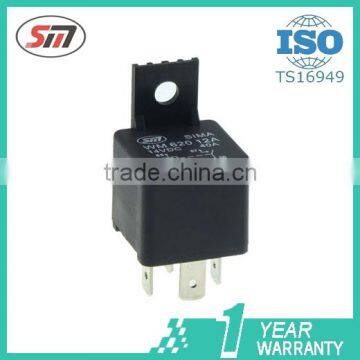

P6 Relay Photo
|
|
P8 Packing
-20pcs/small packing
-100pcs/inner box (5 small packing/inner box)
-400pcs/carton(4 inner box/carton)
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
