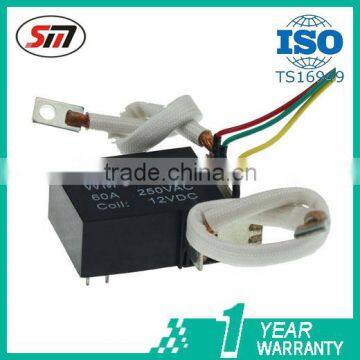

Electronic Magnetic Latching Relay 12V 24V 60A WM832 Quality Choice

WM832

- 12

-A

-S

-R

-A

(XXX)

1

 2

 3

4

5

6

7

1 Part number:WM832

2 Coil rated Voltage(VDC): 6,9,12,24,48

3 Contact form: A: 1A;

4 Enclosure:S: Sealed type;Nil: Dust cover

5 Polarity:R: Negative polarity;Nil: Positive polarity

6 Coil connection method:

A: Type A PCB load (1 coil latching);B: Type B PCB load(1 coil latching);C: Type C PCB load(2 coil latching)

7 Customer special code

Contact Form

1A(SPSTNO)

Contact Material

Silver Alloy

Contact Rating (resistive)

1A

60A /250VAC, 50A/250VAC, 40A/250VAC

Max. Switching Voltage

300VAC

Max. Switching Current

60A

Max. Switching Power

15000VA

Contact Resistance or Voltage drop

≤30mΩ   (at 1A 24VDC)

≤100mV   (40A)

Coil Rated voltage

(VDC)

Coil resistance

Ω±10%

Pickup voltage

VDC(max)

Pulse magnitude

(ms)

Coil power

Operate Time

Release Time

6V

1 coil
latching

36

4.2V

50

1W

≤20 ms

≤20 ms

9V

81

6.3V

50

12V

144

8.4V

50

24V

576

16.8V

50

48V

2304

33.6V

50

6V

2 coil
latching

2×18

4.2V

50

2×2W

≤20 ms

≤20 ms

9V

2×40.5

6.3V

50

12V

2×72

8.4V

50

24V

2×288

16.8V

50

48V

2×1152

33.6V

50

Insulation Resistance

1000MΩ min(at 500VDC)

Dielectric Strength

Between Contacts

50Hz  1500VAC / 1 minute

Between Coil and Contacts

50Hz  4000VAC / 1 minute

Creepage distance

8mm

Shock resistance

Functional 100m/s²;  Survival:1000 m/s²  11ms

Vibration resistance

10~55Hz  double amplitude  1.5mm

Terminals Type

Terminal types as inserting(Plug insert)

Solderability

235℃±2℃   3±0.5s

Ambient Temperature

-40℃ ~ +85℃

Relative Humidity

85% (at 40℃)

Dimensions / Wiring diagram (Bottom views)
