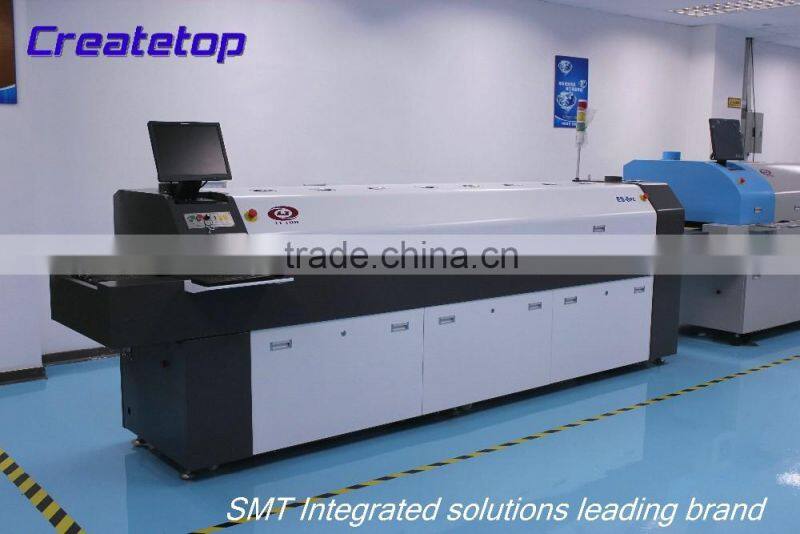

Economical Welding for PCB and Solidification Reflow Soldering Machine for Tin or Red Glue Curing

  The economy of the 8 temperature zone reflow soldering is a high cost, wide adaptability, low daily consumption, low maintenance costs.

Main function configuration:

1: Lenovo digital LCD computer control system PLC of XINJE  *

2: Panasonic high temperatureinverter motor + delta inverter;*

3:350mm lead free high temperature stainless steel mesh belt;

4:accord with J-STD-020C IPC/JEDEC standard;

5: Two channel temperature measuring system Siemens curve;*

6:LT the latest  version of the interface, simple and easy to operate;

7:Taiwan  drive motor + Japan Panasonic speed control;

8:Forced double cross flow fan cooling system.

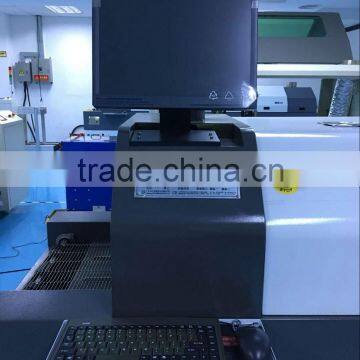

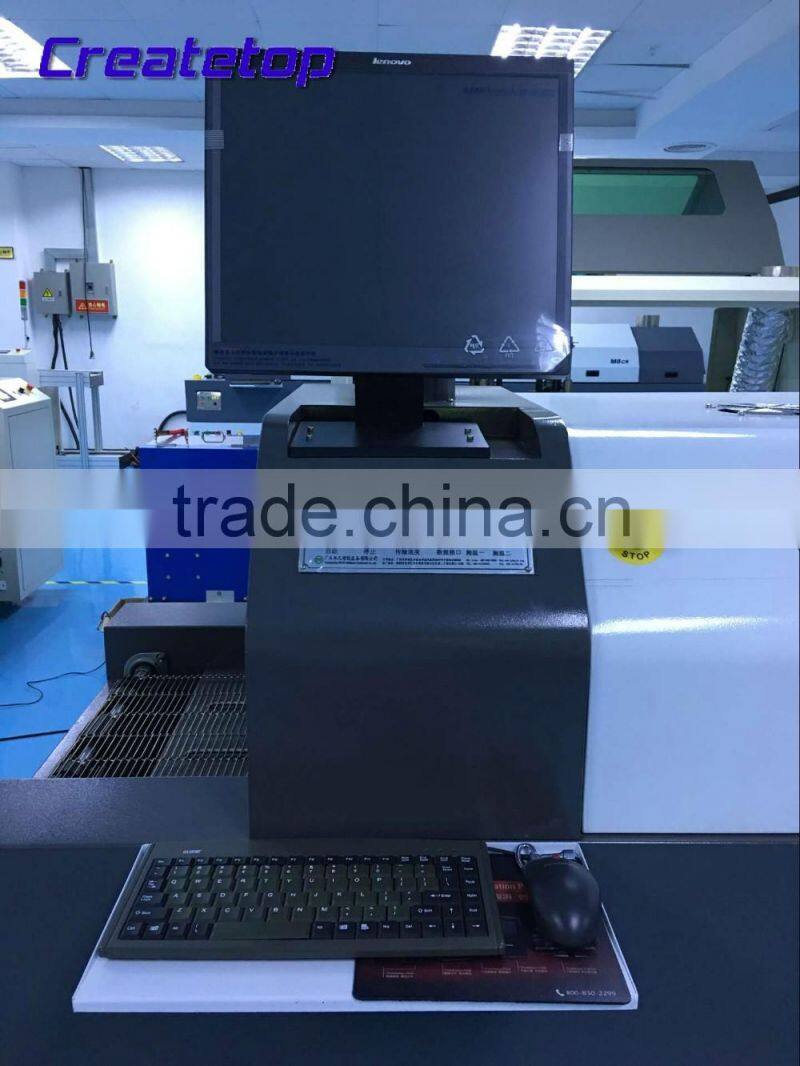

Lenovo digital LCD computer control system PLC of XINJE  *

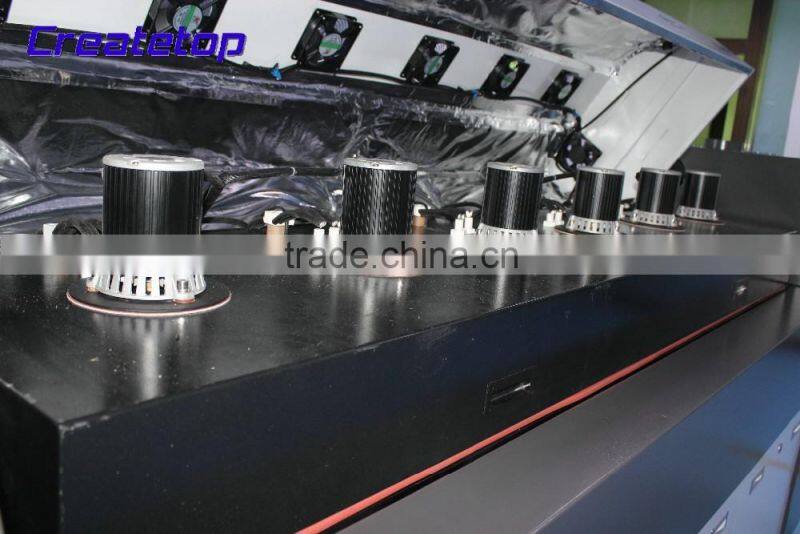

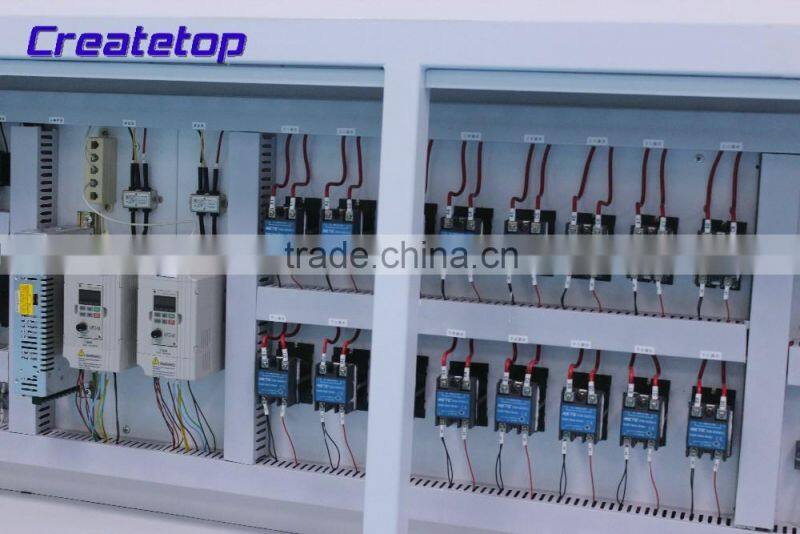

  Panasonic high temperatureinverter motor + delta inverter;*

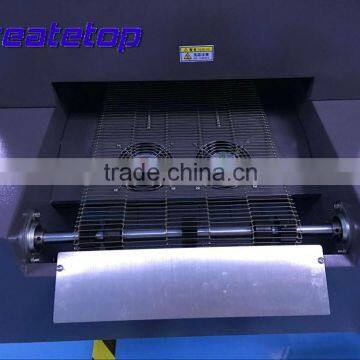

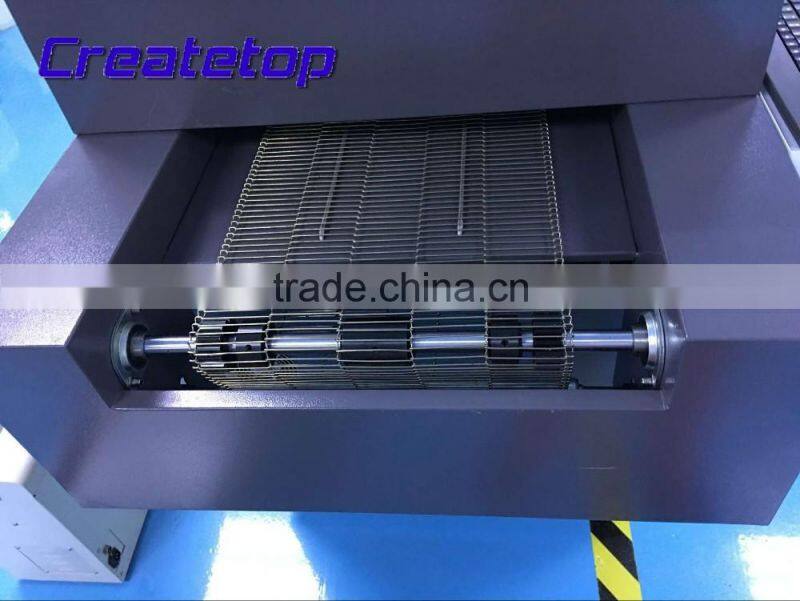

350mm lead free high temperature stainless steel mesh belt

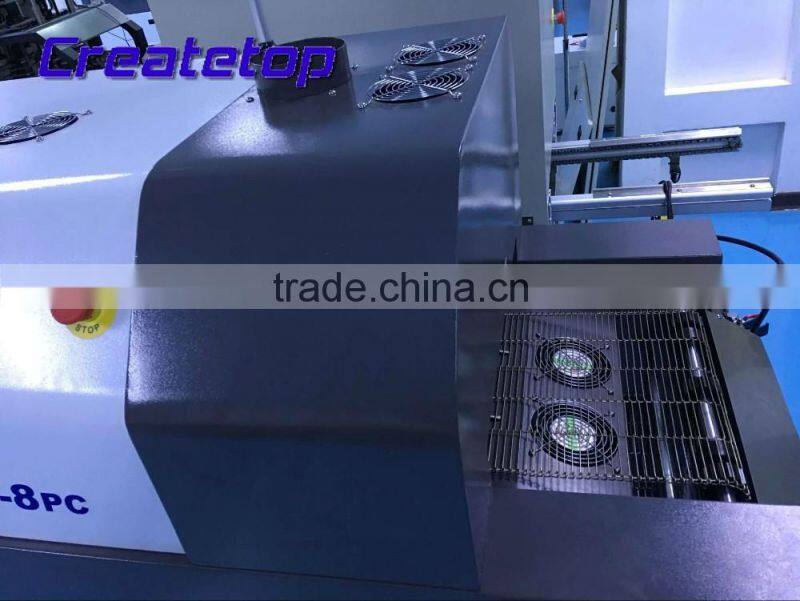

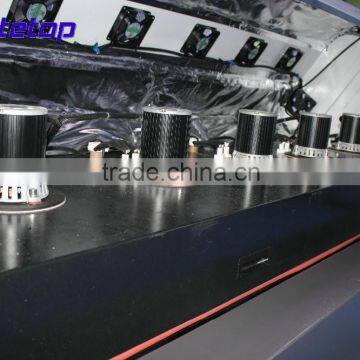

Forced double cross flow fan cooling system

Main technical parameters:

1 Number of heating zones: on eight eight

2 Heating method: hot air circulation heating + thermal compensation

3 Transmission mode: 350mm net belt

4.PCB maximum width: 320mm

5 Tansmission speed: 0-2000mm/min

6 Power: three-phase five wire system 50/60HZ 380V

7 Start power: 28KW

8 Normal power consumption: 6KW

9 Heating time: 20min

10 Temperature control mode: +PLC+PID+SSR PC

11 Temperature range: room temperature - 350C

12 Temperature control accuracy: + 1 ℃

13.PCB horizontal temperature deviation: + 3℃

14 Dimensions: 4260x750x1450MM

15: Weight: 800KG

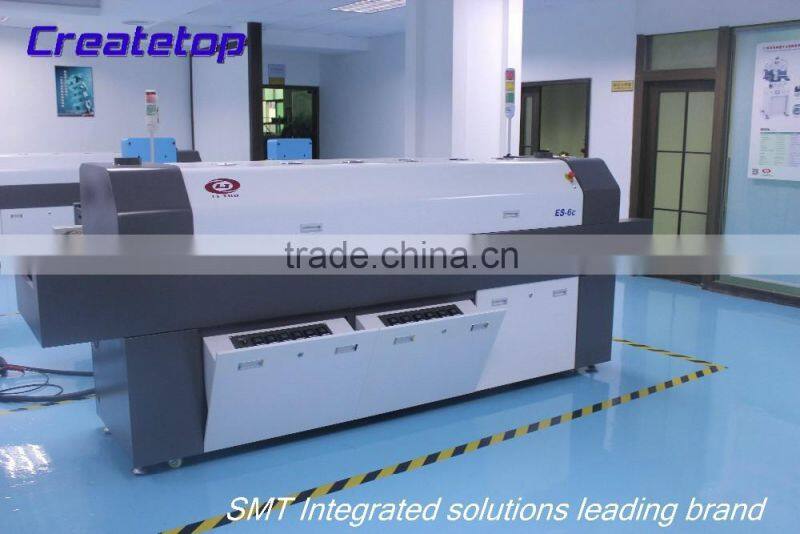

ES-6C   Instrument type, more economical

The company has set up the equipment exhibition hall in Shenzhen,

welcome the foreign friends to come to visit.

Our service:

1. Quick response within 24 hours.
2. On time delivery.
3. Techinical support before and after sales.
