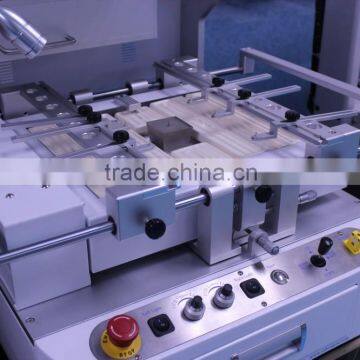

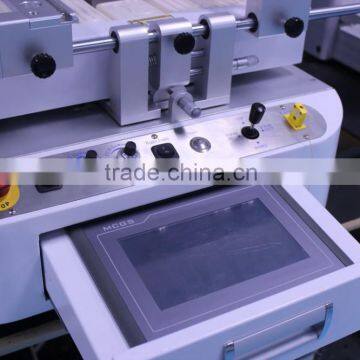

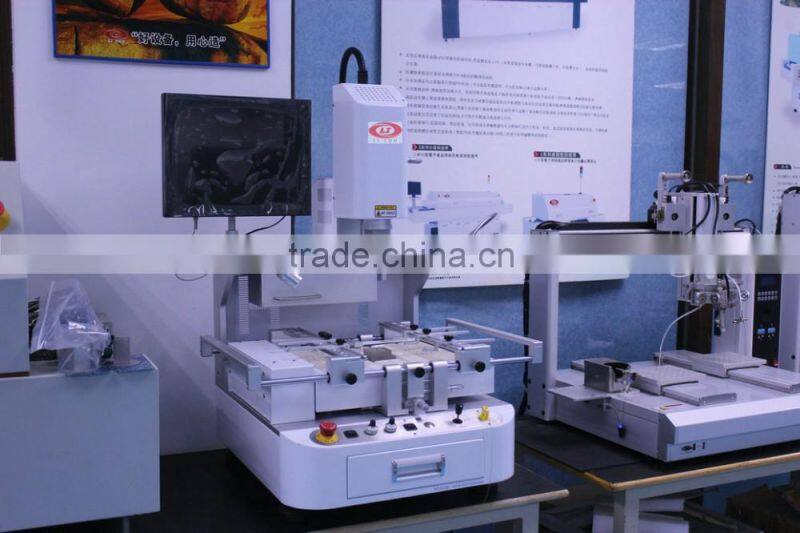

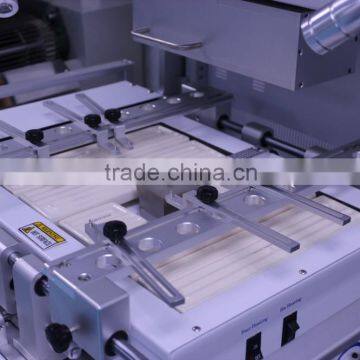

Through hole rework station /Semi-Automatic BGA rework station
- ShenZhen
You May Like
-
Automatic dip soldering machine for PCB pin /IC welding machine (Long pin/Short pin Welding)
-
High precision screen printing machine(1.2 m lamp with 5050/3528 strip lamp)
-
Automatic dip welding machine
-
CM Series Intelligent Strip Cutting Machine
-
MC61S Advanced Flexible multifunctional SMT chip mounter
-
SMT Lean Management Scrap Tape cutter
Product Details
Place of Origin | Guangdong, China | Brand Name | createtop | |
Model Number | TOP-388/TG-730A | Certification | ROHS | |
Warranty | 12 Months | After-sales Service Provided | No overseas service provided |
Product Description

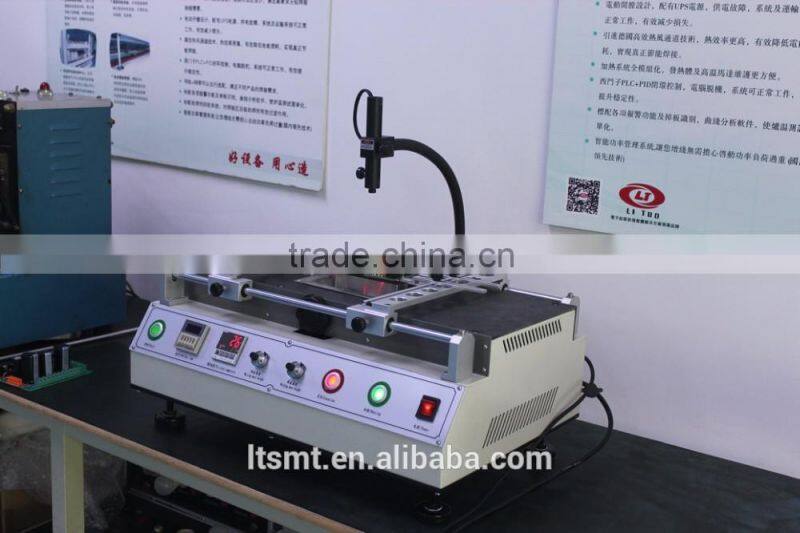

DIP hole repair workstation /DIP plug-in jet welding machine TOP-388
The traditional through hole components of the welding using wave soldering or manual welding. At present, the surface mount component and the through hole element are mixed together in the circuit board,
The wave soldering process may cause damage to the surface mount components in advance. Now many circuit boards to surface mount component based,
The through-hole components such as connectors, auxiliary, large capacitance, transformer etc.. In order to avoid the surface mount components of the two welding (wave soldering),
The small wave soldering can be carried out by the selective use of the local through hole device. This selective soldering can be a selective wave soldering,
Can also be based on the size of the object of welding, designed to different specifications of the tin mouth. The circuit board is arranged on the welding stage, and the leg of the through hole element which is needed to be welded is arranged,
Select the appropriate tin mouth, start wave soldering. This method has high efficiency, no damage to other devices, and energy saving compared with wave soldering.
From the circuit board removed the multi pin through hole components and hot capacity through-hole components more trouble, such as transformers, connector. Traditional party to this kind of object
Method is the use of manual suction tin grab or metal tin absorption line, but the efficiency is low, easy to damage the board and device.
These problems can be avoided by using the method of jet welding. The circuit board is arranged on the welding stage, and the through hole device for welding is aimed at solving the problem,
Select the appropriate tin mouth, start the wave crest, a one-time melt all the through hole pin, so as to safely and easily remove the device from the circuit board
Jet dip rework equipment, also known as jet tin or jet type tin furnace, which uses jet tin solution directly in solder joints, mainly used in multi pin through hole device, demolition, welding. Such as: DIP (DIL) IC, PBGA, connector, connector socket etc.
May select the corresponding nozzle or custom special nozzle
Digital temperature setting, real-time temperature display
High performance PID temperature controller, the accuracy of plus or minus 1 DEG C
Tin wave can TIMER jet set time, PC plate and the parts are not easy to be damaged
May need to set height and flow tin liquid jet
Equipped with safety circuit, tin Weida temperature setting temperature, the motor can operate

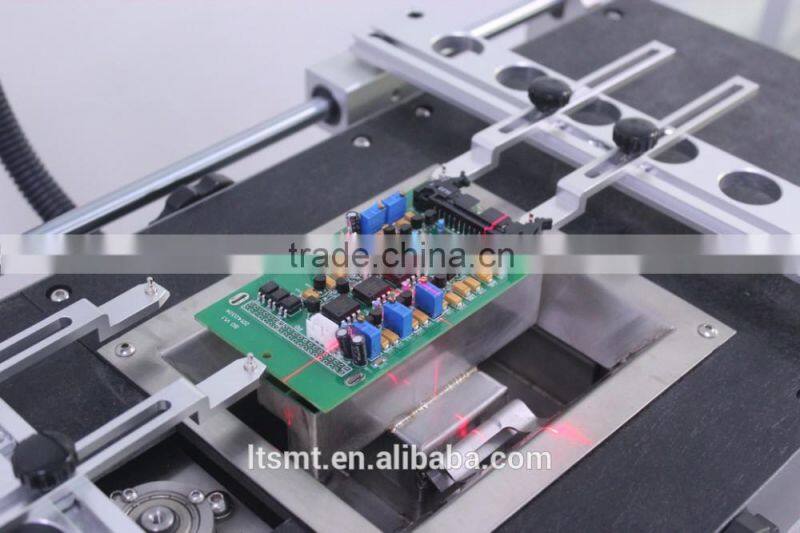

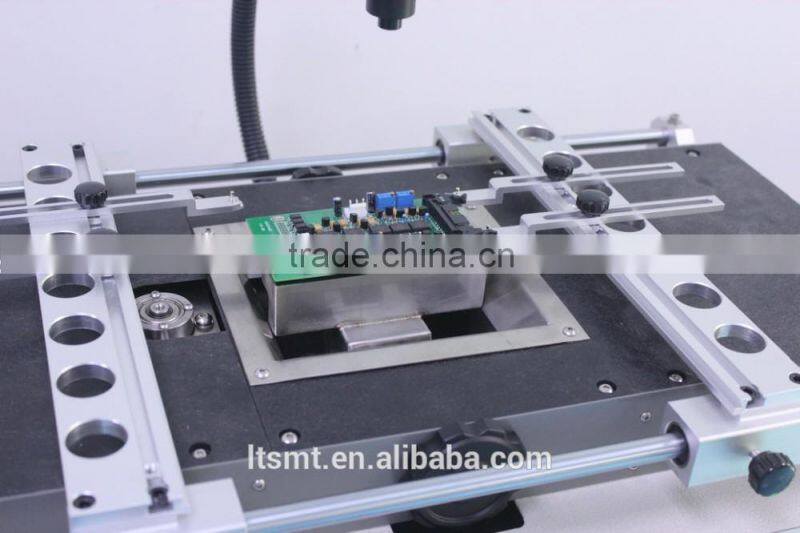

Of center positioning lamp, simple positioning, easy operation
Operation desktop for open, with anti-static mat, large working space, suitable for large substrate
Used to produce a variety of nozzles are available, and accept the special custom nozzle
Heating rapidly, the application of multilayer substrate
Also known as jet tin or jet tin furnace, which uses jet tin solution directly in solder joints, mainly used in multi pin through hole device, demolition, welding. Such as: DIP (DIL) IC, PBGA, connector, connector socket etc.
Digital temperature setting, real-time temperature display
High performance PID temperature controller, the accuracy of plus or minus 1 DEG C
Tin wave can TIMER jet set time, PC plate and the parts are not easy to be damaged
May need to set height and flow tin liquid jet
Equipped with safety circuit, tin Weida temperature setting temperature, the motor can operate
Center of laser light, simple positioning, easy operation
Operation desktop for open, with anti-static mat, large working space, suitable for large substrate
Used to produce a variety of nozzles are available, and accept the special custom nozzle
Heating rapidly, the application of multilayer substrate
The main function of configuration:
A digital temperature setting, real-time temperature display;
Two. High performance PID temperature controller, the accuracy of plus or minus 1 DEG c;
Three. Tin wave can TIMER set jet time, PC plate and the parts are not easy to be damaged;
Four. According to the needs, set the height and the flow of molten tin jet;
Equipped with safety circuit, tin Weida temperature setting temperature, the motor can operate; five. Attached center positioning lamp, simple positioning, easy operation;
Six. Work for desktop open, with anti-static mat, large working space, suitable for large substrate;
Seven. The preparation of various nozzles are available, and accept the special customized nozzle;
Eight. The heater is rapid, the most suitable multilayer substrate;
Nine. Tin Bath & heater made of imported stainless steel. (corrosion)
The main technical parameters:
1 power supply: 220V 50HZ;
2 solder weight: about 15kg;
3 containing tin height: 50MM;
3 soldering temperature: 0 ~ 450 degrees, set free, intelligent temperature protection;
4 Mechanical Size: 600 (L) *400 (W) *280 (H), vertical;
5 multi nozzle matching.
6.PCB size: 450*450MM
7 heater power: 1200W
8 safety devices: motor overload protection
9 time: 1~60S
10 machine weight: 40KG

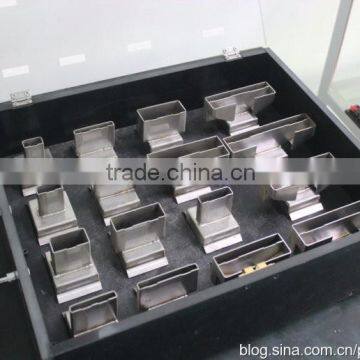

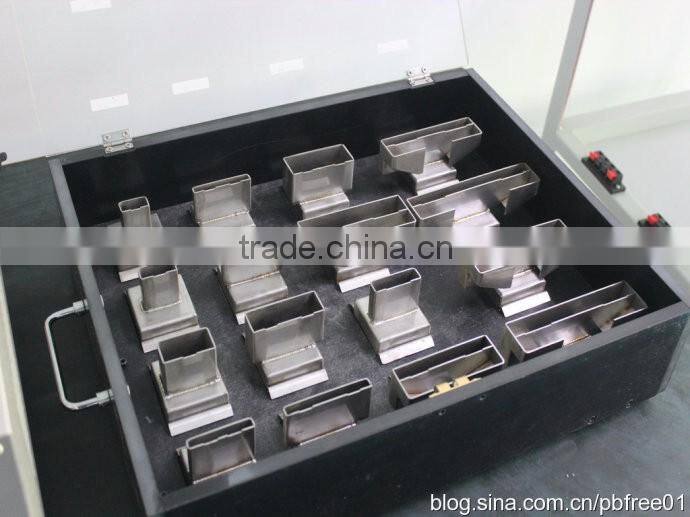

OPTION NOZZLE
MODEL | DIMENSIONS | DIMENSIONS | APPLY PARTS |
TP-16 | 13×25 | 11×23 | DIP 14~16P |
TP-20 | 13×30 | 11×28 | DIP 18~20P |
28 | 21×40 | 19×38 | DIP 24~28P |
34 | 8×47 | 6×45 | HEADDER 34P |
40 | 8×54 | 6×52 | HEADDER 40P |
42 | 21×60 | 19×58 | DIP 36~42P |
50 | 8×67 | 6×65 | HEADDER 50P |
60 | 60×60 | 58×58 | TRANSFORMER, PCB |
64 | 25×65 | 23×63 | DIP 54~64P |
100 | 20×100 | 18×98 | CONNECTOR |
1040 | 12×42 | 10×40 | CONNECTOR |
1050 | 12×52 | 10×50 | CONNECTOR |
1080 | 12×82 | 10×80 | CONNECTOR |
10100 | 12×102 | 10×100 | CONNECTOR |
10130 | 12×132 | 10×130 | CONNECTOR |
13100 | 15×102 | 13×100 | CONNECTOR |
13120 | 15×122 | 13×120 | CONNECTOR |
2525 | 27×27 | 25×25 | PGA 64P |
3030 | 32×32 | 30×30 | PGA 72P |
3535 | 37×37 | 35×35 | PGA 80P |
4040 | 42×42 | 40×40 | PGA 88P |
REMARK H=35 (STANDARD) |
