High Precision Screen Printing Machine(1.2 m Lamp With 5050/3528 Strip Lamp)

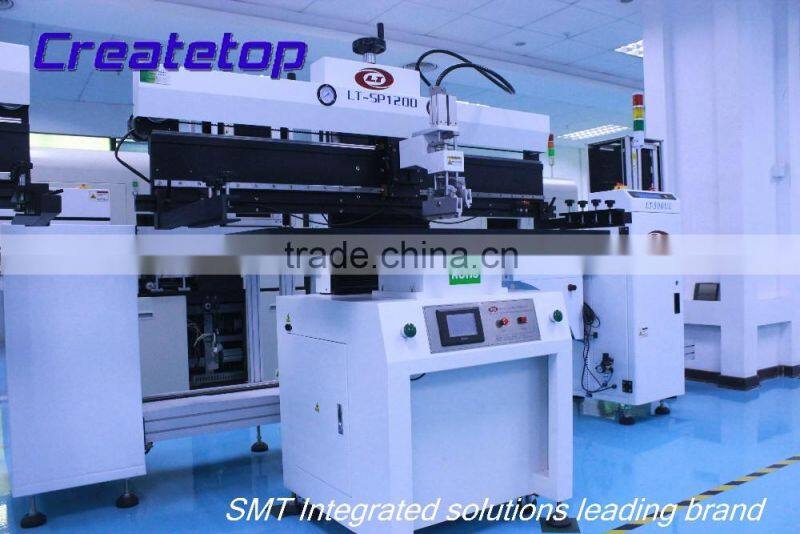

LT-SP1200 high precision screen printing machine

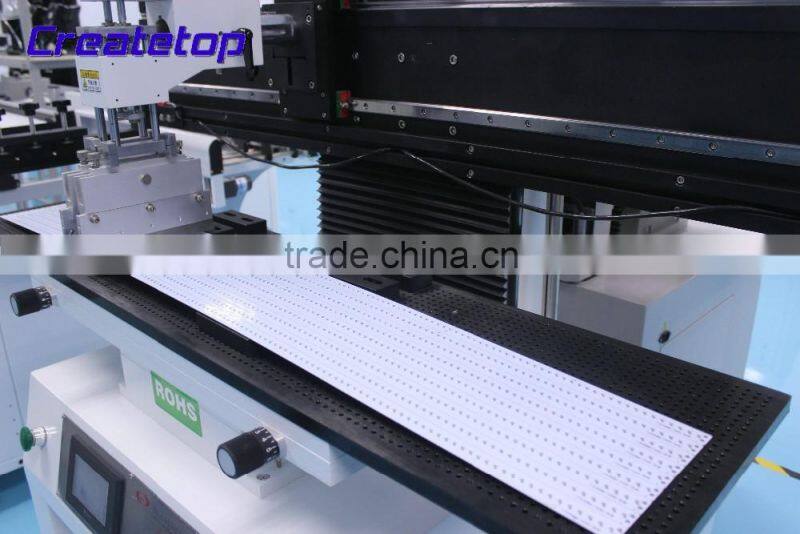

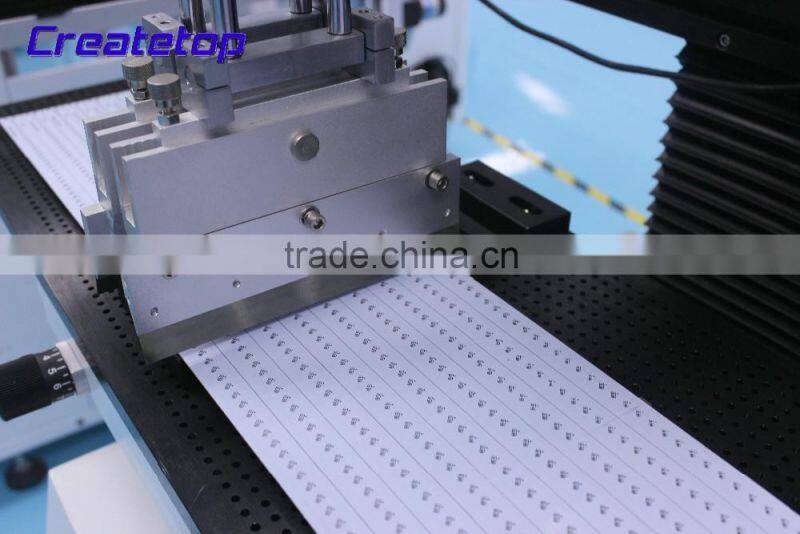

Product Features: All kinds of PCB solder paste and red plastic printing, the FPC can through smelting with precise positioning, can be directly printed 1.2 meters fluorescent lamp with 5050/3528 lamp strip lamp (Extended Version)

Main function configuration:

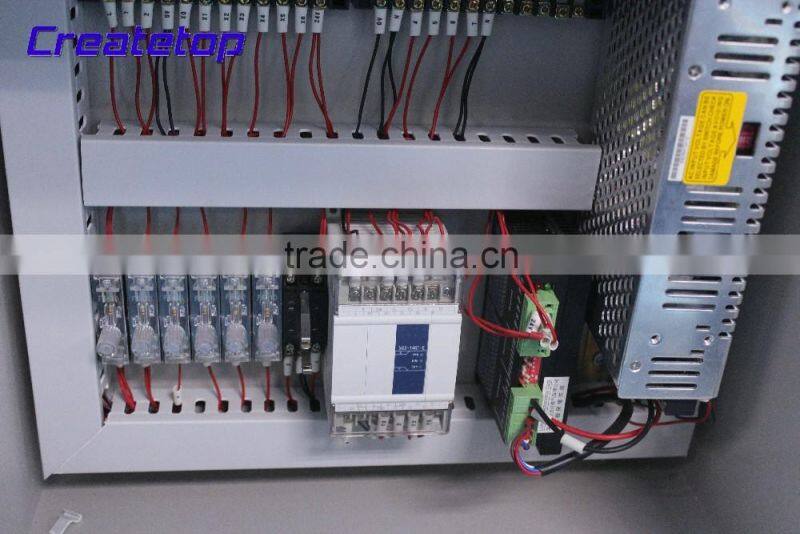

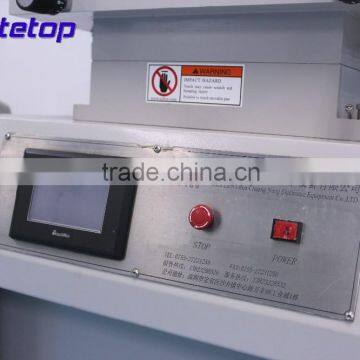

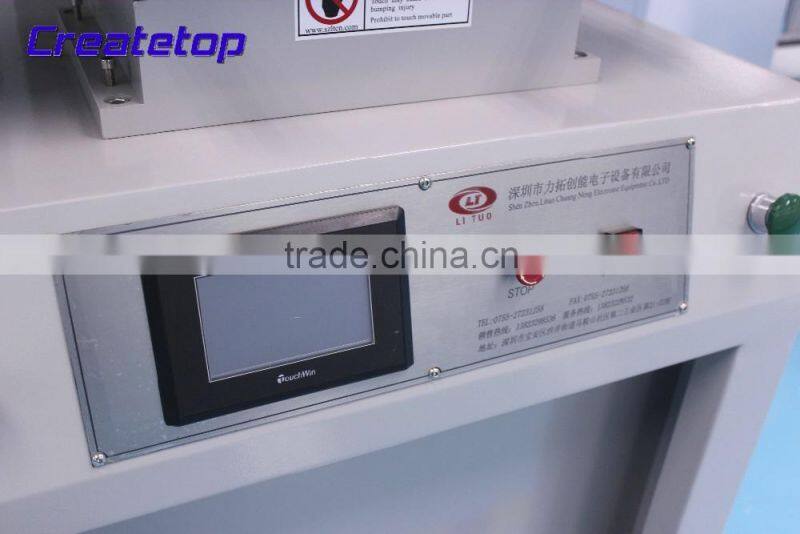

1: Delta PLC+4.3 intelligent touch screen control system;

2: Taiwan high frequency motor + Delta inverter;

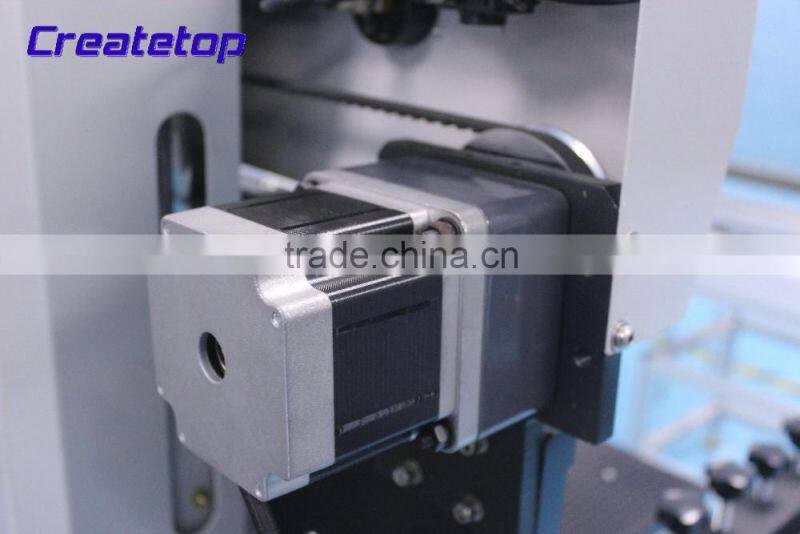

       Stepper motor

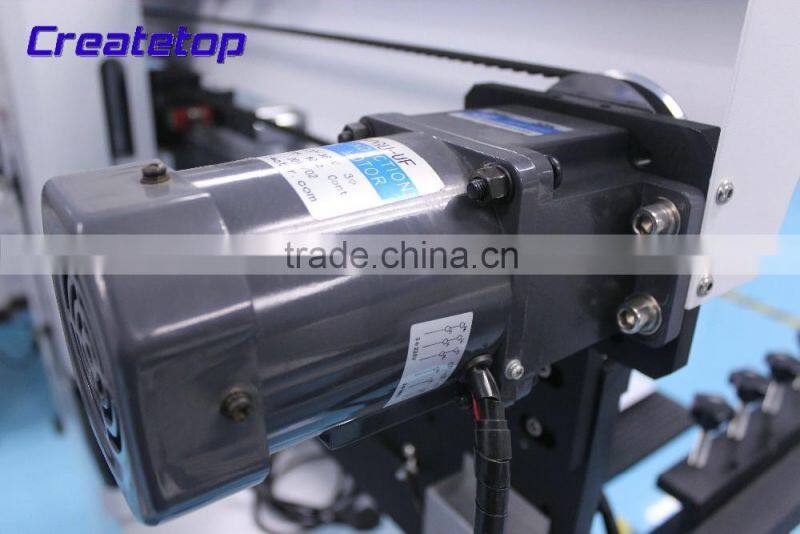

                                                              Slowing motor

3: The latest version of the English and Chinese man-machine interface

4: Taiwan high precision guide rail.

5: Electric / pneumatic door type completely isolated

6: The use of digital frequency modulation system.

7: Multi-protection of electronic control, use the 485 communication control

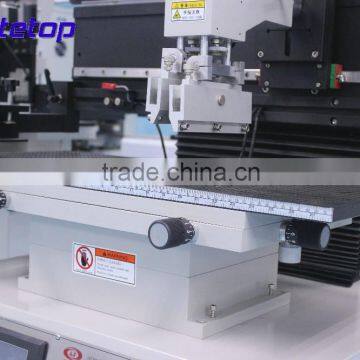

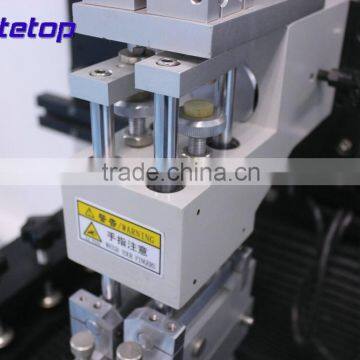

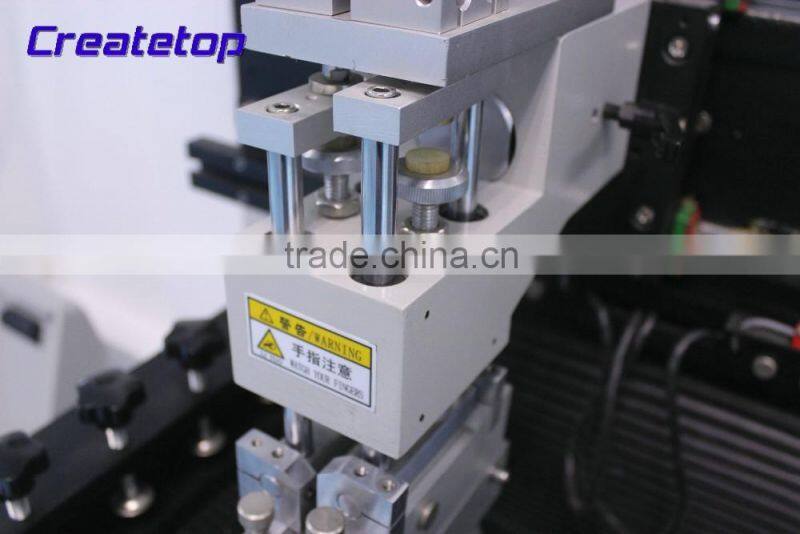

8: The scraper device with block tin device

9: Equipped with suspension type buffer.

10:Time controlled release and counting function

11: With a pair of scraper

Main technical parameters:

1 Release time: 0-5S

2 Printing area: 1250x320mm

3 Steel mesh size: 470X370~950X550mm adjustable

4 Substrate size: 1200x320 Max

5 Substrate thickness: 0.2-2.5mm

6 Scraper pressure: 0-6kgf/cm²

7 Table trimming:  X ± 5°  Y ± 5°

8 Printing scraper angle selection range:± 60°

9 Printing accuracy: ± 0.02mm

10 Machine repeat accuracy: ± 0.02mm

11 Using air pressure: 4.5kgf/cm²

12 Use power: single phase 50/60HZ 0.1KW 220V

13 Machine size: L1700/W720/H1680mm

14 Machine weight: 350kg

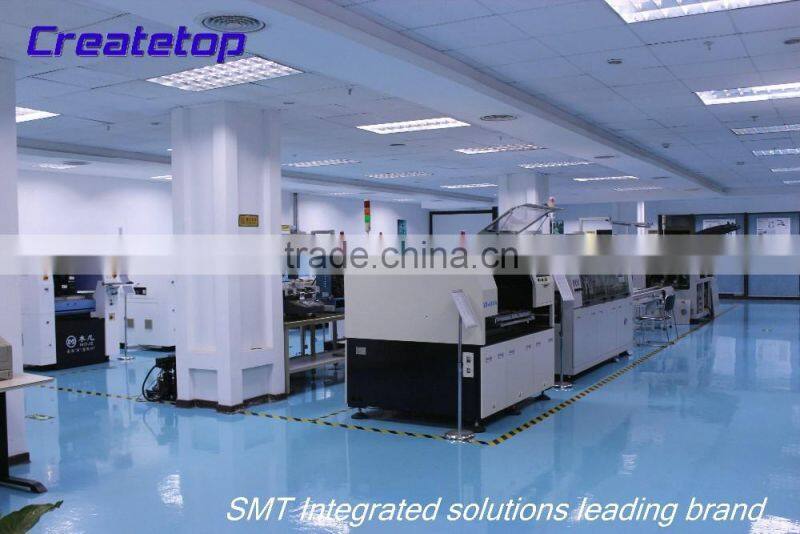

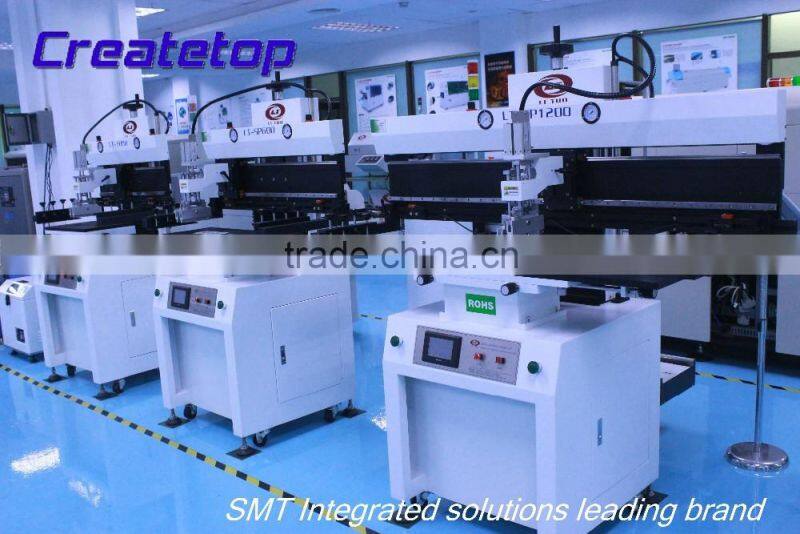

The company has set up the equipment exhibition hall in Shenzhen,

welcome the foreign friends to come to visit.

Our service:

1. Quick response within 24 hours.
2. On time delivery.
3. Techinical support before and after sales.
