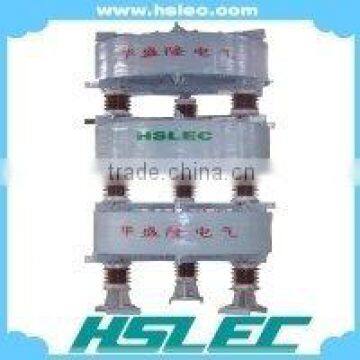

360kva High Voltage Air Core Current Inductors

                     360kva High voltage air core current inductors

A.  Quick Information:

360kva High voltage current inductors is applicable to 6-35kv power transmission and transformation system.The reactance value is not affected by current changes.It funcations to limit high harmonics,switching inrush current and operate over-voltage and also change the voltage waveform.In addition to improving power supply quality,it can restrain short-circuit current to ensure reliable performance of electrical equipment.

B.   Service conditions:

 a.Service site: indoor or outdoor

 b. Ambient temp.:-30~60 degree( or according to customer's requirment)

 c. Altitude: <=10000m( if it exceeding to 1000m, pls declare in order).

 d. Max. Wind speed: 35m/s

 e. Relative humidity: <=90%

 f. Earthquake resistant capability: horizontal direction 0.3g verticle direction0.15g (or by customer's requirments)

 Basic Data:

Rated Current: 100~5000A

Rated Voltage:  6KV/10KV

Rated reactance rate:3-12%

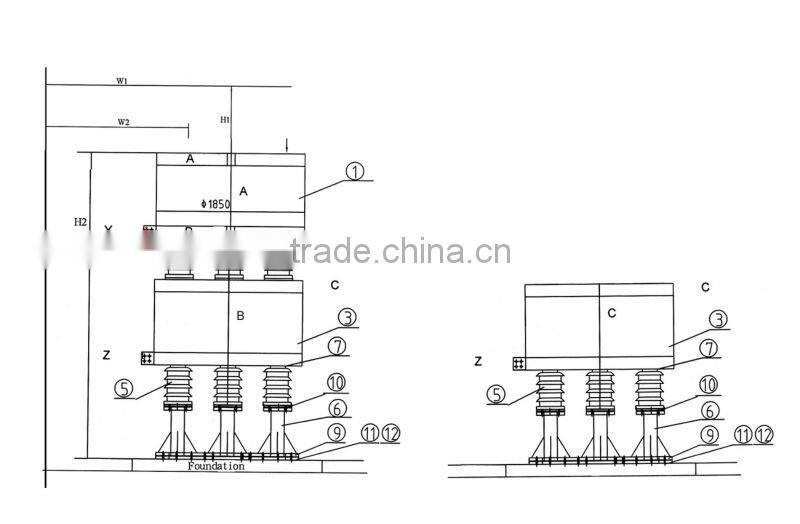

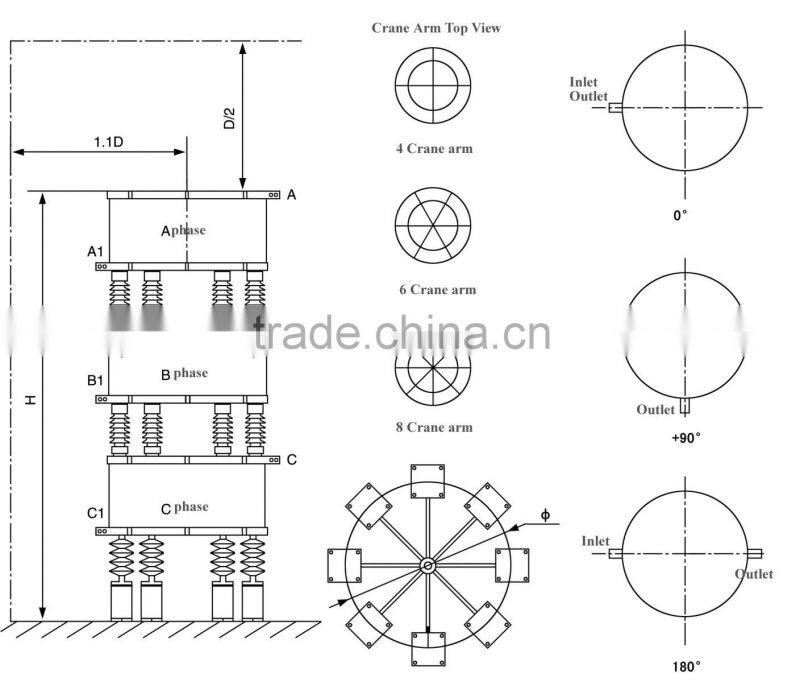

Installation Method: Horizontal or Vertical

Product Executive Standard: GB/T1094.6

For more details,welcome to visit at and freel to contact us at any time!

a.Our smoothing reactor can extend equipment lifecycle and reduce electrical losses.

b.It has high mechanical strength to withstand elevated short circuit.

c.Conservative temperature rise.

d.Maintenance-free design.

e.Environmentally friendly.

 Packing:Security Export Wooden Cartons

Shipping:4-30 days,by air or by sea as the customized

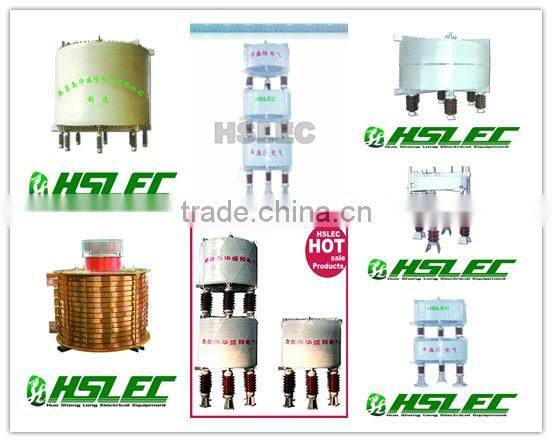

More types of dry type air core reactors

HSLEC offers a complete range of services for the care and maintenance of transformers,

from carrying out external evaluations and field-testing to undertaking full relocation projects.

•     Before –Sales

HSLEC excels at helping customers find ways to reduce cost. Using computer programs design

calculations enable millions of interative calculations converging to a very optimum design.

•    After-Sales

1.        Transformer Accessories :

HSLEC provides a complete line of transformer components and accessories, which they

are available in stock and can be ready to ship for emergency needs.

2.        HSLEC offers a full range of after sales service:

Tracing the quality of the product; site installation and commission; training customer staff ;

periodical customer visit, and so on.

•     Warranty Policy

a)        The guarantee of the individual transformer to be supplied shall be for 12 months from the date of delivery against any delivery manufacturing defect on account of improper design, bad workmanship or poor quality of raw material used etc. and any such defects occurring within the above period will be repaired/replaced by us provided the maintenance of transformer are done as per relevant specification.

b)        All claims under this warranty must be submitted in writing to HSLEC within 30 days of the occurrence,Upon receipt of such notice,HSLEC shall promptly repair or replace the defective GOODS or part thereof without any cost.

c)        The warranty shall be void if (a) the equipment is damaged by the customer, is improperly used, is subjected to an adverse operating environment, or is operated outside the limits of its electrical specifications; (b) the equipment is repaired or modified by anyone who is not  familiar with this product. or (c) has been used in a manner contrary to the product's operating manual or other written instructions.

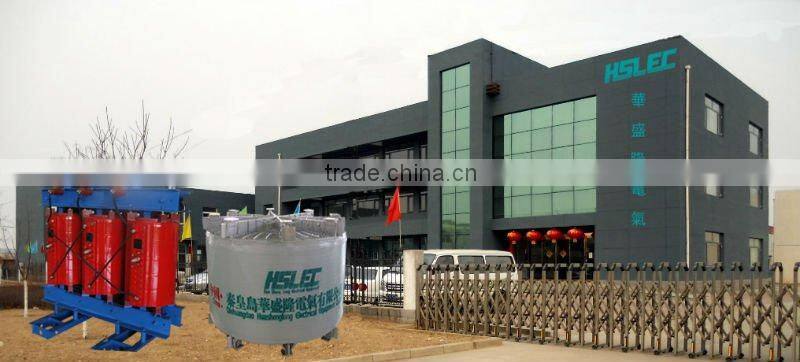

HSLEC  is one professional manufacturers and exporter of power distribution transformers in China. All facilities are ISO 9001 certified and all products are manufactured to the highest quality standards, comprehensively fulfilled the requirements of international standard specifications and their stringent requirement.
