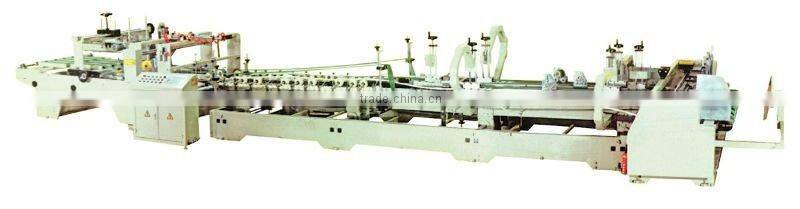

Automatic Manual Carton Box Folding Machine
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Commodity | |
| Packaging Type | Cartons | Packaging Material | Other, cardboard | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Power | 8kw | Place of Origin | Shanghai, China | |
| Brand Name | Qisheng | Model Number | Auto folder gluer |
Product Description
Specifications
Automatic manual carton box folding machineAuto folder glue machine
Automatic for the paper,automatic folding.
frequency
Automatic manual carton box folding machine
Features
Modular design providing flexibility
Extrusion glue system
Vacuun tray hold-dowm and position sheet squaring device
Long-life belts
Easy operation&low maintenance
Faster set-ups
Master technichal parameters
modal | YS-2000 | YS-2400 | YS-2800 | |
Specification Of the Cardboard | Max H*L | 1000*2000 | 1000*2400 | 1400*2800 |
Min H*L | 300*800 | 350*800 | 350*800 | |
Distance between the two Grooves B | 150*600mm | 150*800mm | 150*800mm | |
Distance between the two Grooves c | 150*600mm | 150*800mm | 150*800mm | |
Applicable cardboard thickness(mm) | 2-9mm | |||
Adhesive | Polyvinyl Acetate Emilsion | |||
Sheet feeding method | Friction Feeding | |||
Formation mode |
| |||
Compressed air | 0.7-1.0Mpa | |||
Total power of the whole machine | 8kw | Total power of the whole machine | 8kw | |
Running speed | 180/min. | |||
Cementing with | <=45mm | |||
Power | 380v | |||
Machine overall dimensions(mm) | 3000*11500 | 3200*11500 | 3600*11500 | |
