Semi Automatic Carton Box Slotting Machine
- Shanghai
- T/T
You May Like
-
Automatic Corrugated Boxes Manufacturers
-
Automatic Corrugated Printing and Die Cutting Machine
-
High Speed Corrugated Cardboard Production Machine
-
3/5 Ply Automatic Corrugated Cardboard Board Plant Making Machine Price
-
High Speed Flexo Printer Slotter Die-cutter Stacker Machine
-
Automatic Corrugated Cardboard Flexo Printing Machine
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Cartons | Packaging Material | Paper | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 380V | Power | 3 kw | |
| Place of Origin | Shanghai, China | Brand Name | Qisheng | |
| Model Number | ZK-C | Dimension(L*W*H) | 3150*3150*1400 | |
| Weight | 3 ton | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Semi automatic carton box slotting machine1. one year warranty
2.export to more than 20 countries
3.good after sale service

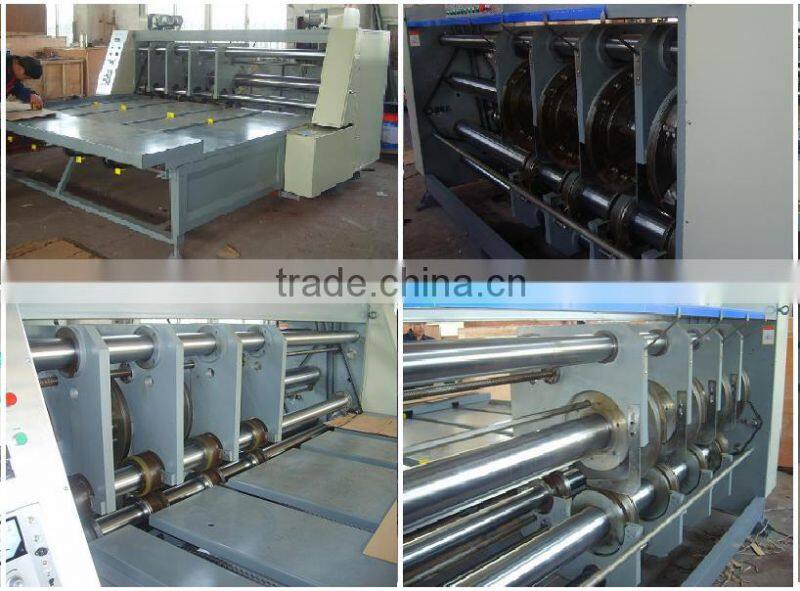

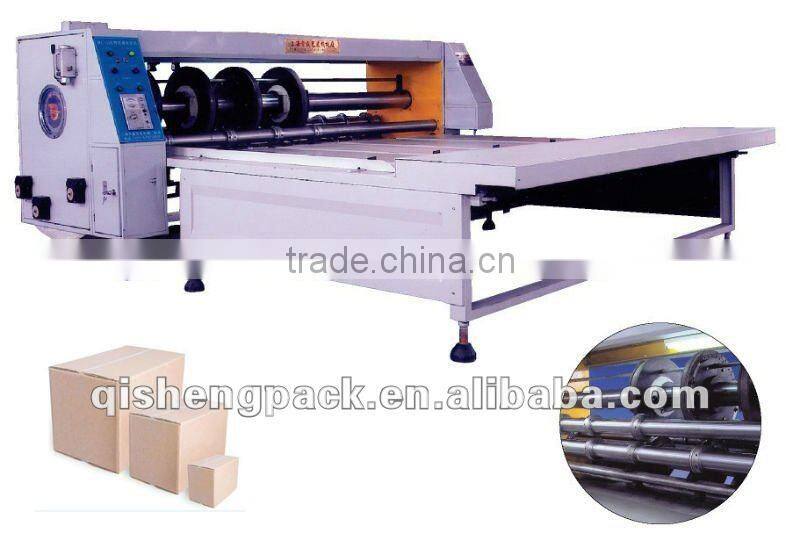

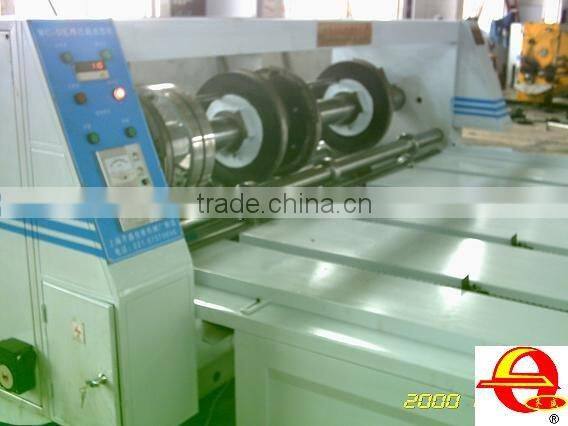

Semi automatic carton box slotting machine
Packing slotting machine
carton packaging machine
packaging machinery
Package slotting machine
slotting machine manufacturer
This kind of machine is used for corrugated cardboard cutting, line pressing, slotting and corner cutting. Indispensable device for carton box factory.
Technical Specification:
Model(unit:mm) mm | 1200*2200 | 1400*2600 | 1600*2800 | 1800*3000 | 2200*3600 |
Breadth | 2200 | 2600 | 2800 | 3000 | 3600 |
Maximum feeding size
| 1200*2000 | 1400*2400 | 1600*2600 | 1800*2800 | 2200*3400 |
Minimum feeding size
| 280*280 | 300*300 | 420*420 | 500*500 | 600*600 |
Maximum grooving size
| 7*300 | 7*350 | 7*400 | 7*450 | 7*550 |
Minimum grooving clearance
|
100 |
100 |
100 |
120 |
120 |
Grooving blade thhickness
|
7 |
7 |
7 |
7 |
7 |
Machine overall dimensions
| 3150*3150* 1400 | 3550*3200* 1400 | 3850*3300* 1500 | 4050*3450* 1600 | 5550*4550* 1800 |
Maximum speed
| 70sheet/min
| 60sheets/min
| 60sheets/min
| 50sheets/min
| 40sheets/min
|
Weight(ton)
| 2.6T | 3T | 4T | 5T | 7T |
Power rate
| 2.2kw | 3kw | 4kw | 5.5kw | 7.5kw |
