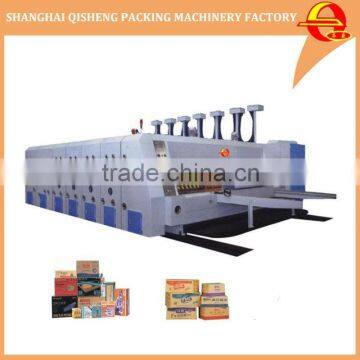

Flexo 3 Color Printing Slotting and Die Cutting Machine

Specifications

FLEXO 3 COLORS PRINTING AND SLOTTING AND ROTARY DIE CUTTING MACHINE

Introduction for integral machine

  flexo printer slotter rotary die cutter

  Machine adopts PLC program control, the drive to adjust the phase body, touch screen and button dual system operation; Controllable roller intelligent automatic landing, the Indian version scrub the memory reset automatically, personalized Qi paper, fixed to complete the Auto Standby function.

  Main drive gear made of high quality alloy steel (20CrMnTi), by program-controlled carburizing and quenching, grinding treatment, the accuracy can be achieved six high hardness, high-precision gears (tooth surface hardness HRC58-62).

 Touch-screen display setting value, the control plate of each group and the position of the adjustment slot knives; can set the production rate, and a count and prompts.

   Pull the paper delivery round of self-locking quick transfer function; avoid the destruction of the screw fastening devices operating on the roller and a great inconvenience.

   Application of free connection device, eliminating the gap generated by the traditional connection to maintain long-term precision printing chromatic.

   Gearing body splash with spray devices; lubrication system automatically cycles and installation of seepage oil bodies.

The units used between the cylinder lock and locking machine with a strong self-locking mechanism, to ensure the stability of the unit.

Paper feeder

  Negative pressure vacuum suction feed system and feed with skip function.

   Adopt imported light rail linear bearing feeding, so that paper feeding is correct, and smooth.

  Automatic document feeder institutions simultaneously with the ink roller in order to work effectively to ensure the printing quality, reduce waste and defective products occur.

    In addition to setting the cleaning litter institutions, and in accordance with the actual situation of wind adjustment.

Power adjustment bezel around, working position tailgate can be set free paper manual or electric homogeneous way, the operating frequency can be set arbitrarily.

   Feed roller is designed around the axis structure; the soft tube is combined with both a good stretch and abrasion resistance.

   Data can display machine speed and production quantity.

Servo edge feeder institutions

    Use with fast response, high positioning accuracy, system stability, long service life of the servo motor, replace mechanical cam with electronic cam control

   Feeding the servo motor shaft axle and connected by timing belt, eliminating the work of any of the feed roller gaps, improve feed accuracy, and avoid wandering around the phenomenon of cardboard.

Unique quick-change semi-round structure, to ensure the consistency of feed location, feed wheel circumference to avoid inconsistencies in surface wear and replacement is very easy and fast.

Printing Part

    Printing phase, the axial position with PLC programmable logic controller to control; machine touch screen, power button and dual action; print roller with automatic reset after wiping version of the memory function.

   Linkage with the feeder roller lift, open or stopped when the feed roller and the printing plate according to the order automatically from, together.

    Pull transfer paper designed to self-locking quick round of transfer function, avoid the destruction of the top compression roller fixtures.

   Operations set the ink rollers and ink pump start and stop function; Indian Roller phase, digital display to adjust the axial position.

    Department of foot plate electric switch device can be quickly linked version, adjusted to facilitate the work of changing version and scrub.

  Printing phase with magnetic clutch brake mechanism, separation machine gear position can be automatically locked to prevent the loss of zero plate.

   Department of device penetration ink splash pad and back across agencies, to prevent water overflow, and fly ink of ink printing quality.

  Print board Roller, embossing rollers made of high quality alloy steel, the surface grinding and hard chrome plating; dynamic balance at coarse and fine adjustment on the two devices to ensure the best balance.

 Configuration self-locking preload adjusting structure quickly to ensure that the disk, between the long axis of the precision, the pressure line slowed the destruction of cardboard.

Die-cutting Part

     Unique built-in differential compensation device, when the diameter changes in pads excellent, can automatically compensate for line speed, slowing the excellent wear pads, to ensure that each batch of exactly the same die size of the workpiece.

   When cutting the Department is in the standby state, the template will automatically roll roller disengaged with the pads in the same time reduce the load loss machine; prolong the Urethane and the die cutter life.

  Work in the cutting department, excellent pads set to automatically roll displacement state; excellent pads roll roller speed differential with the template design; device from the automatic cutting mechanism of the cushion roll repair device can be carried out on Urethane multiple repair; excellent pads roll through the optimal design of cutting the workpiece to ensure product quality.

   With the number of planetary gear display Phase adjustment of the phase adjustment of electric roller template.
