Home > Products > Corrugated Flute Laminating Machine > Flat Creasing and Die Cutting Machine
Flat Creasing and Die Cutting Machine
- shanghai
- T/T
You May Like
-
Automatic Vacuum Suction Type Single Facer Cardboard Making Machine
-
Single Face Corrugated Board Making Machine
-
High Speed Corrugated Carton Stitching Machinery
-
Automatic Carton Line Press and Slitting Machine Line
-
Automatic Packaging Flexo Feeder Printer and Slotter Machine
-
Automatic Sheet Rotary Die Cutting Machine
Product Details
| Condition | New | Application | Commodity | |
| Packaging Type | Cartons | Packaging Material | Paper | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220 | Power | 2.2-11kw | |
| Place of Origin | Shanghai, China | Brand Name | Qisheng | |
| Model Number | ML | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Flat creasing and die cutting machineselling to more than 20 countries
certificated products
perfect service

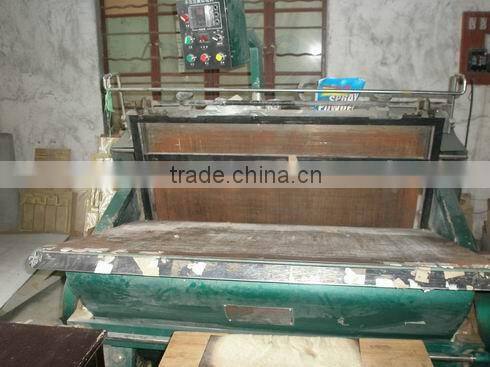

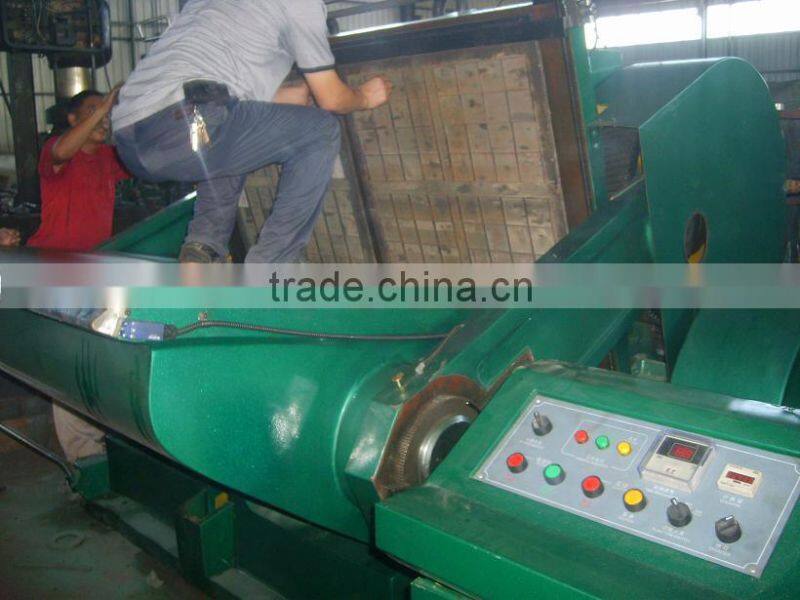

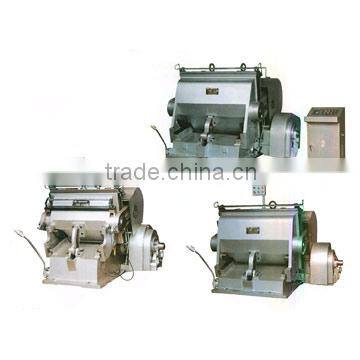

Flat creasing and die cutting machine
Description:
Creasing with the same specification, its structure is more reasonable scientific design. Stable working, low voice and great pressure for cutting, especially as to thick carton, plastic sheet ect products with notice able effect
Technical Specifications:
Inner chase size | Speed | Max. rule length | Motor power | Machine Weight | Overall dimension(mm) |
930*670mm | 23±3 Strokes/min | <25mm | 4kw | 3200kg | 1700*1620*1600 |
720*510mm | 25±2 Strokes/min | <15mm | 2.2kw | 2000kg | 1500*1400*1300 |
750*520mm | 25±3 Strokes/min | <15mm | 2.2kw-6h | 2000kg | 1500*1400*1300 |
1100*800mm | 20±2 Strokes/min | <32mm | 4kw-6h | 4500kg | 2100*1950*1750 |
1200*820mm | 20±2 Strokes/min | <35mm | 4kw-6h | 5000kg | 1960*1860*1750 |
1300*920mm | 15±2 Strokes/min | <40m | 5.5kw | 5600kg | 2200*2200*1750 |
1400*1000mm | 15±2 Strokes/min | <45m | 5.5kw | 6200kg | 2200*2200*1750 |
1500*1080mm | 14±2 Strokes/min | <45m | 7.5kw | 7000kg | 2500*2200*1750 |
1600*1250mm | 13±2 Strokes/min | <50m | 11kw | 12000kg | 2500*2200*2000 |
1800*1280mm | 13±2 Strokes/min | <62m | 11kw | 14200kg | 2520*2900*2340 |
Contact Us
- Shanghai Qisheng Packing Machinery Factory
- Contact nameGarry Lee Chat Now
- Phone0086-021-61049284
- Address7926 Jinda Rd.
