Home > Products > DIESEL OUTBOARD ENGINE > 4-stroke MIHENG 20HP 7GX-15C-AC Chinese Outboard Engine (4HP-20HP)
4-stroke MIHENG 20HP 7GX-15C-AC Chinese Outboard Engine (4HP-20HP)
Negotiable
/ Carton
1 Carton(Min. Order)
- CHONGQING
- T/T Credit Card
You May Like
-
7GX-8.2C-ACMIHENG Outboard Motor 12hp 4 Stroke
-
MIHENG 7GX-15C-AC 4 Stroke 20hp Outboard(4HP-20HP)
-
7GX-8.2CMIHENG Marine Outboat Diesel Engine
-
4-stroke MIHENG 20HP 7GX-15C-AC Long Shaft Boat Engine (4HP-20HP)
-
7GX-8.8C-AS MIHENG Long Shaft Outboard Motor
-
7GX-8.2C-ACMIHENG Outboard Marine Engine Manufacturers
Product Details
| Condition | New | Engine | 4 Stroke | |
| Fuel Type | Diesel | Cylinders | 2 | |
| Engine Position | Outboard | Dimensions (L x W x H) (mm) | 525mm*391mm*459mm |
Product Description
Direct Injection, Energy Efficient
Owner of 7 national-level IPR .
duct:
2.DEMO FIGURE
3.Technical Specifications
| MODELS | 7GX-15C-AC | ||
| Engine Type | V-DOUBLE CYLINDERS, FOUR STROKE, AIR COOLED, DIRECT INJECTION | ||
| Bore x Stroke (mm x mm) | 2-88×72mm×mm | ||
| Displacement of Piston (L) | 0.87L | ||
| Rated Speed of Output Shaft (rpm) | 3000/3600r/min | ||
| Power | Max Output KW/Ps | 16.2(19)/r/3600/min | |
| Rated Output KW/Ps | 15r/3600/min | ||
| Direction of Output Rotation | Anticlockwise (from the output side) | ||
| Valve Clearance (mm) | 0.1-0.15(cold position) | ||
| Starting Way | Electric Start | ||
| Fuel | Kgf/cm2(Mpa) | 220-230(21.6-22.6) | |
| Fuel Supply Advance Angle | 200±10 | ||
| Fuel Capacity(L) | 12 | ||
| Mark | NO.0(Summer)/ No.-10(Winter) | ||
| Engine Lubrication | Method of Lubrication | Pressure Splash Compound | |
| Lubrication Oil | SAE10W-30, Level CC above | ||
| Lubrication Oil Capacity(L) | 17 | ||
| Engine Size (LxWxH) (mm) | 525×391×459 | ||
| Engine Net Weight (Kg) | ≤59Kg | ||
| Machinery Net Weight (Kg) | ≤110Kg | ||
| Speed of Impeller | >1400r/min | ||
| Diameter of Impeller | 370mm | ||
| Transmission Fluid | Middle Duty Industrial Gear Oil HL-20 | ||
| Transmission Capacity | 3L | ||
| Applicable Scope | 9-16 Meters Ship, Maximum load 10tons | ||
4.Functions added

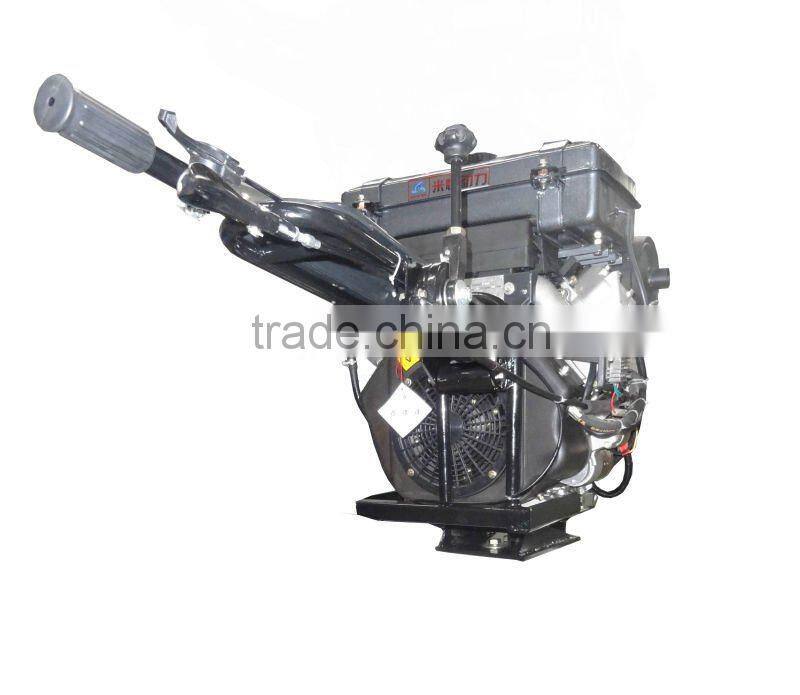

5.Product details
6.Modern workshop and new office.
7.Certificated
8.MIHENG outboard engine
9.Comparison between old and new type of outboard engines
10. Delivery
11.Made in china.
