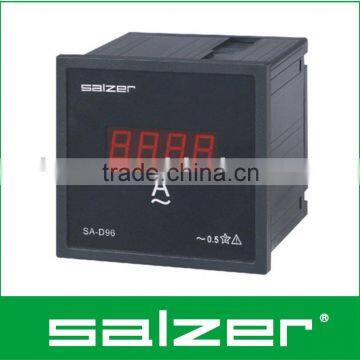

Salzer Brand Digital AC Ammeter Panel Meter
Negotiable
1 (Min. Order)
- Ningbo Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Salzer | |
| Model Number | SA-D96A AC | Measuring Current Range | 0-5A AC | |
| Accuracy Class | Class 0.5 | Operating Temperature | 0-40Deg | |
| Dimensions | 96x96mm, 72x72mm |
Product Description
Specifications
Display: 3 1/2 digits LED display.Accuracy: 0.5% & plusmn 2 digits
Measuring range: 0-5A AC.
Outer Size: 96x96mm or 72x72mm
Name: 96 Digital AC Ammeter
Model: SA-D96A AC.
Display: 3 1/2 digits LED display.
Accuracy: 0.5% ± 2 digits.
Auxiliary power: AC 110V ± 10% 50/60Hz or 220V ± 10%50/60Hz.
Input signal: AC current.
Measuring range: 0-5A AC, for the current over 5A can use the AC current transformer.
Consumption: < 3VA.
Operating Environment: Temperature 0Deg.~ 40Deg, humidity: 70%.
Withstand Voltage surge: Over 2000V.
Outer Size: 96x96mm or 72x72mm
