SALZER Brand SA-T96A(F) Analog AC Ammeter Panel Meter
- Ningbo Shanghai Port
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SALZER | |
| Model Number | SA-T96A(F) AC | Display Type | Analog Only | |
| Measuring Range | 0.1A-100A, X/5A | Accuracy Class | Class 1.5 | |
| Operating Temperature | 0-40deg. | Dimensions | 96x96mm |
Product Description
Specifications
1) With cover on movement (F)Analog AC Ammeter Panel Meter2) Accuracy: Class 1.5
3) Mounting Depth:Max 43mm

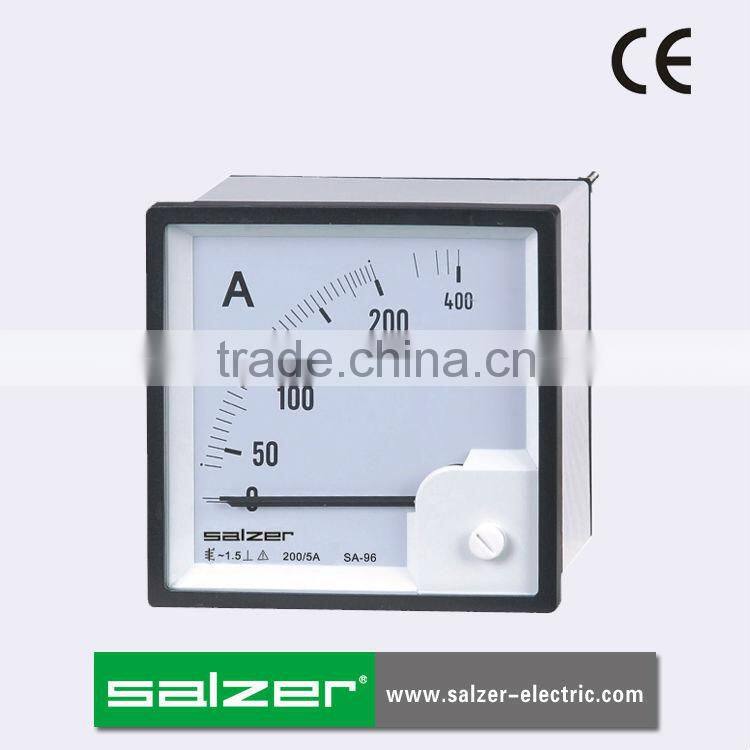

SALZER Brand SA-T96A(F) Analog AC Ammeter Panel Meter
An analog panel meter is a type of panel meter which drives the needle to move based on the electromechanical principle and the position where the pointer stops shows the measured value. Generally, the analog panel meter includes analog ammeter, analog voltmeter, analog frequency meter, analog power factor meter and analog power meter.
Analog AC Ammeter Panel Meter
| Feature | With cover on the moving needle(F), without cover on the moving needle(C) |
| Model | SA-T96A, SA-T96V, SA-T72A, SA-T72V, SA-T48A,SA-T48V |
| Accuracy | Class 1.5 |
| Specification | 0.1A, 0.5A, 1A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A, X/5A. For 10A-10KA, use external current transformer with secondary current 1A or 5A. |
| Notes | 60A, 75A, 100A direct reading meters can be directly connected to circuit, but their accuracy is class 2.5. For SA-48 analog ammeter, 20A to 60A direct reading meter can be directly connected to circuit, but the accuracy class is 2.5. |
| Changeable scale | All scales with printing technique. The dial plates with different scale, which is at the same division and internal value, can be changeable, and the accuracy is unchangeable. The scale plates of SA-48 meter can be changeable with the same division. |
Specification of Voltmeter |
30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 450V, 500V, 600V For
450-450KV, meters can use potential transformer with secondary voltage 100V. |
| Heat Resistance | Case of non-combustible plastic material. Fastening by means of nuts, absolutely safe, fast robust, side-by side. |
| Mounting Depth | Max 43mm |
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer and customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
