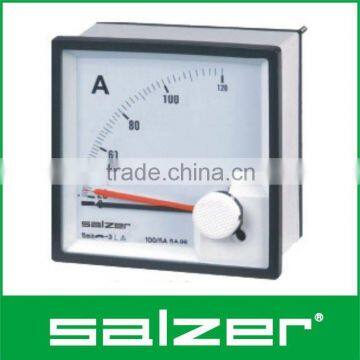

Salzer Brand Maximum Demand Ammeter
- Ningbo Shanghai
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Salzer | |
| Model Number | SA-M96,SA-M72 | Display Type | Analog Only | |
| Measuring Range | 8min 5A, 15min 5A, 8min 1A, 15min 1A | Accuracy Class | Class 3.0 | |
| Operating Temperature | 0-40Deg | Dimensions | 96X96mm,72X72mm |
Product Description
Specifications
Specification: 8min 5A, 15min 5A, 8min 1A, 15min 1AAccuracy: Class 3.0
For measuring mean maximum current value, when it is 8 min or 15min or 30min.
Model: SA-M96, SA-M72.
Accuracy: Class3.0.
Specification: 8min 5A, 15min 5A, 8min 1A, 15min 1A
With bimetal movement and thermal delayed indicator for measuring the maximum mean load during a period of 8minutes or 15 minutes, eats red maximum pionter. Lead seal can protect resetting knob of maximum pionter. Scale compressed at the beginning, convenient reading from 25% of full-scale deflection. Accuracy of maximum load indication ±3%. Reminutes(to be specified when ordering).
Heat resistance: Case of non-combustible plastic material.
Fastening: By means of nuts, absolutely safe, fast, robust, side-by side.
Mounting depth: Max 43mm
Outer Size: 96x96mm or 72x72mm
