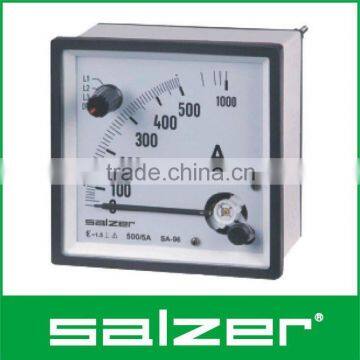

Salzer Brand Analog AC Ammeter with Change Over Switch
Negotiable
1 (Min.Order)
- 20000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | salzer | |
| Model Number | SA-Z96A(C) | Display Type | Analog Only | |
| Measuring Range | X/5A | Accuracy Class | Class 1.5 | |
| Operating Temperature | 0-40Deg | Dimensions | 96x96mm |
Product Description
Specifications
3 phase 3 wire 2 position:L1,L23 phase 4 wire 3 position:L1,L2,L3
3 phase 4 wire 4 position:L1,L2,L3,OFF
Accuracy:Class1.5
The instrument are suitable for measuring AC Ampere in three phase 4 or 3 wire networks by using a change over switch on the fornt side of the instrument.
Feature: With cover on movement (F), without cover on movement(c).
Model: SA-Z96A, SA-Z72A.
Technical data:
Movement: Moving-iron movement with oil filled bearings,practically vibration-free oil damping.
Accuracy: Class 1.5.
Frequency range: 50Hz.
Measuring range: X/A
3 phase 3 wire 2 position : L1,L2
3 phase 4 wire 3 position : L1,L2,L3
3 phase 4 wire 4 position : L1,L2,L3,OFF
Heat resistance: Case of non-combustible plastic material.Fastening by means of nuts, absolutely safe, fast, robust, side-by-side.
Mounting depth: Max 43mm.
