Home > Products > Fans > SALZER PD80B-220 80X80X25mm Series AC Axial Flow Fans ( TUV, CE Certificate )

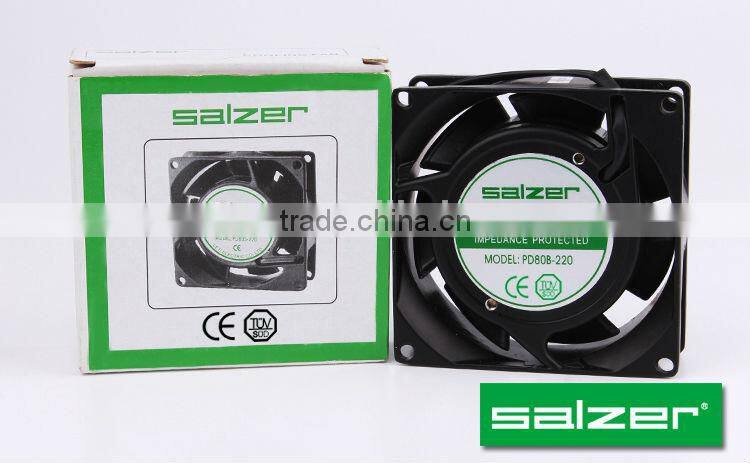

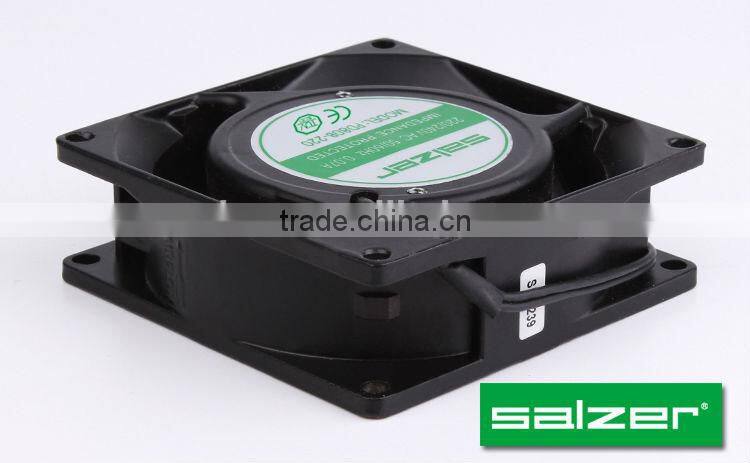

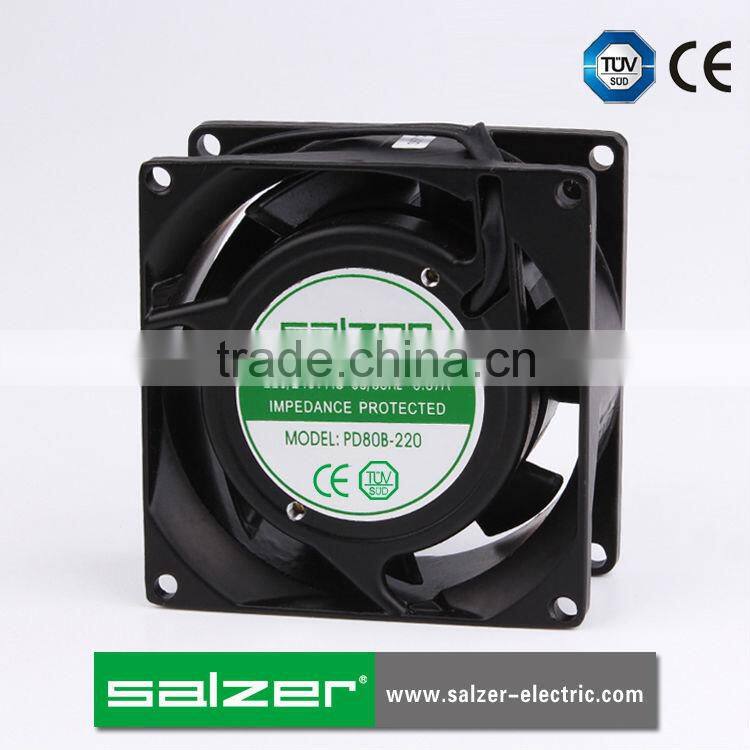

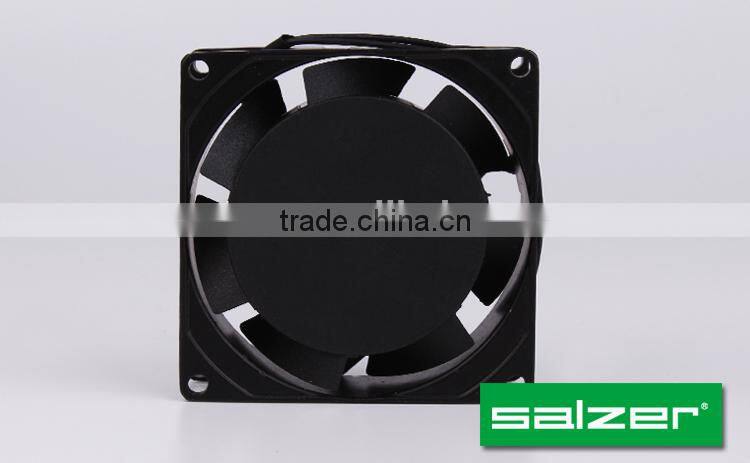

SALZER PD80B-220 80X80X25mm Series AC Axial Flow Fans ( TUV, CE Certificate )

FOB Price

Negotiable

1 (Min. Order)

Port Ningbo Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Other, Plate installation
Blade Material	Other, Plastic(UL94V-0 70%PBT+30%FRP	Place of Origin	Zhejiang, China
Brand Name	SALZER	Model Number	PD80S-110, PD80S-220, PD80B-110, PD80B-220
Voltage	110VAC, 220V	Power	11W, 12W, 15W, 16W
Air Volume	21CFM, 23CFM	Speed	2300RPM, 2800RPM
Certification	CE, Other, CE, TUV

Product Description

Specifications

Dimension:80X80X25mm Series AC Axial Flow Fans
Voltage: 110VAC or 220VAC
Material: Metal frame and Plastic blade
IP54

SALZER PD80B-220 80X80X25mm Series AC Axial Flow Fans

AC Axial Fan General Data

General Information

Electric motor: Shaded pole AC motor design
Frame: The outside frame of the AC axial fan is made of high quality aluminum alloy
Anticorrosive and moisture-proof impeller: UL94V-0, 70% PBT, +30% FRP
Bearing: Sleeve bearing and ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance is more than 100MΩ
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Impedance protection
Operating temperature: -10 ~ +70°C
Storage temperature: -40 ~ +70°C

Ordering Information

80X80X25mm AC Axial Fan

Technical Parameters of AC Axial Fan

Dimension (mm)	Model	Vol- tage (AC)	Freq- uency (Hz)	Current (AMP)	Power (Watts)	Speed (PRM)	Air Flow (CFM)/ M³/min	Pres- sure (Inch/ H₂O)	Noise (dBA)	Weight (Gram)
80X80X25	PD80S-110 PD80B-110	115	50	0.14	15	2300	21/0.59	0.11	22	250
	PD80S-110 PD80B-110	115	60	0.13	11	2800	23/0.65	0.15	26.6	250
	PD80S-220 PD80B-220	230	50	0.08	16	2300	21/0.59	0.11	22	250
	PD80S-220 PD80B-220	230	60	0.07	12	2800	23/0.65	0.15	26.6	250

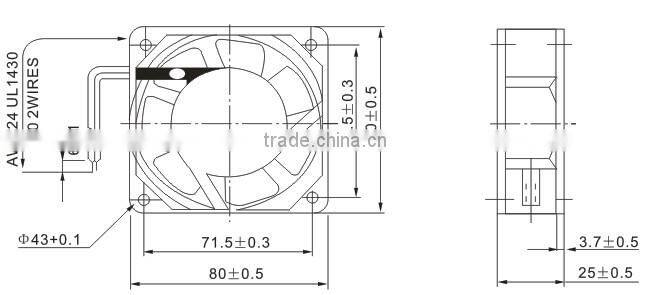

Outline drawing

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
