Home > Products > Fans > SALZER PD120B /S 220-240V UL Certificate (No. E312553) 120X120X38mm AC Axial Flow Fans

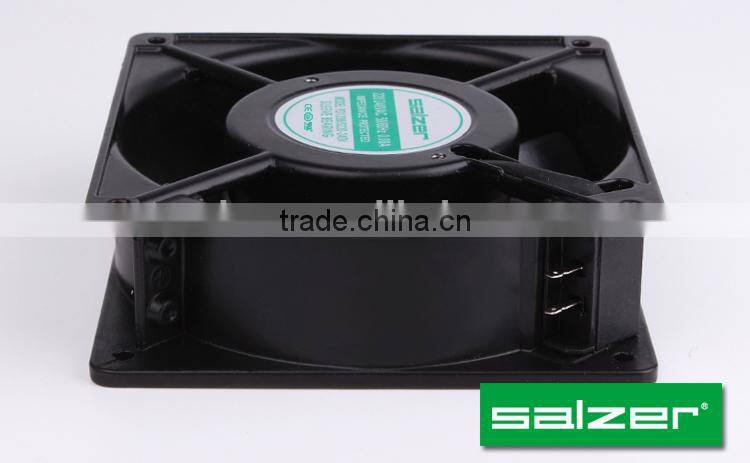

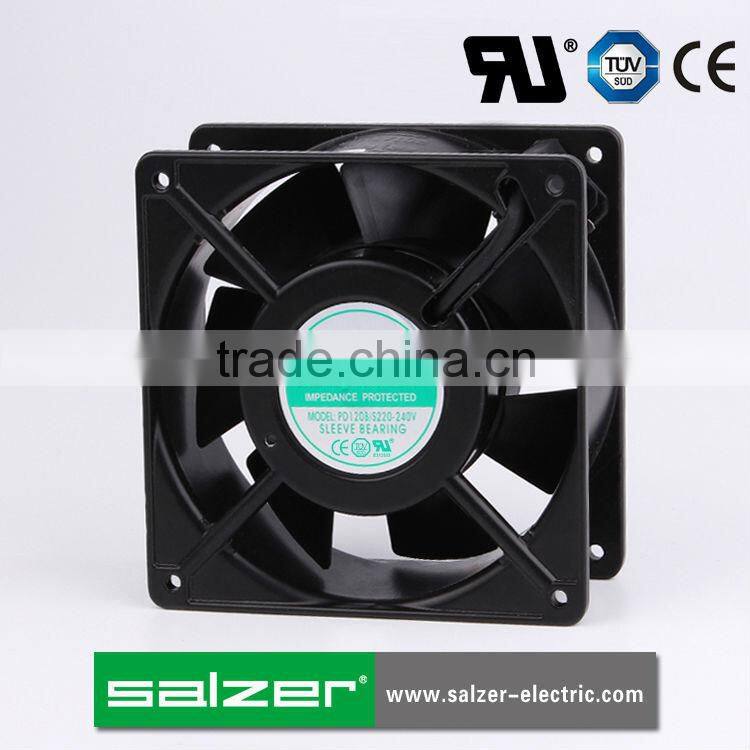

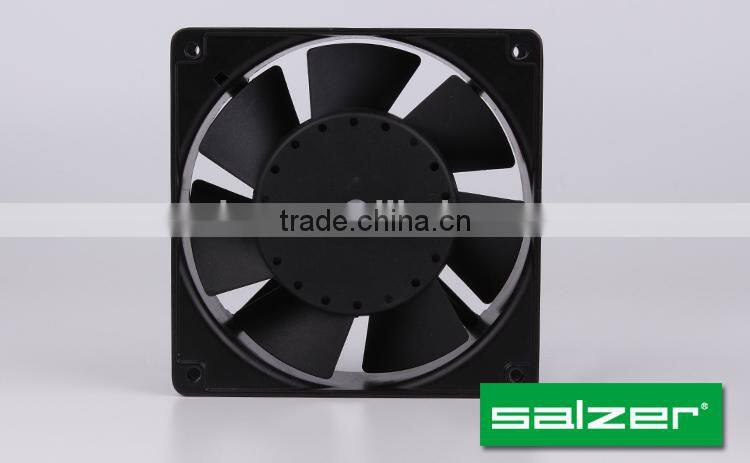

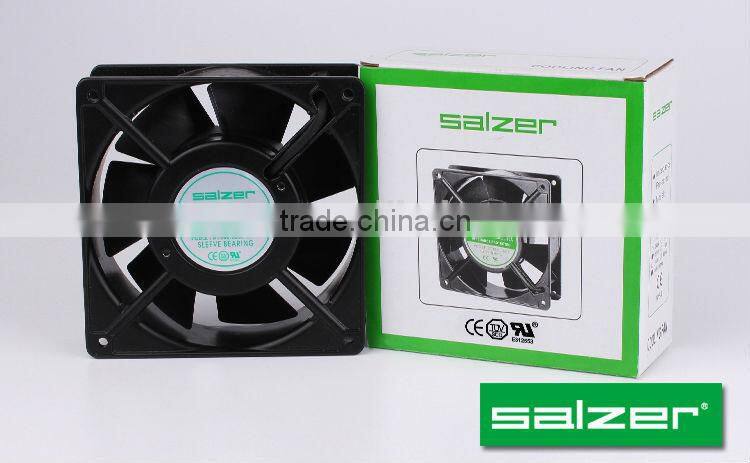

SALZER PD120B /S 220-240V UL Certificate (No. E312553) 120X120X38mm AC Axial Flow Fans

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 50000 Pint / Pints per Month
Port Ningbo Shanghai Port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Other, Plate installation
Blade Material	Other, Plastic(UL94V-0 70%PBT+30%FRP)	Place of Origin	Zhejiang, China
Brand Name	SALZER	Model Number	PD120B S 220-240V
Voltage	110VAC, 220VAC, 380VAC	Power	20W, 25W
Air Volume	87CFM, 108CFM	Speed	2500RPM, 2900RPM
Certification	CE, UL, Other, CE, UL, TUV

Product Description

Specifications

Dimension:120X120X25mm AC Axial Flow Fans
Voltage: 110VAC or 220VAC or 380VAC
Insulation: Class B
IP54

SALZER PD120B/S 220-240V UL Certificate (No. E312553) 120X120X25mm Series AC Axial Flow Fans

AC Axial Fan General Data

General Information

Electric motor: Shaded pole AC motor design
Frame: The outside frame of the AC axial fan is made of high quality aluminum alloy
Anticorrosive and moisture-proof impeller: UL94V-0, 70% PBT, +30% FRP
Bearing: Sleeve bearing and ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance is more than 100MΩ
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Impedance protection
Operating temperature: -10 ~ +70°C
Storage temperature: -40 ~ +70°C

Ordering Information

120X120X38mm AC Axial Fan
This type of axial fan has got UL Certificate (No. E312553).

Technical Parameters of AC Axial Fan

Dimension (mm)	Model	Vol- tage (AC)	Freq- uency (Hz)	Current (AMP)	Power (Watts)	Speed (PRM)	Air Flow (CFM)/ M³/min	Pres- sure (Inch/ H₂O)	Noise (dBA)	Weight (Gram)
120X120X25	PD120S-110 PD120B-110	115	50	0.25	25	2500	87/2.46	0.23	46.5	515
	PD120S-110 PD120B-110	115	60	0.23	20	2900	108/3.05	0.28	52.6	515
	PD120S-220 PD120B-220	230	50	0.14	25	2500	87/2.46	0.23	46.5	515
	PD120S-220 PD120B-220	230	60	0.12	20	2900	108/3.05	0.28	52.6	515
	PD120S-380 PD120B-380	380	50	0.14	25	2500	87/2.46	0.23	46.5	515
	PD120S-380 PD120B-380	380	60	0.12	20	2900	108/3.05	0.28	52.6	515

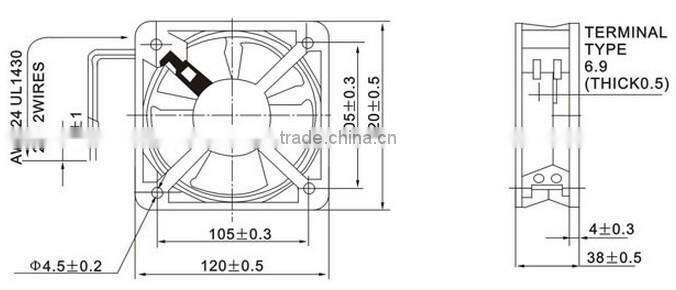

Outline drawing

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
