Home > Products > Fans > SALZER PD225M-220 225X225X80mm TUV CE Approved AC Axial Fans With Metal Impeller IP54

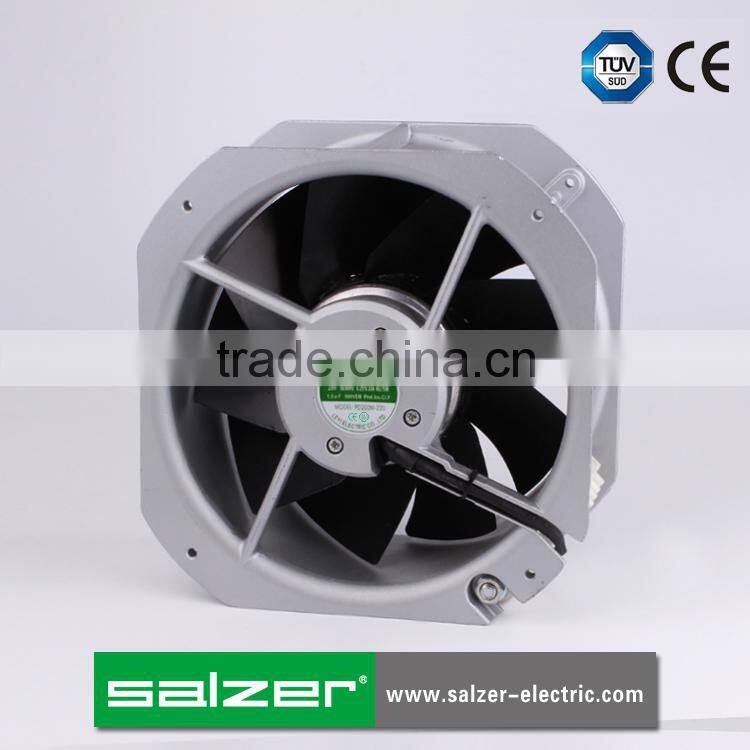

SALZER PD225M-220 225X225X80mm TUV CE Approved AC Axial Fans With Metal Impeller IP54
- Ningbo Shanghai Port
- T/T
You May Like
Product Details
| Electric Current Type | AC | Mounting | Other, Plate installation | |
| Blade Material | Stainless Steel | Place of Origin | Zhejiang, China | |
| Brand Name | SALZER | Model Number | PD225M-110, PD225M-220 | |
| Voltage | 110VAC, 220VAC | Power | 64W, 80W,62W,75W | |
| Air Volume | 546CFM, 608CFM,540CFM,596CFM | Speed | 2450RPM, 2550RPM,2700RPM,2800RPM | |
| Certification | CE, Other, CE, TUV |
Product Description
SALZER PD225M-220 225X225X80mm TUV CE Approved AC Axial Fans with Metal Impeller IP54
AC Axial Fans with Metal Impeller
225X225X80mm AC Axial Fans with Metal Impeller
Ordering Information
General Information
1) Motor: capacitor-run external rotor induction motor
2) Motor protection: thermal protect (standard speed); impedance protection (half/low speed)
3) Insulation resistance: 100MΩ or over with a DC 500V Megger
4) Insulation grade: B; protection grade: IP54
5) Dielectric withstanding voltage: AC 2500V, at 0.5mA, 50/60Hz
6) Allowable ambient temperature range: -20-+90°C(operating);-40- +90°C(storage)
Material of AC Axial Fans
Casing: The casing of the AC axial fans is made of die-cast aluminium
Impeller: Sheet steel (Directly welded into motor and stove-enameled in gray)
Bearing: Ball bearing
Technical Parameters of AC Axial Fans with Metal Impeller
| Dimension (mm) | Model | Vol- tage (AC) | Freq- uency (Hz) | Current (AMP) | Power (Watts) | Speed (PRM) | Air Flow (CFM)/ M3/h | Pres- sure (Pa) | Noise (dBA) | Weight (Gram) |
| 225x225x80 | PD225M-110 | 115 | 50 | 0.58 | 64 | 2550 | 546/925 | 230 | 66 | 2200 |
PD225M-110 | 115 | 60 | 0.70 | 80 | 2800 | 608/1030 | 250 | 62 | 2200 | |
PD225M-220 | 230 | 50 | 0.29 | 62 | 2450 | 540/915 | 220 | 59 | 2200 | |
PD225M-220 | 230 | 60 | 0.33 | 75 | 2700 | 596/1010 | 240 | 61 | 2200 |
Outline drawing
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
