Salzer AC Fan 150X172X51mm
Negotiable
1 (Min. Order)
- Ningbo Shanghai
- T/T D/P D/A Money Gram
You May Like
-
Salzer AC Exhaust Fan DIA.172X51MM TUV, CE Approved
-
SALZER PD120B /S 220-240V UL Certificate (No. E312553) 120X120X38mm AC Axial Flow Fans
-
Salzer AC Ventilation Fan 200X200X61MM TUV, CE Approved
-
Salzer AC Vantilator Fan DIA.220X60mm TUV, CE Approved
-
Salzer AC Fan Meta Blade 120X120X38MM TUV, CE Approved
-
Salzer AC Motor Fan 280X280X80MM TUV, CE Approved
Product Details
| Electric Current Type | AC | Mounting | Other | |
| Blade Material | Other, Plastic(UL94V-0 70%PBT+30%FRP | Place of Origin | Zhejiang, China | |
| Brand Name | SALZER | Model Number | PD157B-110, PD157B-220, PD157B-380 | |
| Voltage | 110V, 220V, 380V | Power | 23W, 25W, 30W, 40W | |
| Air Volume | 180CFM, 195CFM, 201CFM | Speed | 2500RPM, 2700RPM, 2800PRM | |
| Certification | CE, CCC, Other, CE, CCC, TUV |
Product Description
Specifications

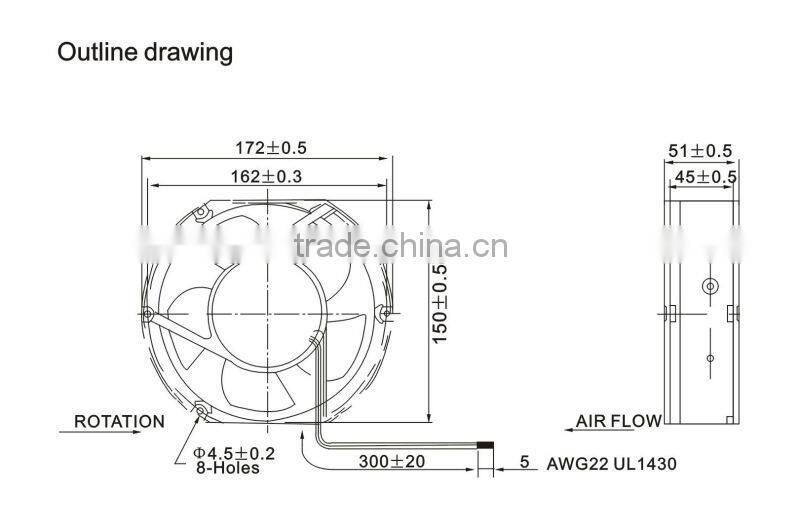

Dimension:150X172X51mmBall bearing type
Voltage: 110VAC or 220VAC or 380VAC
Material: Metal frame and Plastic blade
IP54
Electric motor: Shaded Pole type AC electric motor design
Bearing: Sleeve bearing and Ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance more then 100M6Ω
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Imedance protection
Operating temperature: -10 ~ +70°C
Storage temperature:-40 ~ +70°C
