JY-G30 Offline High Viscosity Gear Oil Purification Filter for Generators With Modular Design

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Dalian Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Jing Yuan
Model Number	JY-G30	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Excellent performance:
JY-G30 Refine filter is an offline oil filtration system, and was equipped with integration circulating pump. It adopted membrane filter element independently developed by Jingyuan, can control the oil contamination level effectively, and filtering particles,colloid and water contained in diesel oil.

Technical Parameters	1	Model Number	JY-G30
	2	Working Pressure	0.2~0.3Mpa
	3	Flow Rate	20~30L/min
	4	Filtration Precision	2,4,7,10,15μm
	5	Filtration Material	Jingyuan Polymer Membrane Material
	6	Size	305×650mm
	7	Service Life of Filter Element	2~3 Year
	8	Warranty for Main Engine	1 Year
Functional Characteristics	1	Its application areas includes hydraulic oil, lubricating oil, gear oil and so on
	2	Modular design can adjust its flow and filter precision according to customers’ requirements
	3	Filtering high viscosity gear oil used in transmission gear box for the wind power generator is particularly effective
Service Life of Membrane Filter Element	Generally, membrane filter element can be used 2~3 years or longer, if the oil is particularly dirty the service life may be shortened. So in order to increase its service life, we should clean and maintain the membrane filter element usually in ordinary time.

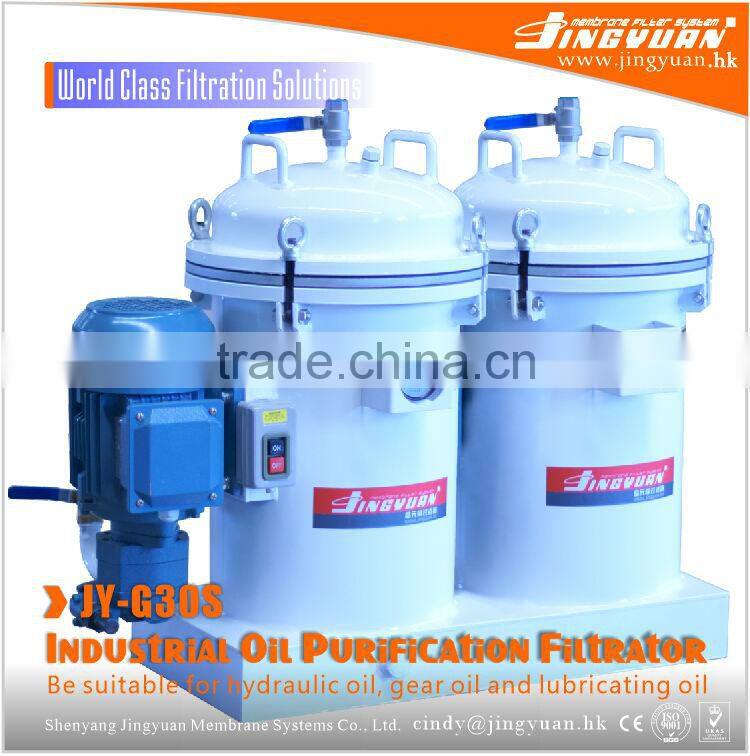

Relative Product: JY-G30S	JY-G30S is an enhanced type gear oil offline refine filter, with the characteristic of emulsified water separation. Size: 800×500×650mm
Why do we filter diesel?	90% of the failure problem of diesel engine is due to dirt and moisture in the diesel. After multiple storage and transportation, the purity of the product will decline. So filtering out the pollutants and water is necessary to restore the purity of the product. Clean diesel makes fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~3 times.

Relative Product:JY-G30S
