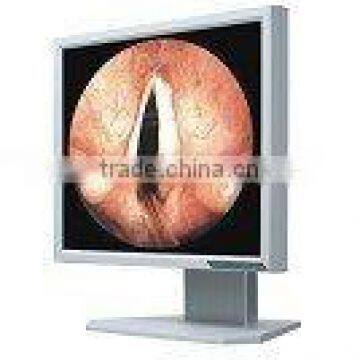

2013 medical monitor
US$ 400 - 600
/ Piece
10 Pieces(Min. Order)
- shenzhen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | user | |
| Model Number | US-MA1901 |
Product Description
Specifications
medical monitorresolution: 1280*1024
visual angle: 178
brightness: 300 nit
contrast: 1500:1
medical monitor
| Specification model | US-MA1901(19'' LCD monitor ,medical grade,special for surgical and endoscope) | |||||||||
| Panel size | 19″active display | |||||||||
| Support color | 16.7M | |||||||||
| Resolution | 1280X1024 | |||||||||
| Dot pitch | 0.294mmX0.294mm | |||||||||
| Viewing angle | 178° V/H @contrast ratio>10 | |||||||||
| Brightness | 300cd/m2 Typ | |||||||||
| Contrast ratio | 1500:1 Typ | |||||||||
| Response time | 8ms Typ | |||||||||
| Video Inputs | ||||||||||
| Analog signal | VGA, CVBS,S-VIDEO,YPbPr,RGB | |||||||||
| Digtital signal | DVI standard | |||||||||
| External connections | ||||||||||
| VGA | D-sub,15 pin | |||||||||
| CVBS | BNC | |||||||||
| S-VIDEO | Din 4 | |||||||||
| YPbPr | BNCX3 | |||||||||
| RGB | BNCX3 | |||||||||
| Digtal input | 24pin DVI-D | |||||||||
| Physical specifications | ||||||||||
| Dimensions | 426(W)X350(H)X67(D) mm( without stand) | |||||||||
| 426(w)x370~470(H)X167(D)mm(with stand) | ||||||||||
| Weight | 5kg (without stand) | |||||||||
| 8kg( with stand) | ||||||||||
| Stand mounting | VESA compatible(100mm spacing) | |||||||||
| Power supply | AC110V~240V | |||||||||
| Power consumption | 100W max | |||||||||
| Power saving | EPA,VESA compliant | |||||||||
| Operating temperature | 0°C to 40°C | |||||||||
| Storage temperature | -20°C to 60°C | |||||||||
| Relative humidity | 10% to 90%, no condensation | |||||||||
| MTBF | >50,000 hours | |||||||||
| Features: | ||||||||||
| 1. Compatible with analog signals and digital signals | ||||||||||
| 2. High contrast | ||||||||||
| 3. High contrase ratio | ||||||||||
| 4. Support 16.7M color | ||||||||||
| 5. 10 Bit signals display and process system | ||||||||||
| 6. Backlight Stabilization | ||||||||||
| 7. The professional base support integrated muti-angle and adjustable height | ||||||||||
| 8. Totally enclosed design,fully waterproof and dustproof | ||||||||||
