Home > Products > CCTV LCD Monitor(Professional) > 15'' CCTV LCD monitor
15'' CCTV LCD monitor
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | USER | |
| Model Number | US-M1501P |
Product Description
Specifications
CCTV LCD monitormetal case panel design,
resolution: 1024x768
composite video input and ouput
VGA/S-Video/DVI/HDMI (option
CCTV LCD monitor

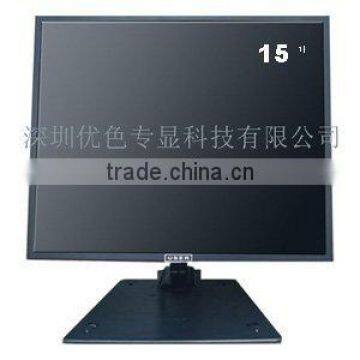

15'' CCTV LCD monitor with metal case panel design, no radiation, professional mainboard card design( 3D digital image process technology). with VGA/AV/S-video/DVI/HDMI input and AV output.
Function features:
1. Lastest anti-glare design
2. Slim and lightweight design, easy to use, beautiful.
3. High-contrast, high brightness
4. With automatic elimination of blur function, protect the LCD screen of the long-term use
5. 16.7M colors, the screen is more natural, delicate.
6. 8ms response time, speed, screen non-tailing.
7. 170° wide visual angle screen, display ratio 4:3
8. 12C bus, the latest control circuit, machine high reliability, good scalability
9 . Multi-level menu display function
10. Built-in power supply, power consumption is low, LCD screen up to 6 thousand hours life.
11. Built-in anti-glare glass screen
12. Adopt 3D digitial processing circuit
13. Rich docking feature AV1/AV2-Video/YPbPr/VGA/HDMI)Rich docking feature
14. Ultra-quiet cooling fan design, machine live longer
15. Using metal case, no radiation
Specification model | US-M1501P | ||
Panel size | 15TFT-LCD | ||
Display area(mm)/mode | 306(W)×230(H) 4:3 | ||
Maximum resolution | 1024×768 | ||
Display color | 16.7M | ||
Pixel Pitch(mm) | 0.297(H)×0.297(V) | ||
Brightness (nits) | 350cd/ | ||
Contrast | 500:1 | ||
Visual angle | 160°/160° | ||
Response time | 8ms | ||
Field frequency | 50Hz60Hz70Hz | ||
Life(hrs) | >60,000(hrs) | ||
Input and output | |||
Composite video input | 2 (BNC×2) | ||
Y,Pb,Pr/Y,Cb,Cr input | 1 (BNC×3) | ||
S-video | 1 | ||
D-15 pin RGB input | 1 | ||
DVI/HDMI | 1 (option | ||
Composite video output | 2 (BNC×2) | ||
Video | |||
Color system | PAL/NTSC/SECAM | ||
OSD display( screen menu display) | |||
Menu language | Chinese/English( multiple language option required) | ||
Power | |||
Power supply | AC100V240V,50/60Hz | ||
Maximum power consumption | 25W | ||
Standby power consumption | 3W | ||
Appearance | |||
Body dimension(Lx W x H)mm | 329.0×258×60 | ||
Panel color/appearance | White, black, customized | ||
Installation | Embedded, wall-mounted,desktop, rack-mounted | ||
