Home > Products > CCTV LCD Monitor(Professional) > 22'' CCTV Monitor (professional/industrial/commercial grade)

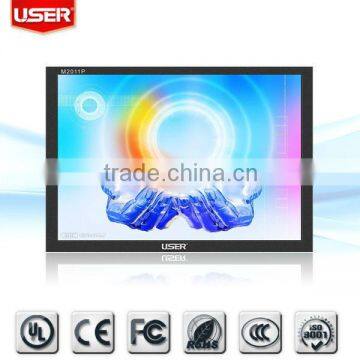

22'' CCTV Monitor (professional/industrial/commercial grade)
US$ 1 - 5
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | user | |
| Model Number | US-M2201P |
Product Description
as test anti-glare design
Slim and lightweight design
High-contrast, high brightness
With automatic elimination of blur function
16.7M colors, the screen is more natural, delicate.
8ms response time, screen non-tailing.
Multi-level menu display function
Built-in anti-glare glass screen
Adopt 3D digitial processing circuit
Rich docking feature (AV1/AV2-Video/YPbPr/VGA/HDMI)
Using metal case, no radiation
Various sizes from 5'' to 82'' available.
| Specification model | US-M2201P | |||||||||
| Panel size | 22″TFT-LCD | |||||||||
| Display area(mm)/mode | 476(W)×298(H) 16:9 | |||||||||
| Maximum resolution | 1680×1050 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.282(H)×0.282(V) | |||||||||
| Brightness (nits) | 300cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 8ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 2 (BNC×2) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 1 (BNC×3) | |||||||||
| S-video | 1 | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| DVI/HDMI | 1 (option) | |||||||||
| Composite video output | 2 (BNC×2) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( multiple language option required) | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=55W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0~50 celsius | |||||||||
| Storage temperature | -20~60 celsius | |||||||||
| Working humidity | 60% | |||||||||
| Storage humidity | 60% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 496.7×323.1×64 | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | metal | |||||||||
| Installation | Embedded, wall-mounted, rack-mounted, desktop | |||||||||
