WINSUN High Power 5V Relay Module 30A Home Appliance Control DC Control AC High Current Relay Module
- Shenzhen
- Credit Card PayPal
You May Like
-
WINSUN 1 Locking 5V Relay Module Single Bistable Switch is a Key Start Stop SCM Control Stable Performance
-
WINSUN 12V Remote Control Switch Super High Sensitivity Vibration Adjustable Time Delay Switch Module Vibration Alarm
-
WINSUN 12V High Sensitivity Vibration Time Delay Switch Module Vibration Alarm 10A Relay
-
WINSUN Factory Direct NE555 Pulse Generator 555 Frequency Output Module Fang Bo Signal Generator
-
WINSUN Factory Direct 2 Way High Power 12V Relay Module 30A Home Appliance Control Large Current Relay Module
-
WINSUN 1 Way Relay Module Can be Set to High Level Trigger Input Terminal 12V Relay Module
Product Description
The module 5V relay, the control current is 30A 220V, can be arbitrarily selected high level trigger orLow level trigger
This module relay is not normally closed, terminal G1 and B1It's always on.
need2 Road 5V high power 30A relay module can open the following link to buy
/item.htm?spm=2013.1.1000774.5.CVVQbH&id=26366428938
need1 road 12V high power 30A relay module can open the following link to buy
/item.htm?spm=a1z10.3.w1017-2434347213.23.2uGpbh&id=16806325619&
relayOutput contact with a double wire, can withstand large current more secure
Product introduction:
1, this module is in line with international safety standards;
2, the use of pine music authentic relay;
3, with power supply and relay indicator, pull off bright, bright;
4, the signal input signal, the public will end and often start conducting;
5, can be used as a microcontroller development board module, can be used as a home appliance control;
6, control the DC or AC signals, can control the 220V AC load;
7, there is a normally open contact, not normally closed end;
8, blue KF301 terminal connected to the control line is more convenient.

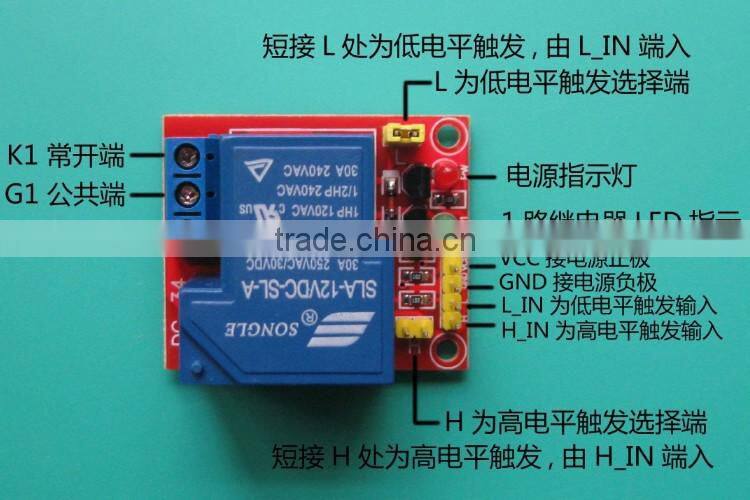

9, H high end trigger selection with H, namely, H_IN high level trigger input
10, the low level of L triggering the end, namely shorted L, L_IN lowtriggerInput
11, VCC is the positive power supply, GNDNegative electrode for power supply.
On the high level and the low level of the trigger instructions, do not understand the friend please look at:
High level trigger refers to the signal input terminal and the ground between the trigger mode, can be understood as the signal input and VCC cathode short-circuit trigger a way;
Low level trigger refers to the signal input terminal and the voltage between the ground for the OV trigger mode, can be understood as a signal input terminal and GND negative short-circuit trigger a way
As a common G1 -- >K1--> for Chang Kaiduan's uncertain closed end
VCC---> connected to 5V power supply cathodeGND---> connected to 5V power cathode

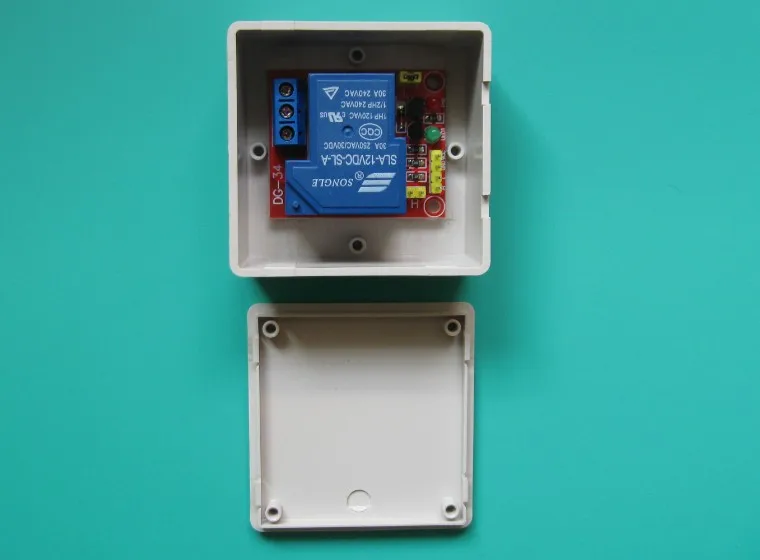

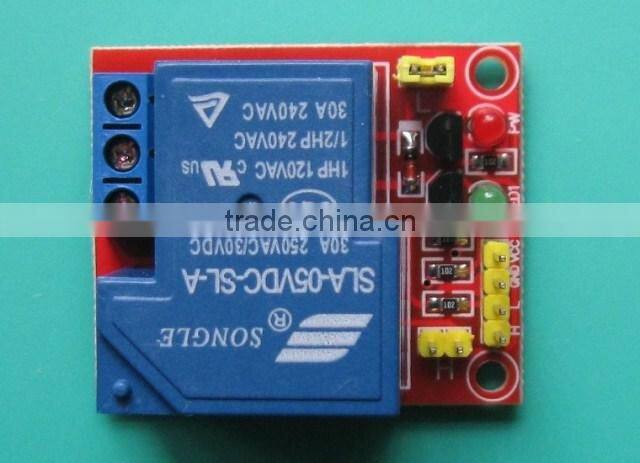

Equisite workmanship,Product front view:

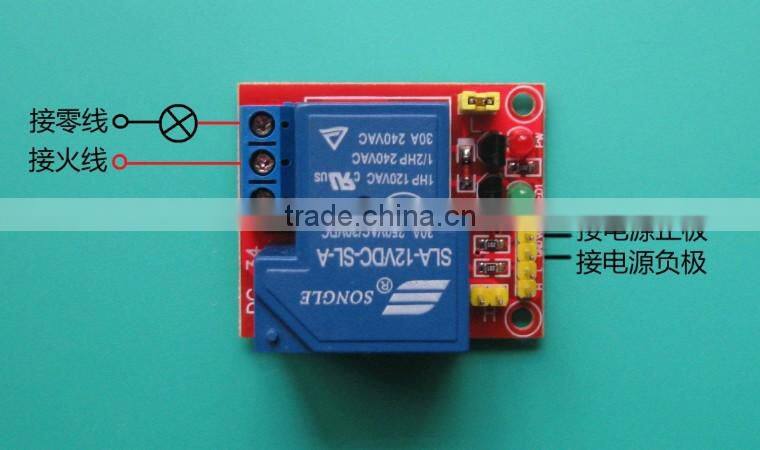

1 way relay module wiring diagram:

Is not a matching bo, but can be installed under the board, you need to open the following link to buy:
/item.htm?spm=0.0.0.31.7iKnmA&id=18427495359
