WINSUN 1 Way 5V Relay Module Can be Set High and Low Level Trigger Relay 5V Control AC 220V

This module is a 5V relay, which can choose the high level trigger.Low level trigger

need1 road12V relay module can open the following link to buy

/item.htm?spm=a1z10.3.17-8129598908.27.CJFYUo&id=17425691467&

need1 road5V high power 30A relay module can open the following link to buy

/item.htm?spm=a1z10.3.17-8129598908.23.CJFYUo&id=21843716823&

Need 1 way 5V self lock relay module can open the following link to buy

/item.htm?spm=a1z10.3.17-8129598908.19.CJFYUo&id=21757200001&

Relay output contact of double wire, can withstand high current safety

Product introduction:

1, this module is in line with international safety standards;

2, the use of pine music authentic relay;

3, with power supply and relay indicator, pull off bright, bright;

4, when the signal input signal, G1 public and K1 often start will lead;

5, can be used as a microcontroller development board module, can be used as a home appliance control;

6, control the DC or AC signals, can control the 220V AC load;

7, there is a K1 normally open and a B1 normally closed contact;

8, blue KF301 terminal connected to the control line is more convenient.

9, H for the high level trigger selection, that is, short connected to the H_IN, H for the high level trigger input

10, L low level trigger selection, that is, short connected to the L_IN, L is lowtriggerInput terminal

11, VCC for the power cathode, GNDNegative electrode for power supply.

On the high level and the low level of the trigger instructions, do not understand the friend please look at:

High level trigger refers to the signal input terminal and the ground between the trigger mode, can be understood as the signal input and VCC cathode short-circuit trigger a way;

Low level trigger refers to the signal input terminal and the voltage between the ground for the OV trigger mode, can be understood as a signal input terminal and GND negative short-circuit trigger a way

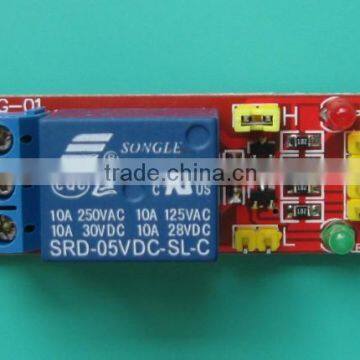

1 way relay module front view:

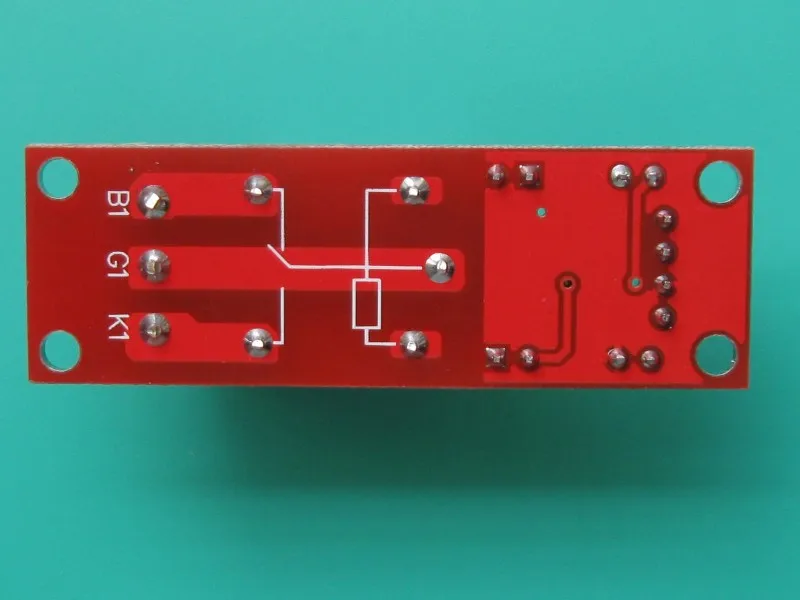

1 road relay module on the back of the map:

B1 / Chang BiduanAs a common G1 -- >K1--> for Chang Kaiduan

VCC---> 5V power supplyGND---> is connected to 5V power supply negative

1 way relay module wiring diagram:

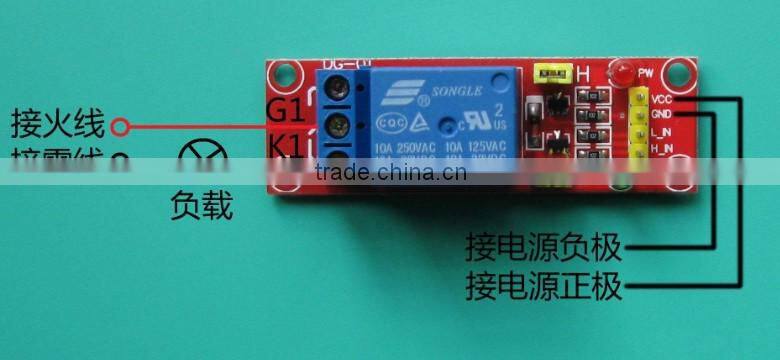

1 way relay module control AC wiring diagram:

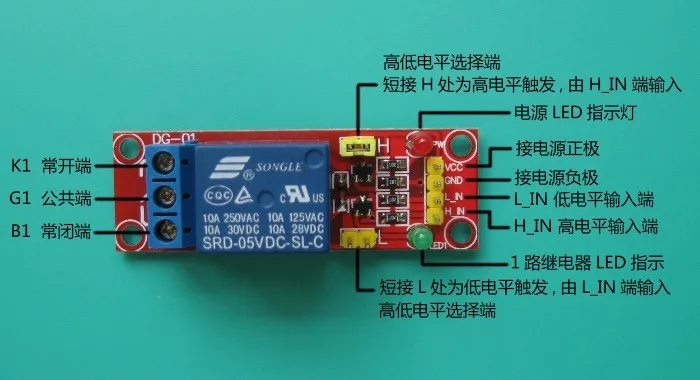

Relay output terminal Pinout:

This method is equivalent to the relay control circuit

1 way relay module control DC equipment wiring diagram:
