EP 51 programming instructions

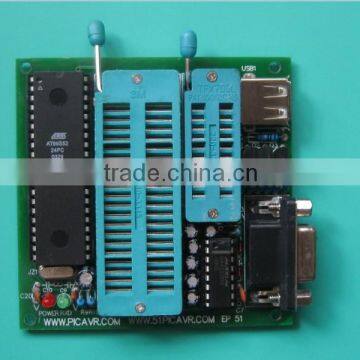

EP programmer using special double deck PCB cartridge type design, can burn ATMEL 51 series single chip, with stable performance, burning speed, high performance price ratio. The hardware adopts the self recovery protection measure, which increases the reliability of the operation of the device.

Support for the chip model

Support the current most classic and market share of the largest ATMEL company productionAT89C51, C52, C55(no suffi)And the latestS51, S52; AT89C1051, 2051, 4051Other chips.East MCU learning networkSpecial line and appearance is the most economic, beautiful and convenient and practical small 51 Microcontroller Programmer, the special sincerity recommended!

Two. Product features

1. The use of serial communication, automatic chip identification and programming in the process of erasing and programming, check all the operation by the programmer monitoring chip AT89S52 control, is not affected by the PC configuration and its frequency.

2 baud rate using high-speed data transfer, after testing, writing a 4K ROM AT89C51 only 9.5S.

3 compact size, eliminating the cumbersome eternal power adapter, the direct use of 5V port USB power supply, easy to carry, very suitable for beginners to learn the requirements of the 51 single-chip microcomputer.

4 software interface is friendly, menu, toolbar, shortcut keys are complete, all Chinese operation, provide encryption function, can protect your creation property right. Can be said to be small but complete!

5 perfect function, withErase,Programming, encryption, and other functions, no read device function; 6.40pin and 20pin locking socket, all devices are all in the foot alignment, no additional jumper. For the dip package chip without requiring any adapter.

Three. Hardware connection

1 serial plug into the computer serial port. (note the COM port number, the default should be connected to COM1, com2 if it is, it should be in later programmer software settings changed to corresponding com. )

USB cable is plugged into the computer either a USB port, and the other end is connected programmer. At this time the programmer power LED light, indicating that the power supply is switched on.

3 then install the software, software supportWin9/me/2000/PStandard Window operator interface. This software is a green software, double clickCD / /EPA51 driver programmer /A51.EELater, in accordance with the desktop prompt step by step to complete the installation, finally, generate A51 programmer desktop icon.
