WINSUN 2 way high power 5V relay module 30A home appliance control AC 220V relay module

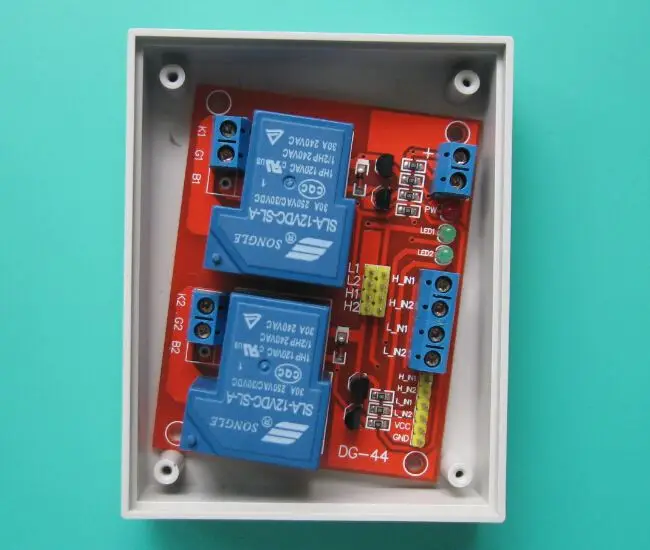

This module is 2 way high power 5V relay module, the control current is 30A 220V, can choose the high level trigger orLow level trigger

This module relay is not normally closed.

need2 Road 12V high power 30A relay module can open the following link to buy

/item.htm?id=19032121719

Relay output contact of double wire, can withstand high current safety

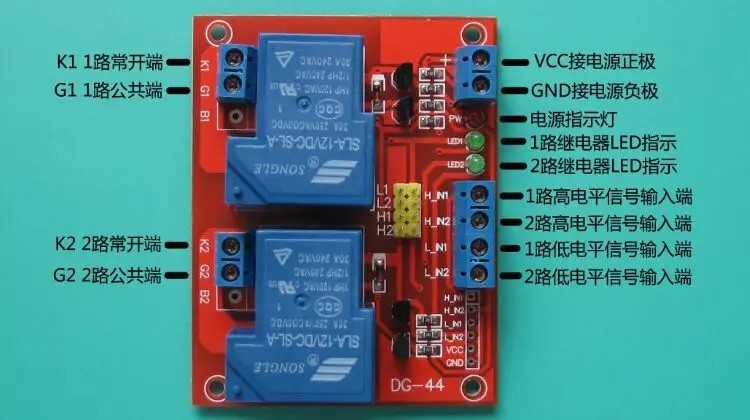

Product introduction:

1, this module is in line with international safety standards, the control area and the load area have isolation tank;

2, the use of pine music authentic relay;

3, with power supply and relay indicator, pull off bright, bright;

4, signal input signal, the public side and often start will lead;

5, can be used as a microcontroller development board module, can be used as a home appliance control;

6, control the DC or AC signals, can control the 220V AC load;

7, there is a normally open contact, there is no often closed end;

8, blue KF301 terminal connected to the control line is more convenient.

9, H for the high level trigger selection, that is, short connected to the H_IN, H for the high level trigger input

10, L low level trigger selection, that is, short connected to the L_IN, L is lowtriggerInput terminal

11, VCC for the power cathode, GNDNegative electrode for power supply.

On the high level and the low level of the trigger instructions, do not understand the friend please look at:

High level trigger refers to the signal input terminal and the ground between the trigger mode, can be understood as the signal input and VCC cathode short-circuit trigger a way;

Low level trigger refers to the signal input terminal and the voltage between the ground for the OV trigger mode, can be understood as a signal input terminal and GND negative short-circuit trigger a way

As a common G1 -- >K1--> for Chang Kaiduan's uncertain closed end

VCC---> connected to 5V power supply cathodeGND---> connected to 5V power cathode

2 way relay module wiring instructions:

Relay module control AC equipment wiring diagram:

Relay module control DC equipment wiring diagram:
