Safety Operation Fuel Oil Pyrolysis Device Waste Plastics Recycling

1. Safety

A. With an auto welding machine for the reactor, it can not only greatly improve working efficiency but also guarantee the quality of welding seam, thus avoid explosion caused by gas leak.

B. Professional heating treatment and x-ray detection chamber are especially for welding.

C. Professional thermometer, pressure gauge and safety valve.

D. It is dangerous to burn exhaust gas (C1 to C4) without any safety measures. In our process, it is transferred first through the safety device and a safety burning air muzzle. Before burning, we should ensure the safety of production.

2. Environmental Friendly

A. Well water de-dusting system can avoid black smoke.

B. The exhaust gas will be recycled for heating reactor, no gas pollution

C. Every junction of the reactor is in good sealing situation with professional sealing material.

3. Long service Life

A. Material: Q245R or Q345 Boiler Steel Plate, thickness 16mm.

B. Welding: Automatic welding machine with heating treatment and x-ray detection will prolong the service life of reactor to the max.

4. Energy Saving

A. Well sealing for heating system, no gas leak and saving fuel.

B. The exhaust gas will be recycled for reactor heating.

5. The total production consumption

A. Power: 120kw/hour in total (but it is not every device start at the same time).

B. Cooling circuit water: 100m³/hour in total (the water can be recirculated and the more the water flow, the better the cooling down).

C. Fuel for heating:

30——40KG coal for processing one ton raw oil for average.

20——30KG diesel for processing one ton raw oil for average.

D. Space for machine: 3000square meter----3500 square meter (the smallest space).

E. Workers or shift: 4 to 6 workers which can be divided by two groups.

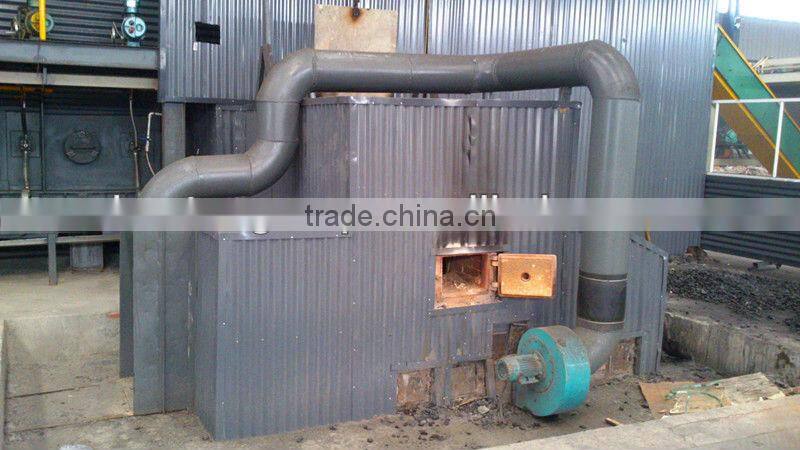

Burner (Furance)

Built at client’s place, with fire-resistant bricks and other construction materials. It can also can be attached with oil burners when need to burn fuel oil or gas to heat the system .

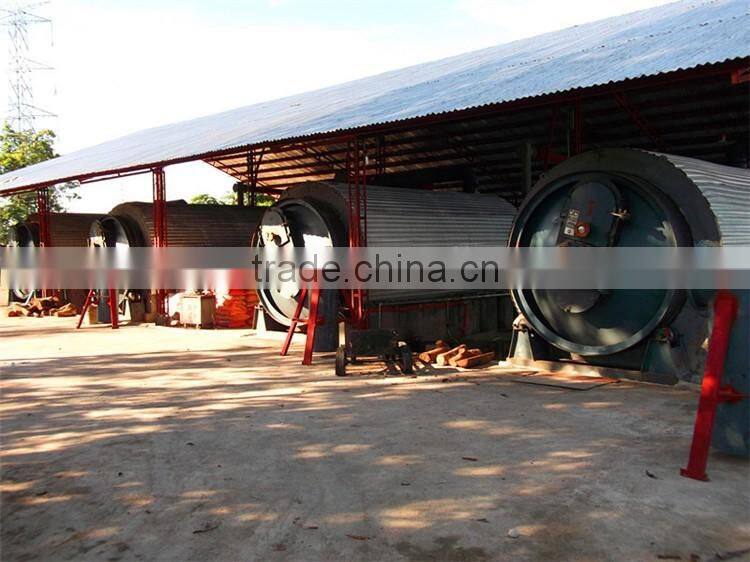

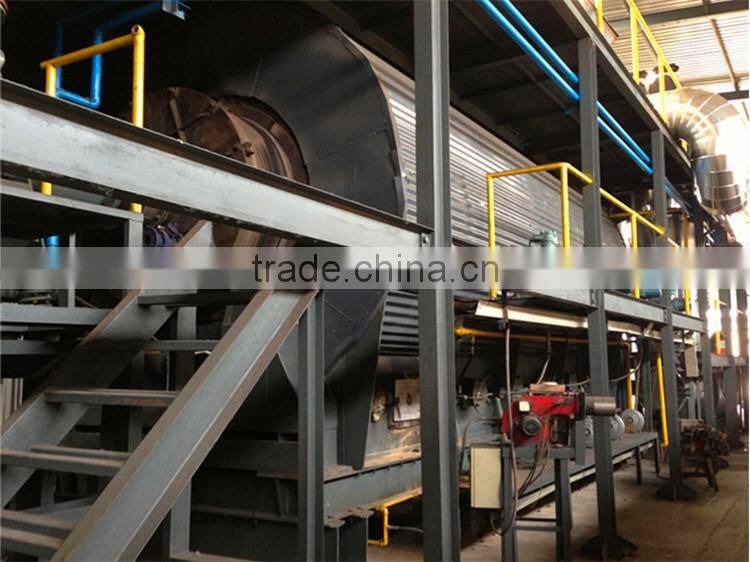

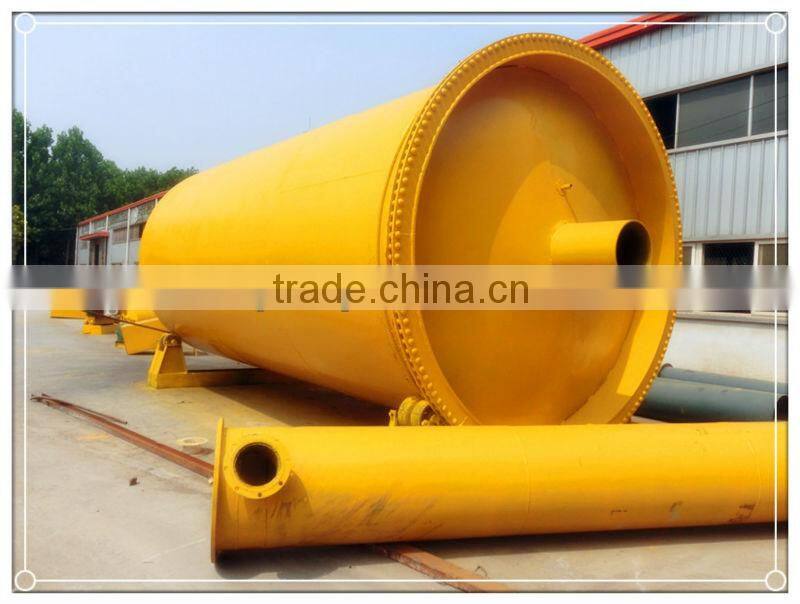

Reactor

Size:2200*6000*12mm  Steel material:Q245R/Q345R

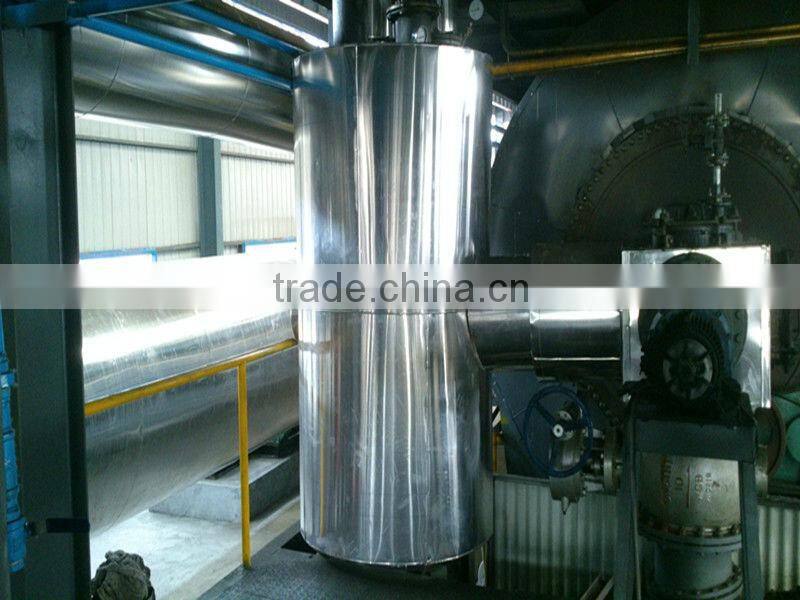

Oil Gas Separator

Size: 700x2500x6mm Steel Material: Q254R

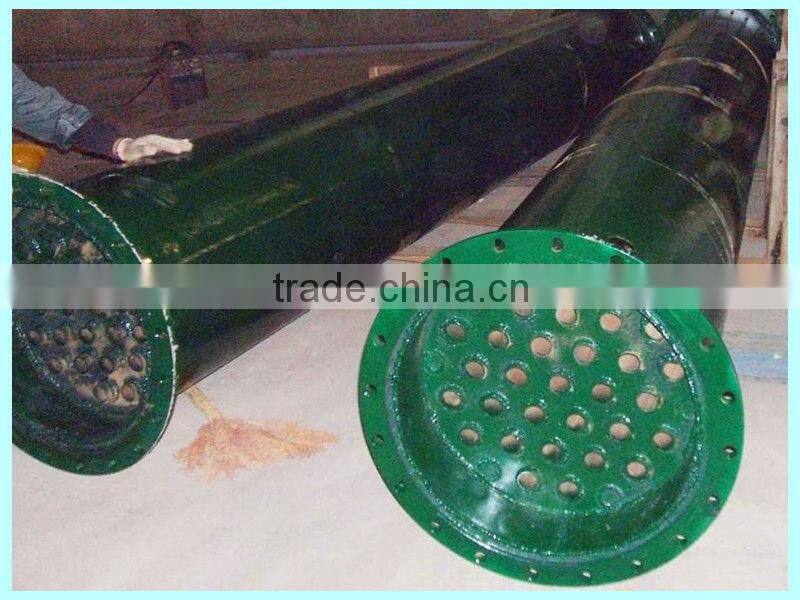

Oil Gas Condensers

Size: 630x6000x6mm  Steel Material: Carbon Steel

Oil Storage Tank

Size:1400x3000x4mm  Steel Material: Carbon Steel  Capacity: 5MT

Water Seal

Size: 950x1500mmSteel Material: Carbon Steel

Purifier and storage tank for extra burning gas, fire and explosion terminator
