Fully Automatic Tyre to Oil Pyrolysis Plant Rubber Recycling With High Efficiency
- Qingdao/lianyungang
- T/T Credit Card
You May Like
-
Plastic Pyrolysis Plant Plastic to Energy Recycling Pyrolysis Machine With CE ISO
-
Full Automatic Tyre Recycle Machine Pyrolysis Used Bottle Recycling Plant
-
Full Automatic Tyre Recycle Machine Cost of Plastic Recycling Machine Waste Tyre Pyrolysis
-
Oil Distillation Recycling Refinery Machinery.china Pyrolysis,crude Oil Refineries
-
Continuous Automatic Pyrolysis Waste Tire Pyrolysis to Oil Machinewith High Oil Yield
-
Hot Selling Continuous Pyrolysis Technology Waste Tire Pyrolysis to Oil Machine With CE
Product Details
| Condition | New | Type | Tire Machine | |
| Tire Machine Type | Tire Recycling Machine | Place of Origin | Henan, China | |
| Brand Name | Beston | Model Number | WJ-8 | |
| Voltage | 220V | Power(W) | 30kw/h | |
| Dimension(L*W*H) | 30*10*10 | Weight | 32MT | |
| Certification | CE,ISO,SGS | Warranty | 12 month, 12 month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Fully automatic tyre to oil pyrolysis plant rubber recycling with high efficiency

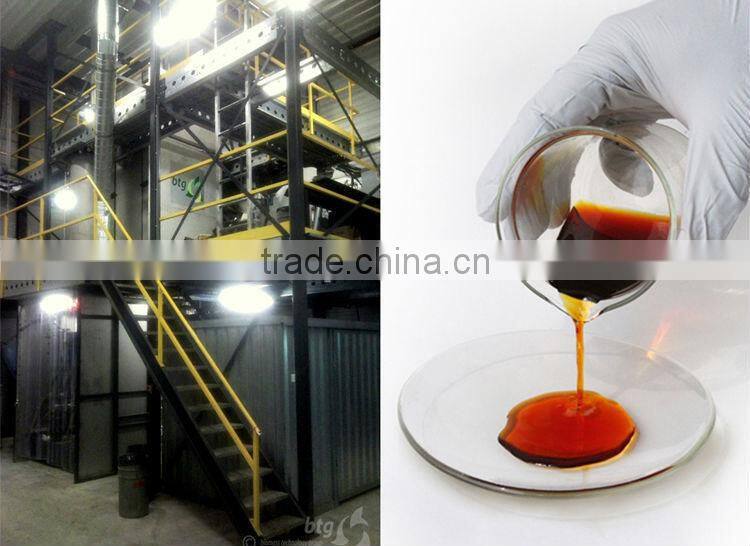

Our pyrolysis machine can convert waste plastic, tyre and rubber etc into fuel oil in normal pressure. In general, we can get 1 ton fuel oil with 2.5 tons waste tyre or plastic, the fuel oil can be refined throught the oil distillation machine to the deisel, gasoline, and machine oil. Zero emission, high effiency, our pyrolysis plant not only can resolve the problem of the waste plastic/tyre and pollution, but also can bring substantial benefits for you. We can also supply
• Used Oil Distillation Plant
• Carbon Black Processing Plant

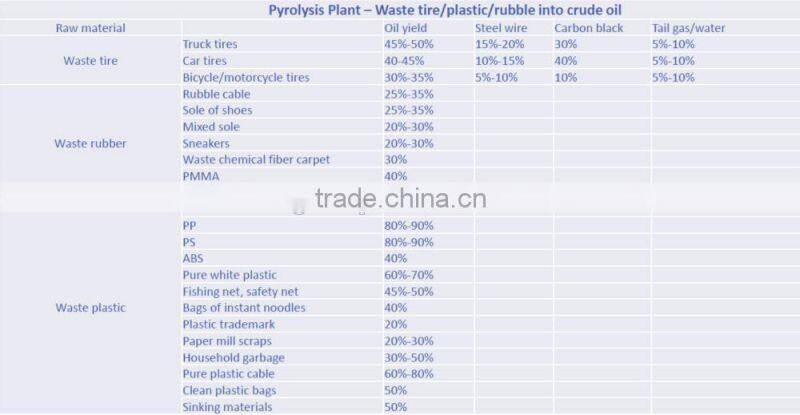

Raw Material
Technical Specification
| Model | WJ-6 | WJ-8 | WJ-9 |
Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
24-hour disposal amount | 6 tons | 10 tons | 20 tons |
Rotate speed ofmain machine | 0.4 turn/minute | 0.4 turn/minute | 0.4 turn/minute |
Power | 24kw | 30kw | 54kw |
Consumption of cooling water(T/h) | 2.5 | 6 | 6 |

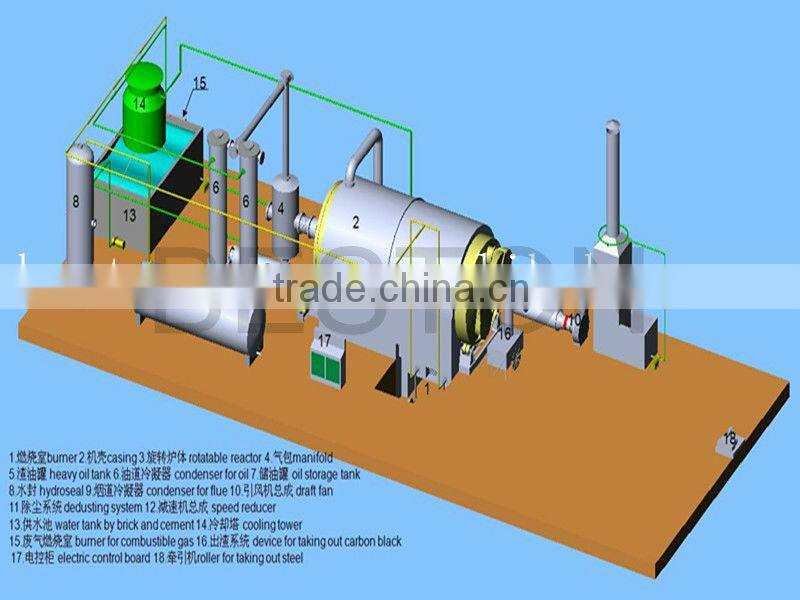

3D Layout

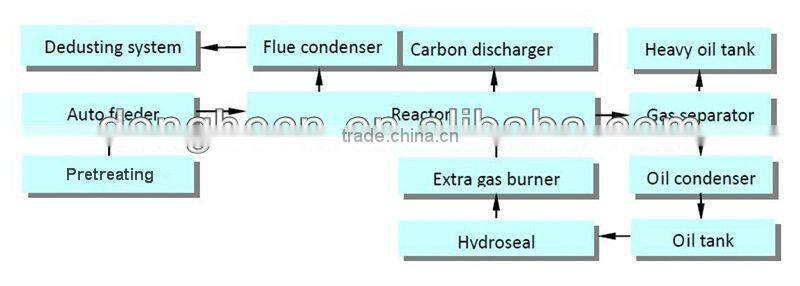

Flow Chart about the fully automatic tyre pyrolysis plant with ISO CE and SGS
Burner (Furance)
Built at client’s place, with fire-resistant bricks and other construction materials. It can also can be attached with oil burners when need to burn fuel oil or gas to heat the system .
Reactor
Size:2200*6800*16mm Steel material:Q245R/Q345R
Oil Gas Separator
Size: 700x2500x6mm Steel Material: Q254R
Oil Gas Condensers
Size: 630x6000x6mm Steel Material: Carbon Steel
Oil Storage Tank
Size:1400x3000x4mm Steel Material: Carbon Steel Capacity: 5MT
Water Seal
Size: 950x1500mmSteel Material: Carbon Steel
Purifier and storage tank for extra burning gas, fire and explosion terminator

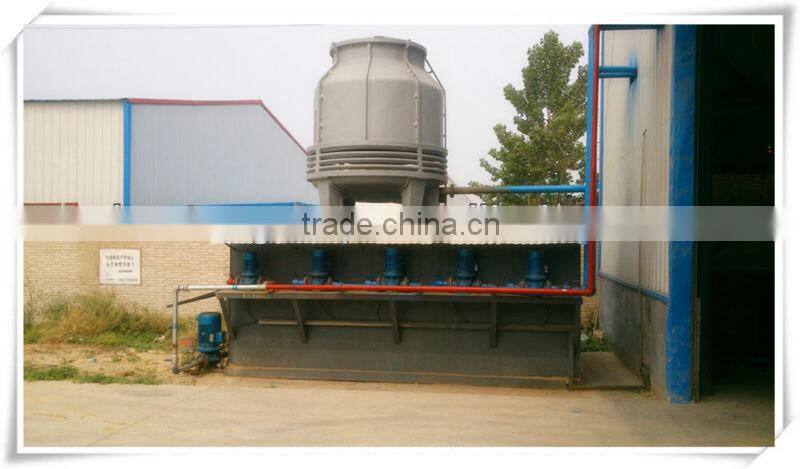

Cooling Tower
Capacity: 57M3/H Hight: 2830mm Max Diameter: 2215mm Air Quantity: 28000 M3/H Diameter of Fan: 1400mm

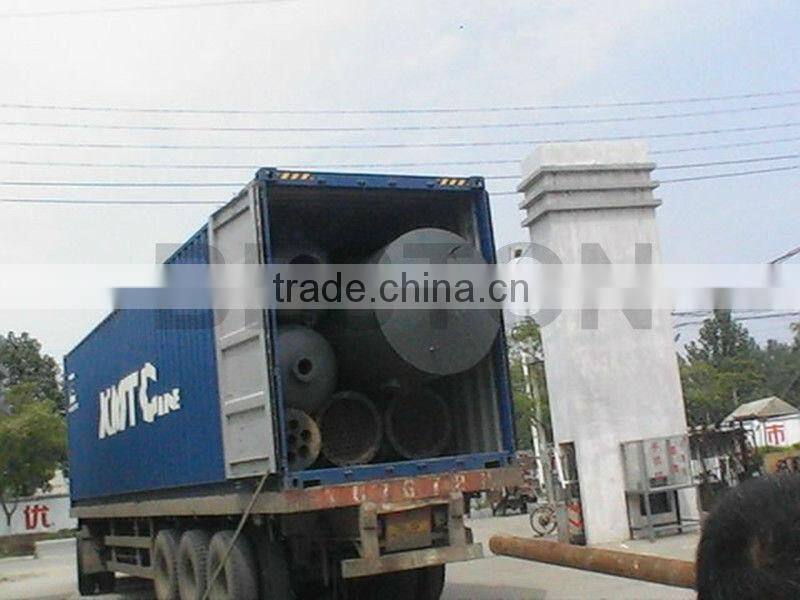

1x40 HC+1x40FR are needed
30 working days for delivery after first payment.
•Machinery installation and worker training , till you can run the factory smoothly.
•12 months guarantee period.
•Regular phone call visiting and technology updating.
•Free catalyst offering for one month's running.
•Free wear parts offering for one month's running.

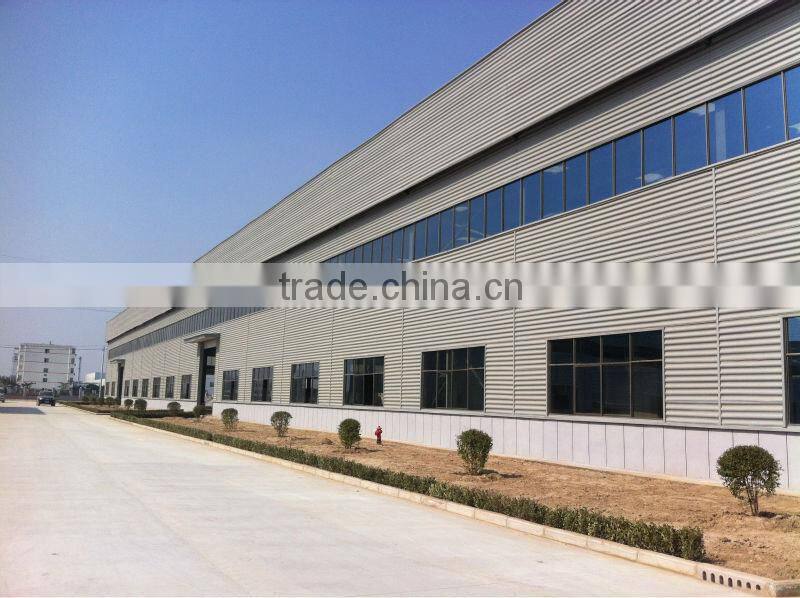

Production Machinery
| Name | Model | Quatity | Number of years |
Manpulator | YUEDA-CZ 3 | 2 | 4.0 |
ARC-Submerging Welder | Zhengzhou&2.5-1000 | 8 | 2.0 |
Veneer Reeling Machine | W11-1.2x2000 | 2 | 2.0 |

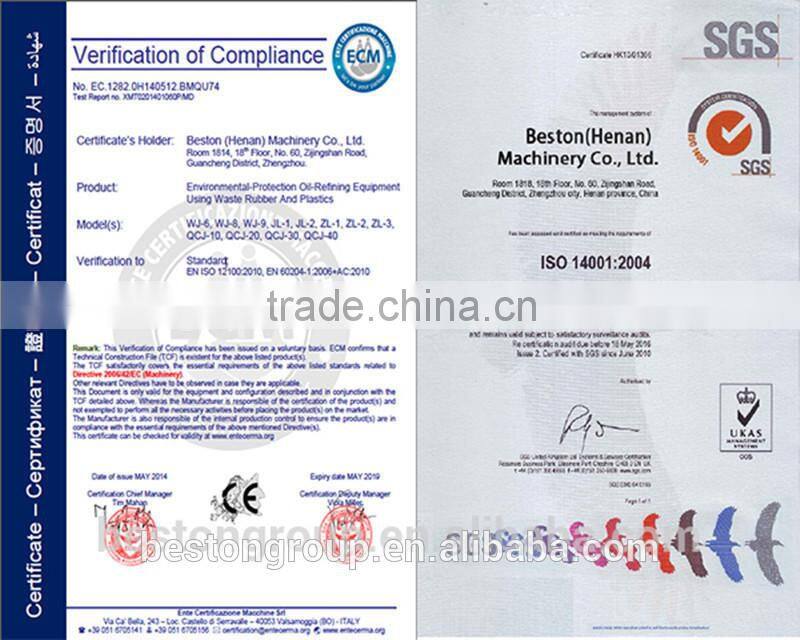

Certifications
