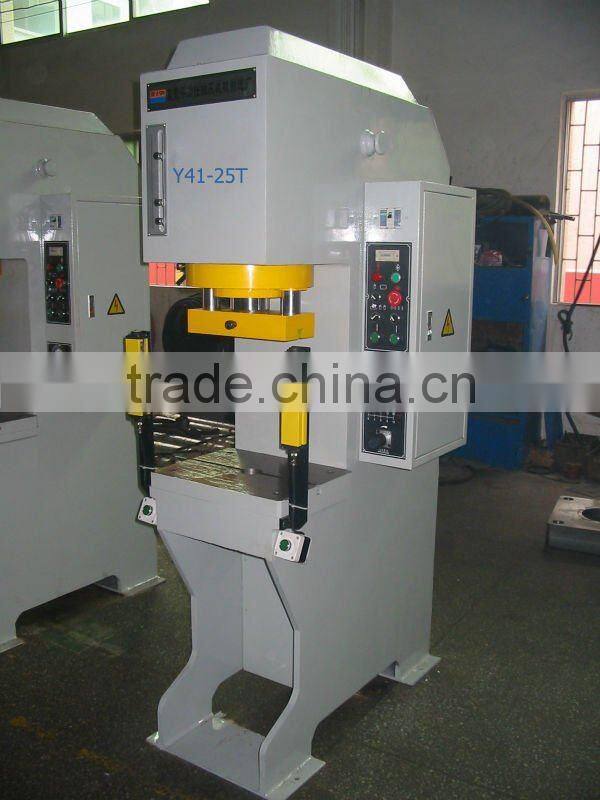

Hydraulic Deep Drawing Press

type

Unit

1T

2.5T

6.3T

10T

16T

25T

40T

63T

Nominal force

KN

10

25

63

100

160

250

400

630

The maximun working pressure of the fluid

MPa

4.5

4.5

5.1

5.8

13

20.5

23

18.5

The maximum open height

mm

300

300

450

500

550

600

700

800

The maximum stroke of the slipper

mm

120

160

250

300

350

350

400

500

Slippe speed

Down velocity of the slipper

mm/s

60

60

85

85

110

110

85

85

The working velocity of the slipper

mm/s

7-15adjustable

Return velocity of the slipper

mm/s

120

120

120

120

120

120

120

120

Throat depth

mm

100

160

250

250

280

280

300

300

The size of the working platform

Front,Rear

mm

300

300

420

420

500

500

550

580

Left,Right

mm

400

400

450

450

550

600

600

600

The height of the working platform to the surface of the floor

mm

730

730

730

730

730

730

730

730

The size for the cutting hole

mm

70

70

80

80

100

100

100

100

The power for motors

kw

1.1

2.2

2.2

3

5.5

5.5

5.5

7.5

The configuration size of the machine tool

Front,Rear

mm

530

730

1000

1100

1150

1200

1200

1550

Left,Right

mm

500

550

730

800

800

830

900

1050

The height above the floor

mm

1455

1600

1800

1900

2100

2300

2400

2680

Total weight

1. How about your machine quality?We are worry about the quality.

RE: New Fuli  is a nature brand in CHINA,through our 30 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

2. Whether the machine price can be more discount

RE:1.New Fuli always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

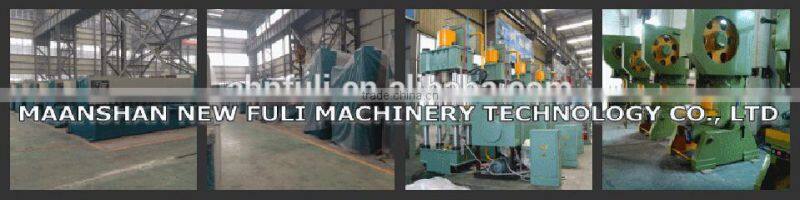

3. How about your manufactory in CHINA

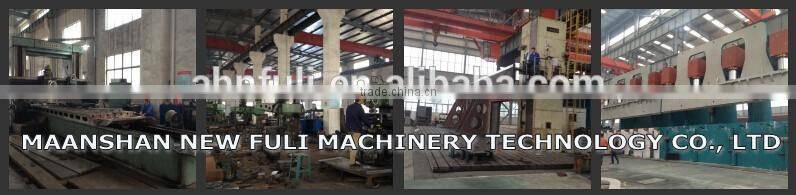

RE:New Fuli  located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

We welcome your visit to us any time.
