ChinaHome > Products > Pneumatic Forging Hammer > Air Hammer C41-75KG Blacksmith Hammer

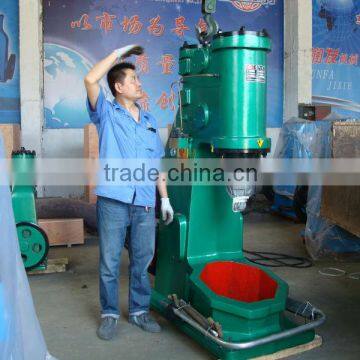

Air Hammer C41-75KG Blacksmith Hammer
- 20 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | C41-75KG | |
| Voltage | 380 | Power(W) | 7.5 | |
| Dimension(L*W*H) | 1600x950x1950 | Weight | 2800 | |
| Certification | ISO 9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
simple structureEasy operation
Stable function
Motion agility
High precision
air hammer
| Item | unit | Numerical Value | |||||
1 | Weight of falling parts | kg | 16 | 20 | 25 | 40 | 75 | |
2 | Maximum blow energy | kgf.m | 180 | 220 | 270 | 530 | 900 | |
3 | Distance from center of die to frame | mm | 150 | 180 | 200 | 235 | 300 | |
4 | Distance between top and bottom die | mm | 180 | 200 | 240 | 245 | 300 | |
5 | Number of blows per minute | min-1 | 258 | 270 | 250 | 245 | 210 | |
6 | Dimension of top to bottom | mm | 70x30 | 90x50 | 100x50 | 120x50 | 145x65 | |
7 | Diameter of the working cylinder | mm | 115 | 150 | 165 | 200 | 235 | |
8 | Diameter of the compressing cylinder | mm | 125 | 155 | 170 | 205 | 240 | |
9 | Travel distance of malleus | mm | 210 | 200 | 275 | 290 | 345 | |
10 | Travel distance of plunger | mm | 120 | 130 | 140 | 154 | 200 | |
11 | Forges | Round | mm |
| Φ35 | Φ45 | Φ68 | Φ85 |
Square | mm |
| 30 | 40 | 52 | 65 | ||
12 | Motor | Power | kw | 1.5 | 2.0 | 2.2 | 4.5 | 7 |
Rotate speed | rpm |
| 1440 | 1440 | 1440 | 1440 | ||
13 |
Outside Size | Length | mm | 584 | 670 | 800 | 1080 | 1600 |
Width | mm | 390 | 360 | 410 | 600 | 950 | ||
High | mm | 952 | 1050 | 1213 | 1389 | 1950 | ||
14 | Anvil block weight | kg |
| 190 | 247 | 400 | 850 | |
| Hammer weight | kg | ~220 | ~500 | ~720 | ~1400 | ~2800 | |
This air hammer is widely used for general Forging works,such as drawing-out,upsetting,punching,chiseling,forge,welding,bending and twisting,it is also used for forge in bolster dies.
