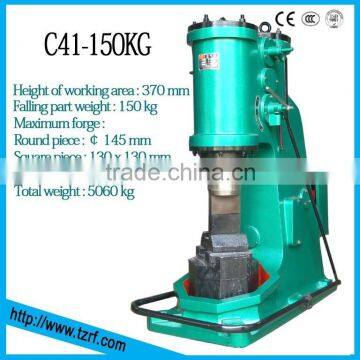

Blacksmith Air Forging Hammer C41-150KG
- 128 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HeLi | Model Number | C41-150KG | |
| Voltage | 380V/440V/415V | Power(W) | 15000 | |
| Dimension(L*W*H) | 2080x1240x2350mm | Weight | 5060kg | |
| Certification | CE | Warranty | 12months | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
1.safe and stable2.efficient and convenient
3.easily opertation and installation
lide,practical and time-tested
TECHNICALSPECIFICATIONS | |||||||||||||
No. | Name. | Unit | C41-6 | C41-16 | C41-20 | C41-25 | C41-40 | C41-55 | C41-75 | C41-150 | C41-250 | ||
1 | Weight of falling parts | Kg | 6 | 16 | 20 | 25 | 40 | 55 | 75 | 150 | 250 | ||
2 | Max. hit energy | Kj | 0.066 | 0.18 | 0.22 | 0.27 | 0.53 | 0.7 | 1 | 2.2 | 5.6 | ||
3 | Hit number | min -1 | 248 | 258 | 255 | 250 | 245 | 230 | 210 | 180 | 150 | ||
4 | Distance from bottom die surface to bottom surface of lead | mm | 175 | 180 | 200 | 240 | 245 | 265 | 300 | 370 | 450 | ||
5 | Tup axis to hammer body | mm | 100 | 150 | 180 | 200 | 235 |
| 300 | 360 | 430 | ||
6 | Dimension of top and bottom die surface | mm |
| 70x40 | 90x50 | 100x50 | 120x50 | 120x55 | 145x65 | 200x85 | 220x100 | ||
7 |
Maximum forge | Round piece | mm |
| 22 | 35 | 45 | 68 | 68 | 85 | 145 | 175 | |
Square piece | mm |
| 20x20 | 30x30 | 40x40 | 52x52 | 52x52 | 65x65 | 130x130 | 145x145 | |||
8 | Distance from bottom die surface to base | mm |
| 307 | 407 | 436 | 555 | 568 | 746 | 735 | 750 | ||
9
|
Motor | Type |
|
|
|
|
|
|
|
|
| 180L-4 | |
Rate power | kw | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 | 22 | |||
speed | r.p.m | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1470 | |||
10 | Overall dimension | mm | 480x340x670 | 660x420x970 | 820x460x1110 | 900x510x1200 | 1080x600x1430 | 1320x670x1620 | 1400x760x1950 | 2080x1240x2350 | 2875x1405x2570 | ||
11 | Anvil weight | Kg | ------- | --------- | 190 | 250 | 400 | 600 | 850 | 1800 | 2950 | ||
12 | Total weight | Kg | 126 | 240 | 500 | 760 | 1350 | 1700 | 2800 | 5060 | 8200 | ||
