Air Hammer

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	HELI
Model Number	C41-16KG C41-20KG C41-25KG C41-25KG C41-40KG C41-55KG C41-75KG C41-150		Type	Air Hammer

Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge,and so on

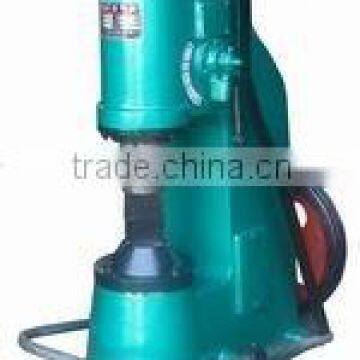

air hammer

	Item		unit	Numerical Value
1	Weight of falling parts		kg	16	20	25	40	75
2	Maximum blow energy		kgf.m	180	220	270	530	900
3	Distance from center of die to frame		mm	150	180	200	235	300
4	Distance between top and bottom die		mm	180	200	240	245	300
5	Number of blows per minute		min-1	258	270	250	245	210
6	Dimension of top to bottom		mm	70x30	90x50	100x50	120x50	145x65
7	Diameter of the working cylinder		mm	115	150	165	200	235
8	Diameter of the compressing cylinder		mm	125	155	170	205	240
9	Travel distance of malleus		mm	210	200	275	290	345
10	Travel distance of plunger		mm	120	130	140	154	200
11	Forges	Round	mm		35	45	68	85
11	Forges	Square	mm		30	40	52	65
12	Motor	Power	kw	1.5	2.0	2.2	4.5	7
12	Motor	Rotate speed	rpm		1440	1440	1440	1440
13	Outside Size	Length	mm	584	670	800	1080	1600
		Width	mm	390	360	410	600	950
		High	mm	952	1050	1213	1389	1950
14	Anvil block weight		kg		190	247	400	850
	Hammer weight		kg	~220	~500	~720	~1400	~2800
