24KV 280PF 281 ac high voltage ceramic capacitor
- Ningbo
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | AnXon ac high voltage ceramic capacitor | |
| Model Number | CT85 ac high voltage ceramic capacitor | Type | Ceramic Capacitor | |
| Application | Hight Voltage | Package Type | Through Hole | |
| Capacitance | 280PF ac high voltage ceramic capacitor | Rated Voltage | 24KV ac high voltage ceramic capacitor | |
| Operating Temperature | -30C ~ 85C |
Product Description
1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate
6, World class customers experience

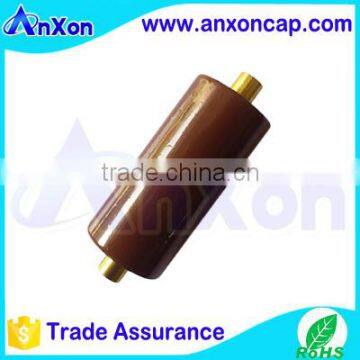

Product Name: 24KV 280PF 281 ac high voltage ceramic capacitor
High Voltage Ceramic Capacitor 24KV 280PF, Molded type Ultra-high Voltage Ceramic Capacitors 24KVAC, 24KVrms 280P high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: | 24KV 280PF, 24KV 280P |
AnXon P/N | AXCHV24P281KAB |
Tolerance: | K, ±10% |
Type: | Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : | Y5P |
Operating Temperature: | -30C ~ 85C |
Size / Dimension(ΦD×T*H): | D:25mm, H:80mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. | Rated Spec | Testing voltage | Partial discharge | Dissipation factor | Dimension(mm) | ||
kVdc | kV/1min |
| 1kHz/1V | D | H | M | |
AXCHV10DL251KDB | 10KV 250PF | DC15KV AC10KV | AC5KV<5PC | ≤0.1% | 20 | 16 | M4X4 |
AXCHV10DL441KDB | 10KV 440PF | 20 | 20 | M4X4 | |||
AXCHV10DL561KDB | 10KV 560PF | 20 | 20 | M4X4 | |||
AXCHV10DL122KDB | 10KV 1200PF | 24 | 20 | M4X4 | |||
AXCHV10DL282KDB | 10KV 2800PF | 38 | 20 | M4X4 | |||
AXCHV10DL502KDB | 10KV 5000PF | 52 | 20 | M5X4 | |||
AXCHV10DL802KDB | 10KV 8000PF | 58 | 20 | M5X4 | |||
AXCHV10DL103KDB | 10KV 10000PF | 80 | 20 | M5X4 | |||
AXCHV10DL203KDB | 10KV 20000PF | 80 | 20 | M5X4 | |||
HV Capacitor Application Guide
