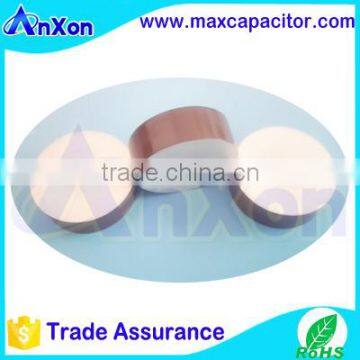

40KV 2000PF 202 no epoxy coating ceramic capacitor
- 2000 Piece / Pieces per Month
- Ningbo
- Credit Card
You May Like
-
80KV 280PF 281 high voltage doorknob Y5P ceramic capacitor
-
28KV 4000PF 402 75KV impulse Y5T ceramic capacitor
-
35KV 6000PF 602 High voltage doorknob Z5V ceramic capacitor
-
35KV 3000PF 302 High voltage Z5U ceramic capacitor
-
30KV 3000PF 302 X-ray generator Z5T ceramic capacitor
-
20KV 6800PF 682 High voltage disc type Y5V ceramic capacitor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | AnXon no epoxy coating ceramic capacitor | |
| Model Number | CT8G no epoxy coating ceramic capacitor | Type | Ceramic Capacitor | |
| Application | Hight Voltage | Package Type | Through Hole | |
| Capacitance | 2000PF no epoxy coating ceramic capacitor | Rated Voltage | 40KV no epoxy coating ceramic capacitor | |
| Operating Temperature | -30C ~ 85C |
Product Description
1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate
6, World class customers experience
Product Name: 40KV 2000PF 202 no epoxy coating ceramic capacitor
High Voltage Ceramic Capacitor 40KV 2000PF, Molded type Ultra-high Voltage Ceramic Capacitors 40KVAC, 40KVrms 202 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: | 40KV 2000PF , 40KV 202 |
AnXon P/N | AXCHV40DL202KDB |
Tolerance: | K, ±10% |
Type: | Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : | N4700 |
Operating Temperature: | -30C ~ 85C |
Size / Dimension(ΦD×T*H): | D:50mm, H:17mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. | Rated Spec | Testing voltage | Partial discharge | Dissipation factor | Dimension(mm) | ||
kVdc | kV/1min |
| 1kHz/1V | D | H | M | |
AXCHV40DL441KDB | 40KV 440PF | DC60KV AC40KV | AC20KV<8PC | ≤0.1% | 30 | 32 | M4X6 |
AXCHV40DL561KDA | 40KV 560PF | 30 | 32 | M4X6 | |||
AXCHV40DL701KDB | 40KV 700PF | 38 | 36 | M4X6 | |||
AXCHV40DL132KDB | 40KV 1300PF | 40 | 36 | M5X6 | |||
AXCHV40DL152KDA | 40KV 1500PF | 52 | 36 | M5X6 | |||
AXCHV40DL172KDB | 40KV 1700PF | 52 | 36 | M5X6 | |||
AXCHV40DL202KDB | 40KV 2000PF | 52 | 30 | M5X6 | |||
AXCHV40DL202KDB | 40KV 2000PF | 58 | 36 | M5X6 | |||
AXCHV40DL332KDB | 40KV 3300PF | 60 | 38 | M8X8 | |||
AXCHV40DL402KDB | 40KV 4000PF | 70 | 38 | M8X8 | |||
AXCHV40DL452KDB | 40KV 4500PF | 70 | 38 | M8X8 | |||
AXCHV40DL502KDB | 40KV 5000PF | 80 | 38 | M8X8 | |||
AXCHV40DL552KDB | 40KV 5500PF | 80 | 38 | M8X8 | |||
AXCHV40DL802KDB | 40KV 8000PF | 106 | 38 | M8X10 | |||
AXCHV40DL103KDB | 40KV 10000PF | 98 | 150 | M8X10 | |||
AXCHV40DL203KDB | 40KV 20000PF | 98 | 225 | M8X10 | |||
