Home > Products > Dip Power 5mm LED > Max Bright 8-9lm 6500-7000K 4.8mm Strawhat LED 0.06W 3500-4000MCD

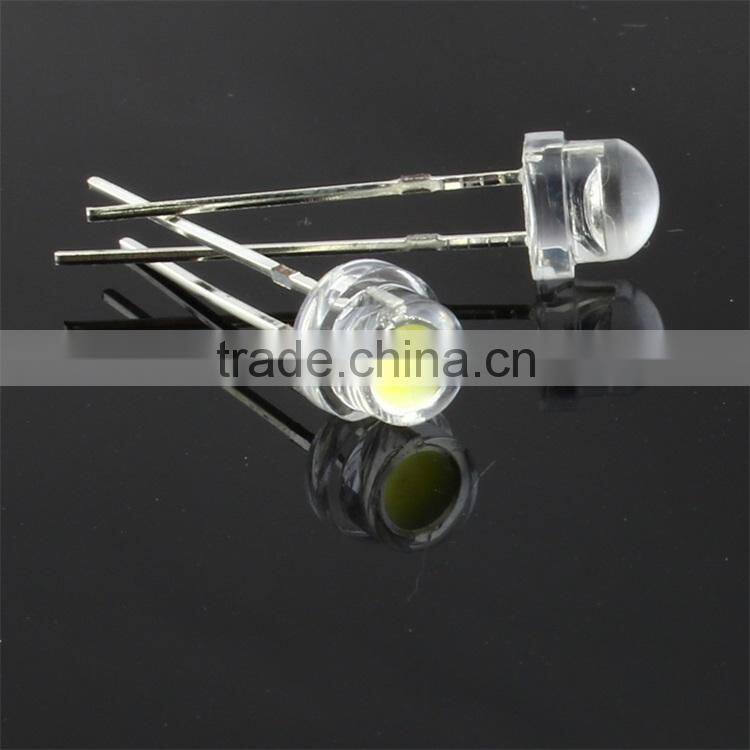

Max Bright 8-9lm 6500-7000K 4.8mm Strawhat LED 0.06W 3500-4000MCD
USD $0.01 - $0.02
/ Piece
1000 Pieces(Min.Order)
- SHANGHAI
- Credit Card PayPal
You May Like
-
70 / 60 degree diffused 5mm oval led with stopper 1500-2000mcd
-
diffused color 5mm yellow Oval Led diode without stopper
-
Through hole 5mm concave LED Diode for led strips
-
5mm Yellow Oval Led lamp with stopper
-
Through hole 5mm concave LED Diode 7lm - 8lm
-
90 / 50 degree Red Oval Led 5mm For outdoor Screen message board
Product Details
| Model Number | TDS-5013 | Chip Material | InGaN | |
| Emitting Color | Natural White | Luminous Intensity | 3500-4000MCD | |
| Luminous Flux(lm) | 30 | Optical Attenuation(%) | 0.0001 | |
| Power | Other, 0.2W, 0.06W 0.2W | Power Dissipation | 0.01 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 2000-15000K | |
| Operating Temperature(℃) | -40, 70 | Storage Temperature(℃) | -60, 45 | |
| Place of Origin | Jiangsu, China | Brand Name | TDS | |
| Certification | CE |
Product Description
Product Description
| Part Number | Chip Material | λD(nm) CCT Typ. | POWER | lm | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 5-6lm | 2000 | 2200 | 3.0 | 3.4 | 120-140 | |
| TDS-5013NW4CN | InGaN | 2700-20000K | 0.06W | 6-7lm | 2400 | 2600 | 3.0 | 3.4 | 120-140 | |
| TDS-5013PW4CN | InGaN | 2700-20000K | 0.06W | 7-8lm | 2800 | 3000 | 3.0 | 3.4 | 120-140 | |
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 8-9lm | 3200 | 3500 | 3.0 | 3.4 | 120-140 | |
| TDS-5013HR2CN | InGaN | 620-630NM | 0.06W | 4-5lm | 1400 | 1600 | 1.9 | 2.3 | 120-140 | |
| TDS-5013AY3CN | InGaN | 580-595NM | 0.06W | 5-6lm | 2000 | 3000 | 1.9 | 2.3 | 120-140 | |
| TDS-5013RB2CN | InGaN | 450-465NM | 0.06W | 3-4lm | 1200 | 1400 | 3.0 | 4.0 | 120-140 | |
| TDS-5013BG5CN | InGaN | 515-530NM | 0.06W | 5-6lm | 2000 | 3000 | 3.0 | 4.0 | 120-140 | |
The Following is the Data of the 0.2W 5mm Strawhat LED.(60mA 3-3.2V With Bigger Reflector)
| Part Number | Chip Material | λD(nm) CCT Typ. | POWER | lm | IV(mcd)@IF=60mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013NW2CN | InGaN | 2000-15000K | 0.2W | 19-22LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
| TDS-5013NW3CN | InGaN | 2000-15000K | 0.2W | 25-30LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
