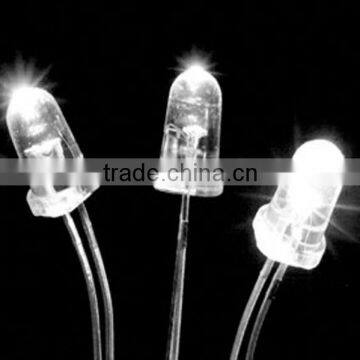

through hole 5mm round Led light 30 degree
- SHANGHAI
- Credit Card PayPal
You May Like
-
625-630nm Red 5mm Oval Led light without stopper
-
Pure White strawhat LED 5mm diode 140 - 160 degree beam angle
-
110 / 60 degree 5mm White Oval LED without stopper
-
Yellow Green 5mm oval led diode with stopper
-
5mm Through hole concave LED Diode 8lm - 9lm
-
transparent 6100K white 5mm oval led diode with stopper
Product Details
| Model Number | TDS-5011 Series | Chip Material | InGaN | |
| Emitting Color | Red | Luminous Intensity | 8000-12000MCD | |
| Luminous Flux(lm) | 12-15lm | Optical Attenuation(%) | 0.0005 | |
| Power | Other, 0.06W, 0.06W | Power Dissipation | 0.001 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 620-625-630nm | |
| Operating Temperature(℃) | -20, 80 | Storage Temperature(℃) | -30, 70 | |
| Place of Origin | Jiangsu, China | Brand Name | TDS | |
| Certification | CE |
Product Description
| Part Number | Chip Material | Emitted Color | λD(nm) CCT Typ. | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | ||||||
| TDS-5011JR3CN | AlGaInP | Red | 625-630 | 6000 | 8000 | 1.9 | 2.3 | 15 | |
| TDS-5011KR3CN | AlGaInP | Red | 625-630 | 8000 | 12000 | 1.9 | 2.3 | 15 | |
| TDS-5011LR3CN | AlGaInP | Red | 625-630 | 12000 | 18000 | 1.9 | 2.3 | 15 | |
| TDS-5011GR2CN | AlGaInP | Red | 625-630 | 5000 | 6000 | 1.9 | 2.3 | 45 | |
| TDS-5011GR3CN | AlGaInP | Red | 625-630 | 3000 | 4000 | 1.9 | 2.3 | 60 | |
| TDS-5011GY2CN | AlGaInP | Yellow | 585-590 | 4000 | 6000 | 1.9 | 2.3 | 15 | |
| TDS-5011JY2CN | AlGaInP | Yellow | 592 | 6000 | 8000 | 1.9 | 2.3 | 15 | |
| TDS-5011KY2CN | AlGaInP | Yellow | 592 | 8000 | 12000 | 1.9 | 2.3 | 15 | |
| TDS-5011LY4CN | AlGaInP | Yellow | 592 | 5000 | 6000 | 1.9 | 2.3 | 45 | |
| TDS-5011LY2CN | AlGaInP | Yellow | 592 | 3000 | 4000 | 1.9 | 2.3 | 60 | |
| TDS-5011AM2CN | AlGaInP | Amber | 592 | 8000 | 12000 | 1.9 | 2.3 | 15 | |
| TDS-5011AM2CN | AlGaInP | Amber | 592 | 5000 | 6000 | 1.9 | 2.3 | 60 | |
| TDS-5011EB4CN | InGaN | Blue | 465 | 3000 | 4000 | 3.0 | 3.4 | 15 | |
| TDS-5011GB4CN | InGaN | Blue | 465 | 8000 | 9000 | 3.0 | 3.4 | 15 | |
| TDS-5011GB6CN | InGaN | Blue | 465 | 7000 | 8000 | 3.0 | 3.4 | 45 | |
| TDS-5011GB6CN | InGaN | Blue | 465 | 4000 | 6000 | 3.0 | 3.4 | 60 | |
| TDS-5011TDS4CN | InGaN | Green | 515 | 14000 | 18000 | 3.0 | 3.4 | 15 | |
| TDS-5011QG4CN | InGaN | Green | 515 | 16000 | 18000 | 3.0 | 3.4 | 45 | |
| TDS-5011QG5CN | InGaN | Green | 515 | 14000 | 16000 | 3.0 | 3.4 | 60 | |
| TDS-5011MW4CN | InGaN | Warm White | 2900K | 12000 | 14000 | 3.0 | 3.4 | 15 | |
| TDS-5011OW4CN | InGaN | Warm White | 2900K | 15000 | 18000 | 3.0 | 3.4 | 15 | |
| TDS-5011PW4CN | InGaN | Warm White | 2900K | 16000 | 20000 | 3.0 | 3.4 | 15 | |
| TDS-5011PW7CN | InGaN | Warm White | 2900K | 6000 | 7000 | 3.0 | 3.4 | 45 | |
| TDS-5011MW2CN | InGaN | White | 6500K | 12000 | 14000 | 3.0 | 3.4 | 15 | |
| TDS-5011PW2CN | InGaN | White | 6500K | 18000 | 22000 | 3.0 | 3.4 | 15 | |
| TDS-5011PW8CN | InGaN | White | 6500K | 30000 | 35000 | 3.0 | 3.4 | 15 | |
| TDS-5011TW2CN | InGaN | White | 6500K | 7000 | 8000 | 3.0 | 3.4 | 30 | |
| TDS-5011OW2CN | InGaN | White | 6500K | 4000 | 5000 | 3.0 | 3.4 | 60 | |
| TDS-5011PW2CN | InGaN | White | 6500K | 5000 | 6000 | 3.0 | 3.4 | 45 | |
Plesae contact our salesman for the updated Pirce and Stocks. If we do not have stocks, MOQ will be 10K Pcs.
1. Prices conditions
Price can be FOB, CIF ,EXW, or With taxes.
2. What will be the delivery time ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
3. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.
4. Could you please send me the sample ? Then i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
5. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
6. How will invoice be generated ?
Invoice can be generated with formal contract with company seals
7.payment:
T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque
If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
