Transparent 5mm Flat Top Led Diode
                            US$ 0.01 - 0.02
                                                            / Piece


                                                1000 Pieces(Min. Order)

                    - SHANGHAI
 - Credit Card PayPal

You May Like
Product Details
| Model Number | TDS-6018CO Series | Chip Material | InGaN | |
| Emitting Color | Other, Warm/pure/cool White | Luminous Intensity | 2000-2200MCD | |
| Luminous Flux(lm) | 8-9lm | Optical Attenuation(%) | 0.0005 | |
| Power | Other, 0.06W, 0.06W | Power Dissipation | 0.001 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 2000-25000K | |
| Operating Temperature(℃) | -20, 80 | Storage Temperature(℃) | -30, 70 | |
| Place of Origin | Jiangsu, China | Brand Name | TDS | |
| Certification | CE |
Product Description
Product Description
| Part Number | Emitted Color | λD(nm) CCT Typ. | Lens  Color  | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½  | ||||
| Min. | Max. | Min. | Max. | |||||||
| TDS-6018CO1EN | Red | 625 | Water Clear | 400 | 500 | 1.9 | 2.3 | 120 | ||
| TDS-6018CO2EN | Yellow | 592 | Water Clear | 400 | 500 | 1.9 | 2.3 | 120 | ||
| TDS-6018CO3EN | Blue | 465 | Water Clear | 300 | 400 | 3.0 | 3.4 | 120 | ||
| TDS-6018CO4EN | Green | 515 | Water Clear | 600 | 800 | 3.0 | 3.4 | 120 | ||
| TDS-6018CO5EN | pink | // | Water Clear | 500 | 600 | 3.0 | 3.4 | 120 | ||
| TDS-6018CO6EN | Warm White | 2900K | Water Clear | 1500 | 1700 | 3.0 | 3.4 | 120 | ||
| TDS-6018CO7EN | White | 6500K | Water Clear | 1700 | 2000 | 3.0 | 3.4 | 120 | ||

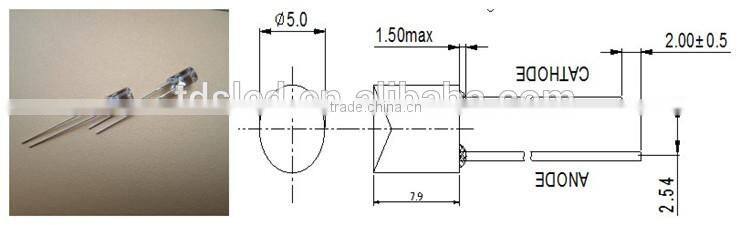

The Led Body can be 7.9mm hight / 6.8mm height(short body)
