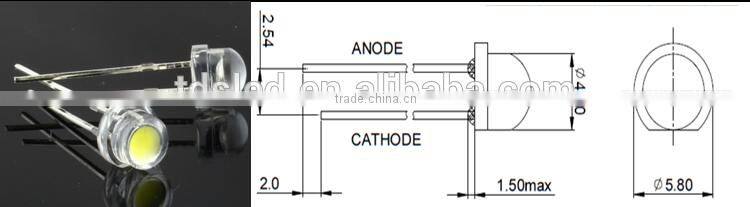

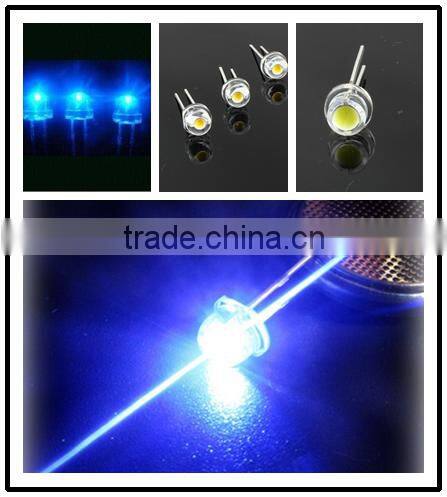

0.2W 5mm Strawhat Dip Power Led Diode
US$ 0.01 - 0.02
/ Piece
1000 Pieces(Min. Order)
- SHANGHAI
- Credit Card PayPal
You May Like
-
Through Hole 5mm Led Diode With 15 / 20 / 30 Degree Viewing
-
5mm Oval Led in Red / Green / Blue / Pink / Yellow Green / White Color
-
Pure White 0.2W 4.8mm Strawhat LED 22-25lm 60mA With 160 Degree Reflector
-
5mm Green Concave Led Diode 6.8mm Height
-
70 / 40 Degree Green 5mm Oval Led Without Stopper
-
5mm Oval Led Diode in Red / Green / Blue / Pink / Yellow Green / White Color
Product Details
| Model Number | TDS-5013 Series | Chip Material | InGaN | |
| Emitting Color | Yellow | Luminous Intensity | 2000-3000MCD | |
| Luminous Flux(lm) | 5-6lm | Optical Attenuation(%) | 0.0005 | |
| Power | Other, 0.06W, 0.06W | Power Dissipation | 0.001 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 585-590-595nm | |
| Operating Temperature(℃) | -20, 80 | Storage Temperature(℃) | -30, 70 | |
| Place of Origin | Jiangsu, China | Brand Name | TDS | |
| Certification | CE |
Product Description
Product Description
| Part Number | Chip Material | λD(nm) CCT Typ. | POWER | lm | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 5-6lm | 2000 | 2200 | 3.0 | 3.4 | 120-140 | |
| TDS-5013NW4CN | InGaN | 2700-20000K | 0.06W | 6-7lm | 2400 | 2600 | 3.0 | 3.4 | 120-140 | |
| TDS-5013PW4CN | InGaN | 2700-20000K | 0.06W | 7-8lm | 2800 | 3000 | 3.0 | 3.4 | 120-140 | |
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 8-9lm | 3200 | 3500 | 3.0 | 3.4 | 120-140 | |
| TDS-5013HR2CN | InGaN | 620-630NM | 0.06W | 4-5lm | 1400 | 1600 | 1.9 | 2.3 | 120-140 | |
| TDS-5013AY3CN | InGaN | 580-595NM | 0.06W | 5-6lm | 2000 | 3000 | 1.9 | 2.3 | 120-140 | |
| TDS-5013RB2CN | InGaN | 450-465NM | 0.06W | 3-4lm | 1200 | 1400 | 3.0 | 4.0 | 120-140 | |
| TDS-5013BG5CN | InGaN | 515-530NM | 0.06W | 5-6lm | 2000 | 3000 | 3.0 | 4.0 | 120-140 | |

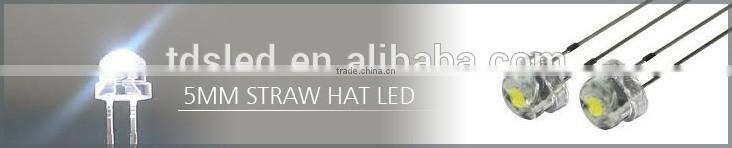

The Following is the Data of the 0.2W 5mm Strawhat LED.(60mA 3-3.2V With Bigger Reflector)
| Part Number | Chip Material | λD(nm) CCT Typ. | POWER | lm | IV(mcd)@IF=60mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013NW2CN | InGaN | 2000-15000K | 0.2W | 19-22LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
| TDS-5013NW3CN | InGaN | 2000-15000K | 0.2W | 25-30LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
