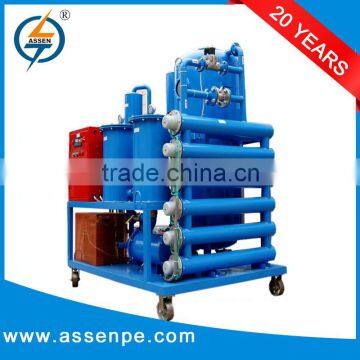

Double-Stage transformer oil regeneration equipment
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
-
High vacuum Transformer Oil Dehydration Plant
-
water removal completely transformer oil purifier system
-
Ultra voltage transformer oil filtration services machine series ZYD
-
Multi-stage vacuum oil filtration plant, filtration of transformer oil, dielectric oil
-
Stainess Steel type transformer oil purification machine
-
portable oil filtration systems,ZYD vacuum transformer oil filtration plant
Product Details
Condition | New | Flow | 1800LPH | |
Working Pressure | 0.5 | Place of Origin | Chongqing, China | |
Brand Name | ASSEN | Model Number | ZYD-30 | |
Usage | Transformer Oil | Voltage | 380 OR AS CUSTOMER REQUIRED | |
Power(W) | 45kw | Dimension(L*W*H) | 1750*1100*1650MM | |
Weight | 800KG | Certification | CE ISO | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Double-Stage transformer oil regeneration equipment
ZYD Double-Stage Transformer oil regeneration equipment will be designed for high vacuum & low temperature of oil for achieving required results. Our ZYD Transformer Oil Regeneration equipments are used to remove impurities from transformer and switchgear oil such as moisture, dirt, air and other gases. This is a low temperature and high vacuum principle based equipment as per the International Standards 6034 (1989) and its latest revision. We manufacture plants of variable capacities of 600 to 18,000 lph which can be customized to special capacities if required by the clients.
1. Two pumps: Vacuum pump and booster pump
2. Three-stage filter system
3. Z-shape Heater to make the heating uniformity
4. Installing oil-level floating ball and double-infrared liquid level automatic controller to control the oil level
5. Foam sensor to avoid oil leaking
6. Temperature Controller to protect the machine
7. Suitable oil filtration machine for high voltage transformer
8. Large filtration area, high capacity of holding impurities
9. Two vacuum separator to increase separating size and time and ensure the drying degree and improve dielectric strength which is higher than 75 KV.
10. Doing online oil purification of substations over 110 KV.
11. Independent function of vacuum oil filling and drying.
12. Duplex stereo flash evaporation technology
13. Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, this oil filter will be power off automatically.
14. Saving energy and time
Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels.
ASSEN ZYD Transformer oil regeneration equipment designed to remove contaminants (particulate, water, gasses, acids, etc.). We are a design, engineering and manufacturing company capable of application customization for best solutions.
Transformer oil regeneration equipment's Technical Data:
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 | |
Working vacuum | MPa | 0.08 ~ 0.099 | |||||||
Working Pressure | MPa | ≤0.3 | |||||||
Breakdown Voltage | KV | ≥75 | |||||||
Water Content | PPM | ≤3 | |||||||
Gas Content | % | ≤0.01 | |||||||
Impurity Size | μ | ≤5 | |||||||
Temperature Range | °C | 20 ~ 80 | |||||||
Power |
| Three Phase 50HZ380V(as per the customer's requirements) | |||||||
Working Noise | dB(A) | 75 | 75 | 75 | 80 | 80 | 80 | 80 | |
Heating Power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | |
Total Power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Weight | kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | |
Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |
Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 |
Structure Chart:
The oil technical data after treatment:
- Gas content less than 0.1%
- Impurity size less than 1μm without free carbon
- Oil dielectric strength (breakdown voltage) more than 75KV
- Acidity value less than 0.01 mgKOH/g
- Dielectric loss factors at 90°C less than 0.001
Transformer oil regeneration equipment's Advantage:
Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machines working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 75 KV. It is very suitable for the large electric & insulation equipments.
- Your inquiry related to our products or prices will be replied in 24 hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
- OEM is available for Anern Products.
- Protection of your sales area, ideas of design and all your private information.
Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
