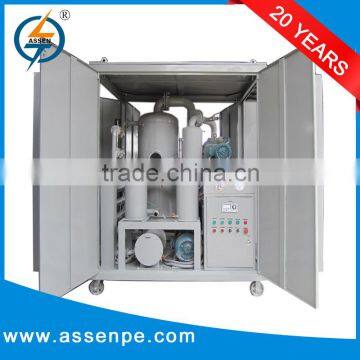

Excellent quality type Transformer Oil Purification system unit

ZYD series Excellent quality type vacuum transformer oil purification system unit is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers. Equipped with regenerators, ASSEN transformer oil purification equipments can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 75KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.

1.To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.

2.Enhance the value of breakdown voltage greatly.

3.Easy handling and maintenance.

4.Inject oil into the transformers

5.Online work

6.Lower maintenance and replacement expenses

7.High efficiency and effectiveness

8.Available in mobile or stationary options.

9.Small size, light weight, low noise

10.    Various sizes and configurations (alloy shield) available.

ZYD Transformer oil purification system can remove water and gas in the insulating oil under high temperature and vacuity. it use more precise filter system to filter out impurities(filtering precision: 1-3um).  It ia mainly used for purification of oil for transformer with voltage higher than 220kv. It can increase oil breakdown voltage by at least 40kv.They are suitable for oil treatment, vacuum oil injection, and cylic hot-oil drying in the installation and maintenance of big transformers.

Oil Purification system's Technical Data:

Structure Chart:

The oil technical data after treatment:

• Gas content less than 0.1%
• Impurity size less than 1μm without free carbon
• Oil dielectric strength (breakdown voltage) more than 75KV
• Acidity value less than 0.01 mgKOH/g
• Dielectric loss factors at 90°C less than 0.001

Oil Purification system's Advantage:
Comparing with the single-stage type, this series adopts the double-stages vacuum system, which immensely raises the machine's working vacuum degree, so it can dewater, degas and remove particulate impurities much more efficiently. It allows the transformer to be in service while impurities are effectively removed.

• Your inquiry related to our products or prices will be replied in 24 hours.
• Well-trained and experienced staffs to answer all your enquires in fluent English.
• Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
• OEM is available for Anern Products.
• Protection of your sales area, ideas of design and all your private information.

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
