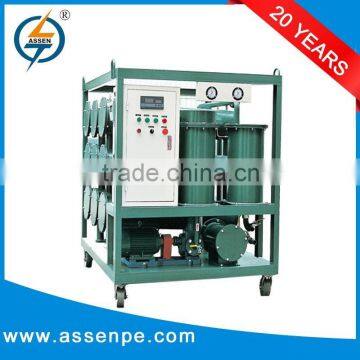

oil treatment machine for recycling used transformer oil,insulating oil

Dielectric oil used in transformers is effected by moisture, particles and dissolved gases,the functions of insulation and dielectric strength will decrease. ZYD high vacuum transformer oil treatment can keep oil absolutely drying and clean by removing water,gas,solid,dust etc, and improving the insulating oil performance index. The vacuum transformer oil purifer ensure efficient performance of transformers and reduce ecological disposal problems.ZYD transformer oil treatment is skid mounted,self-contained and equips controlled full state operational panel for fully automatical operation.

1.Operational control can be switch- andrelay-logic or PLC with touchscreenOnline test and monitoring equipment

2.Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.

3.Precise filtration system,high-quality filter element,multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.

4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies

5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

7.Adopt interlocked protective system,which connect oil pump,heater and liquid level sensor,avoiding blank heating,blank pumping.

• Transformer is one of the main asset in the electrical power industry which needs to be maintained for guaranteed uninterrupted power transmission in order to get assured revenue benefits.
• Transformer life mainly depends on the quality of oil volume it contains.
• Transformer oil conditioning may also include to some extent improving the acidity of the oil.
• A good oil purification system is able to deliver filtered oil with parameters as per the standard specification.

oil treatment machine'sTechnical Data:

Structure Chart:


The oil technical data after treatment:

• Gas content less than 0.1%
• Impurity size less than 1μm without free carbon
• Oil dielectric strength (breakdown voltage) more than 75KV
• Acidity value less than 0.01 mgKOH/g
• Dielectric loss factors at 90°C less than 0.001

oil treatment machine's Advantage:

Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machines working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 75 KV. It is very suitable for the large electric & insulation equipments.

• Your inquiry related to our products or prices will be replied in 24 hours.
• Well-trained and experienced staffs to answer all your enquires in fluent English.
• Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
• OEM is available for Anern Products.
• Protection of your sales area, ideas of design and all your private information.

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.

Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams

Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.

Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
