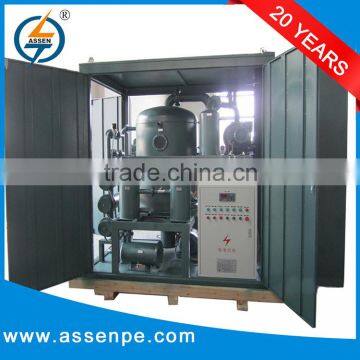

Environmental friendly transformer oil recycling and oil recovery system

Application:

ZYD series transformer oil recovery system is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers. Equipped with regenerators, ASSEN transformer oil recovery system equipments can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 75KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.

Features:

1.A capability of reducing moisture content from 50ppm to 3ppm moisture and 12% gas content to less than 0.1% by volume. 98% of particulate matter will also be removed.
2. Double-Stage vacuum system,strong power of vacuum evacuating,ultimate vacuum value no more than 5Pa
3. Duplex-Stereo film evaporation technology,combined with unique and advanced dewatering,degassing components,can rapidly and effectively separate water, gas,from oil.
4. An advanced fully automatic temperature controlling system,liquid-level controlling system,defoaming controlling system,pressure protecting system and excellent configuration can ensure operation of the equipment with high performance
5. Online work,allowing separated operation of manual operators from machine with lamps indicating the condition for operation.

6 It is humanization design with low noise,deep purification and long time free maintenance to save cost from the running process.

transformer oil recovery system's technical parameters

transformer oil recovery system

Performance:

In a single pass through the purifier at a full flow rate:

Water Removal:  From 50 ppm down to less than 5 ppm in a single pass & down to 3 ppm after two passes. (According to the PPM Tester)

Gas Removal:  From fully saturated with air (10% to 12% by volume) down to less than 0.1% by volume.

Particulate Matter Removal:  98% of particles over 0.5mm or over 1 mm or over 5mm at customers preference.

Dielectric Strength:  Improve dielectric strength up to 75-80KV for New oil.

Chongqing Assen Power Equipment Co.,LTD , which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams

Our Product:   Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, transformer oil recovery system  , Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.

Our Service:   special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.

ASSEN  warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of  twenty (20) months from date of shipment or  eighteen (18) months after the start-up of the system. ASSEN's obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.

1. We customlize the machine as your requirements.
2. We have more than 10 years export experience.
3. We offer our customers high quality products at competitive price.
4. We offer our customers excellent after-sales service.
5. We are not satisfied until our customers are satisfied.
